Home >> Saturn Truck >> 2006 >> RELAY AWD V6-3.5L VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C300 - C399 >> C360

C360

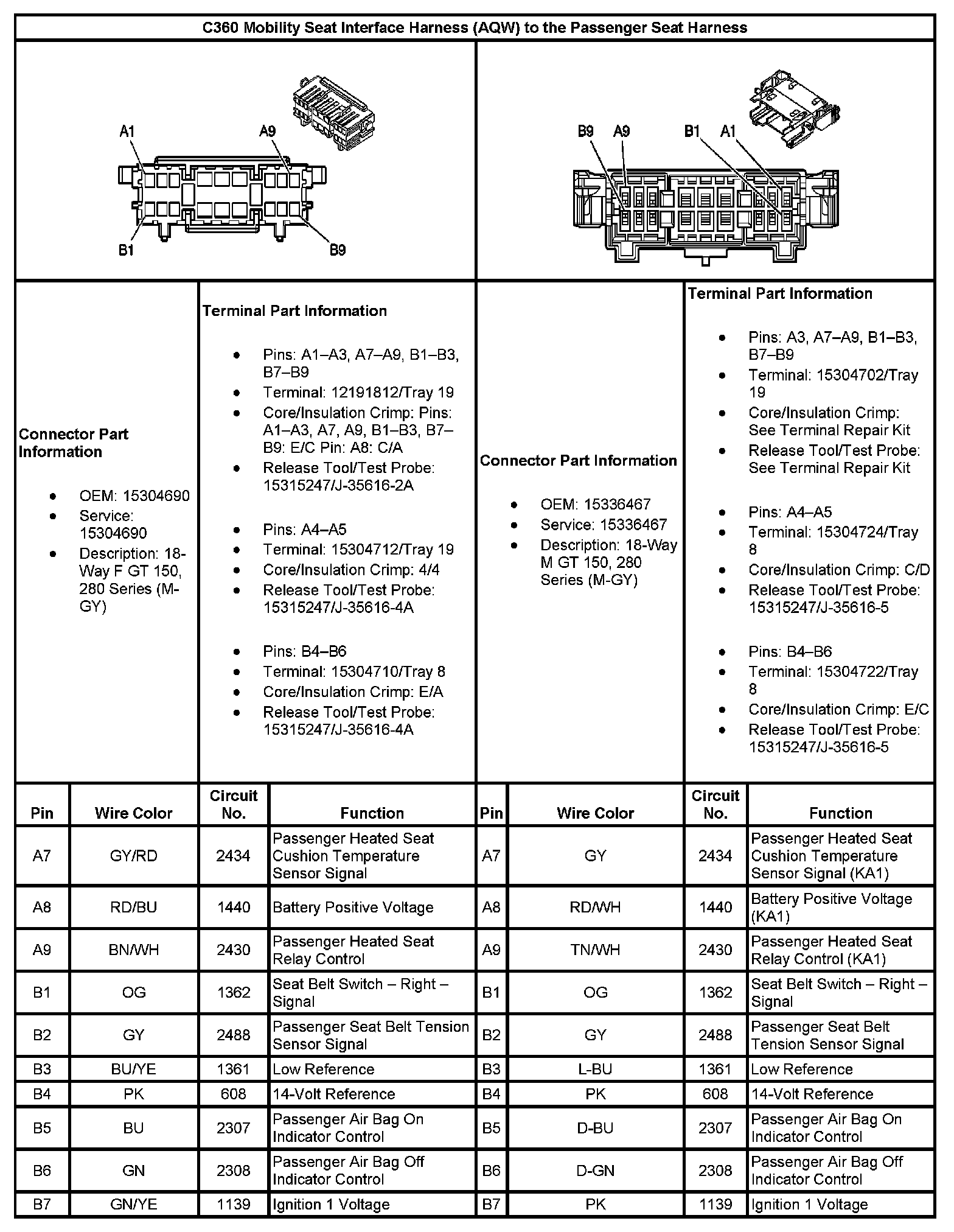

C360 Mobility Seat Interface Harness (With RPO Code AQW) To The Passenger Seat Harness (Part 1):

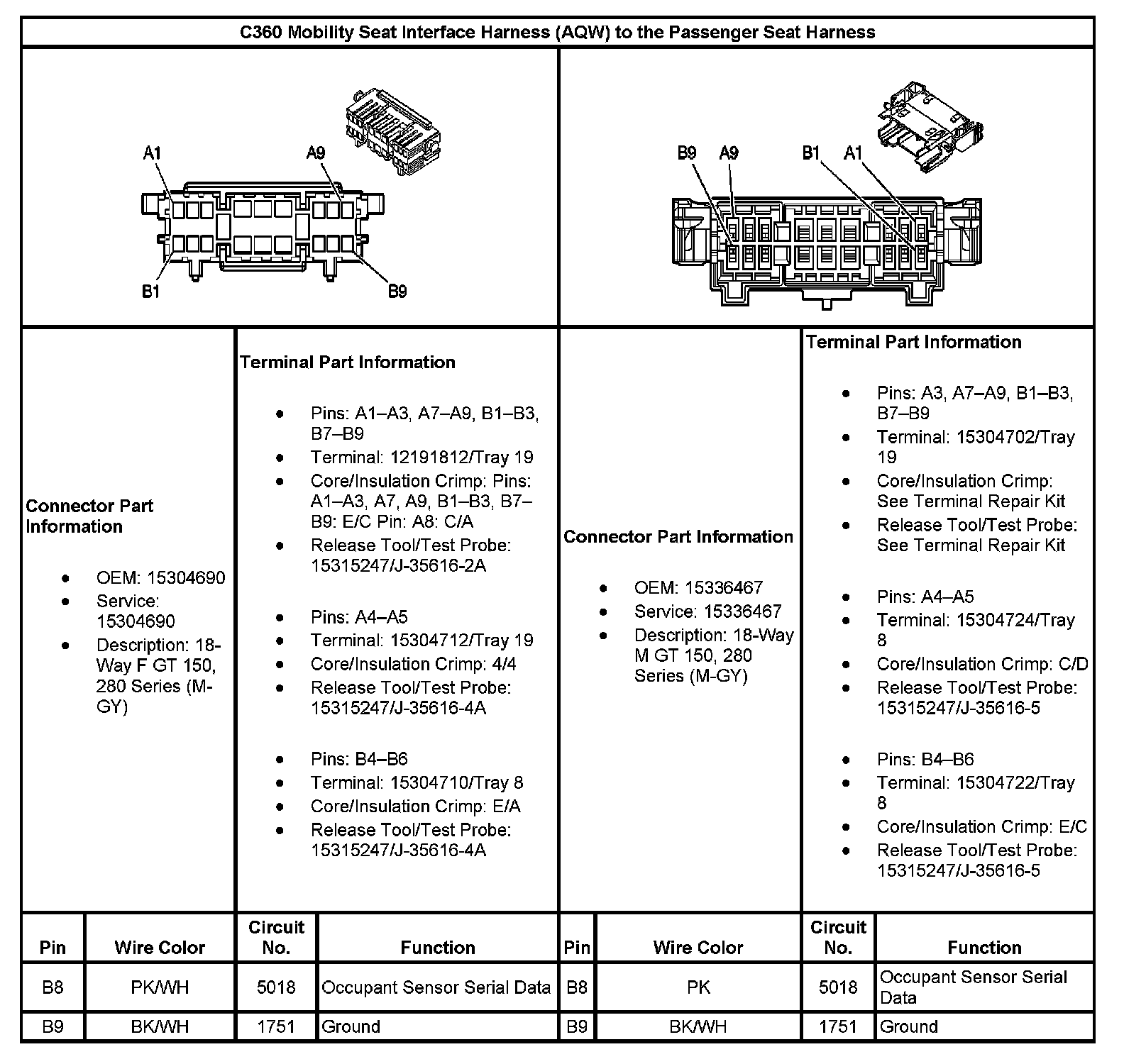

C360 Mobility Seat Interface Harness (With RPO Code AQW) To The Passenger Seat Harness (Part 2):

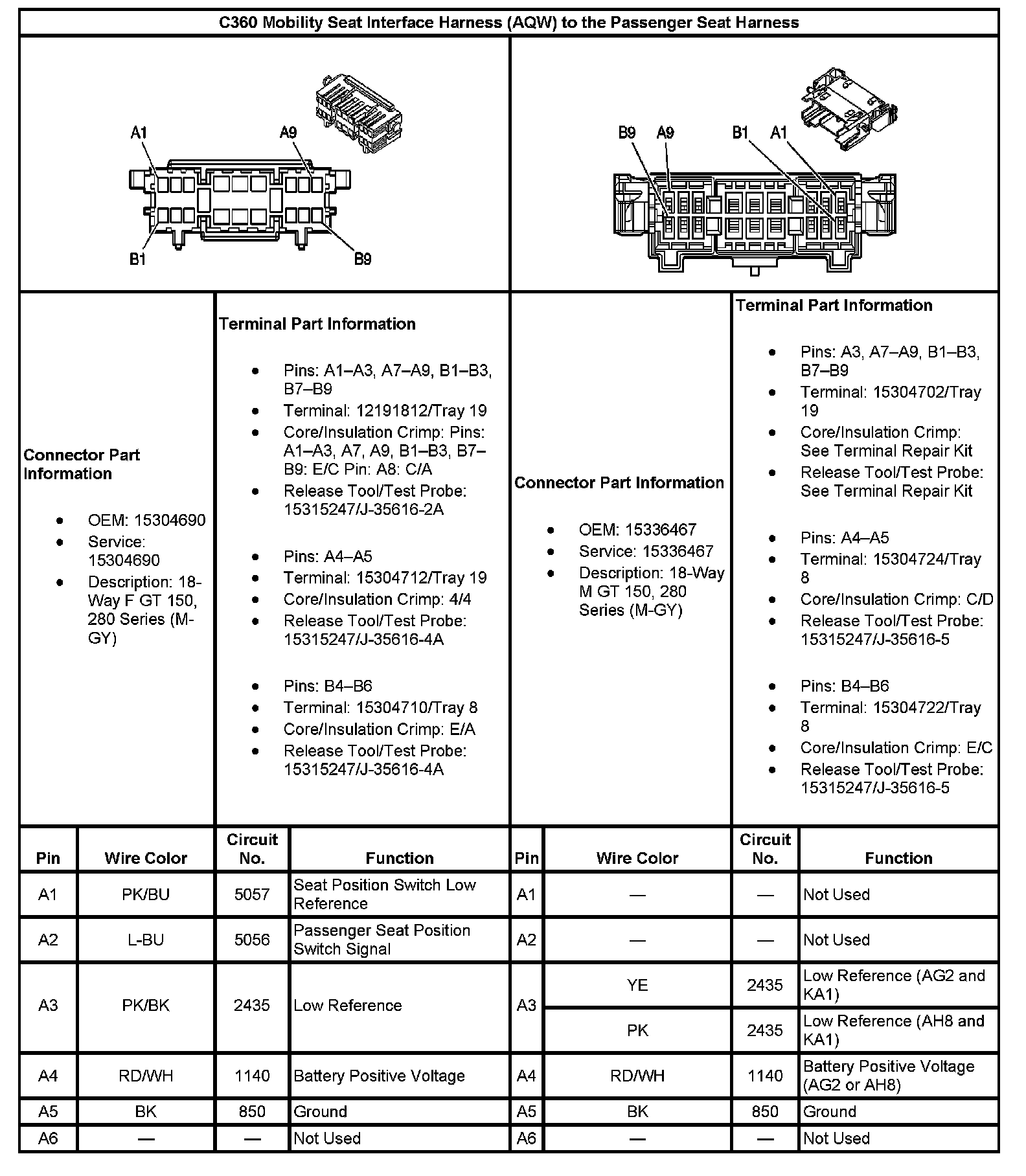

C360 Mobility Seat Interface Harness (With RPO Code AQW) To The Passenger Seat Harness (Part 3):
