C314

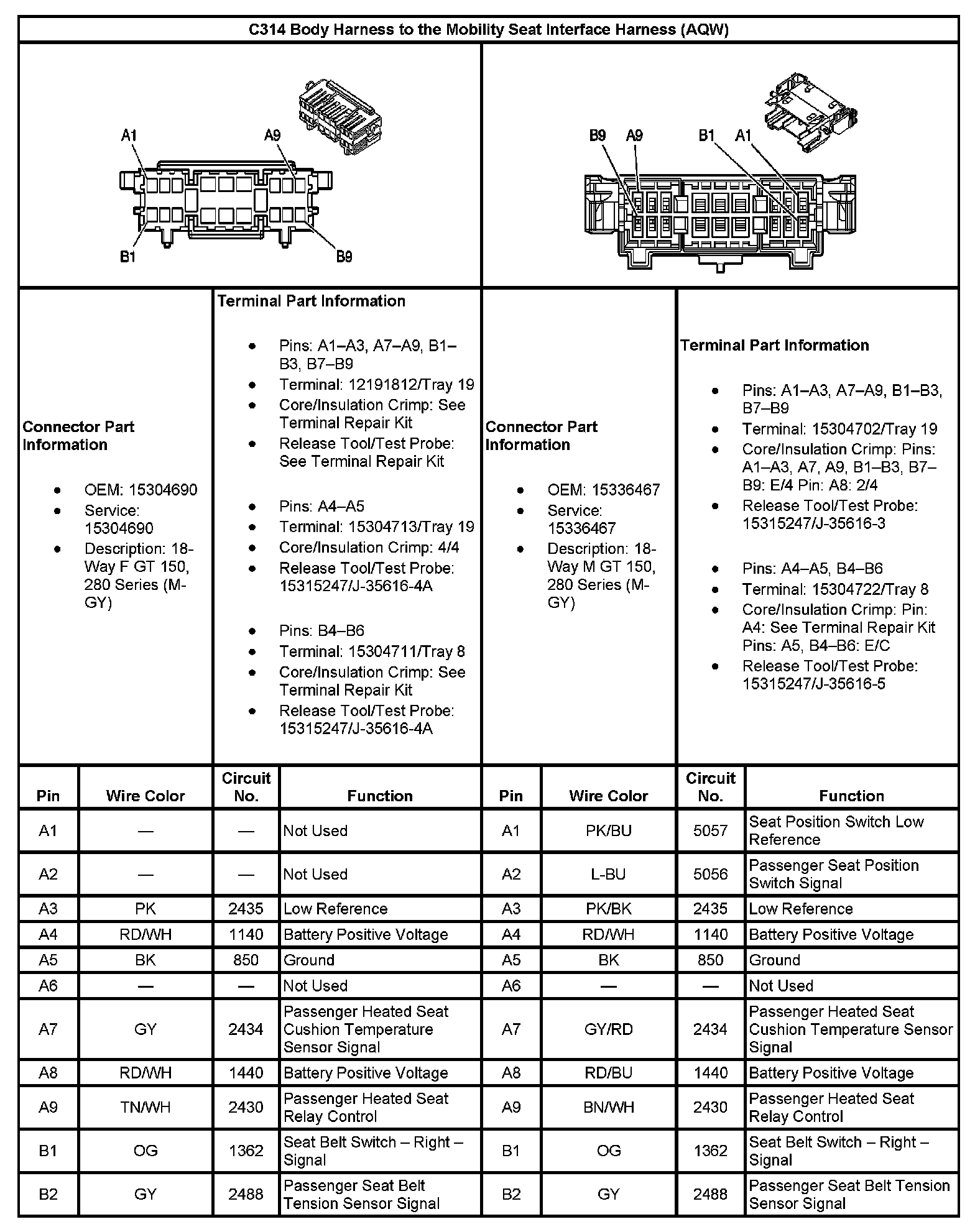

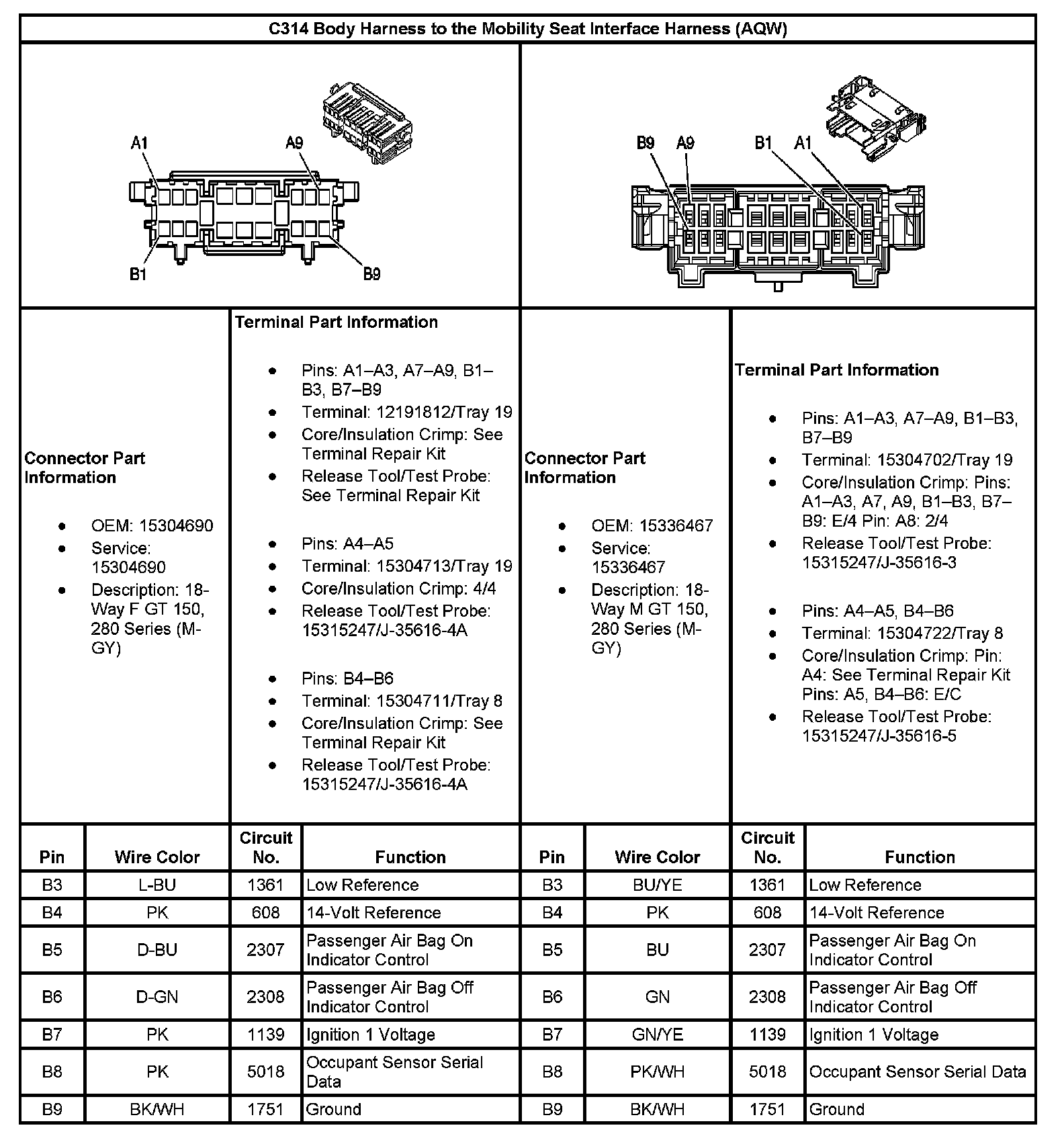

C314 Body Harness To The Mobility Seat Interface Harness (With RPO Code AQW) (Part 1):




C314 Body Harness To The Mobility Seat Interface Harness (With RPO Code AQW) (Part 2):

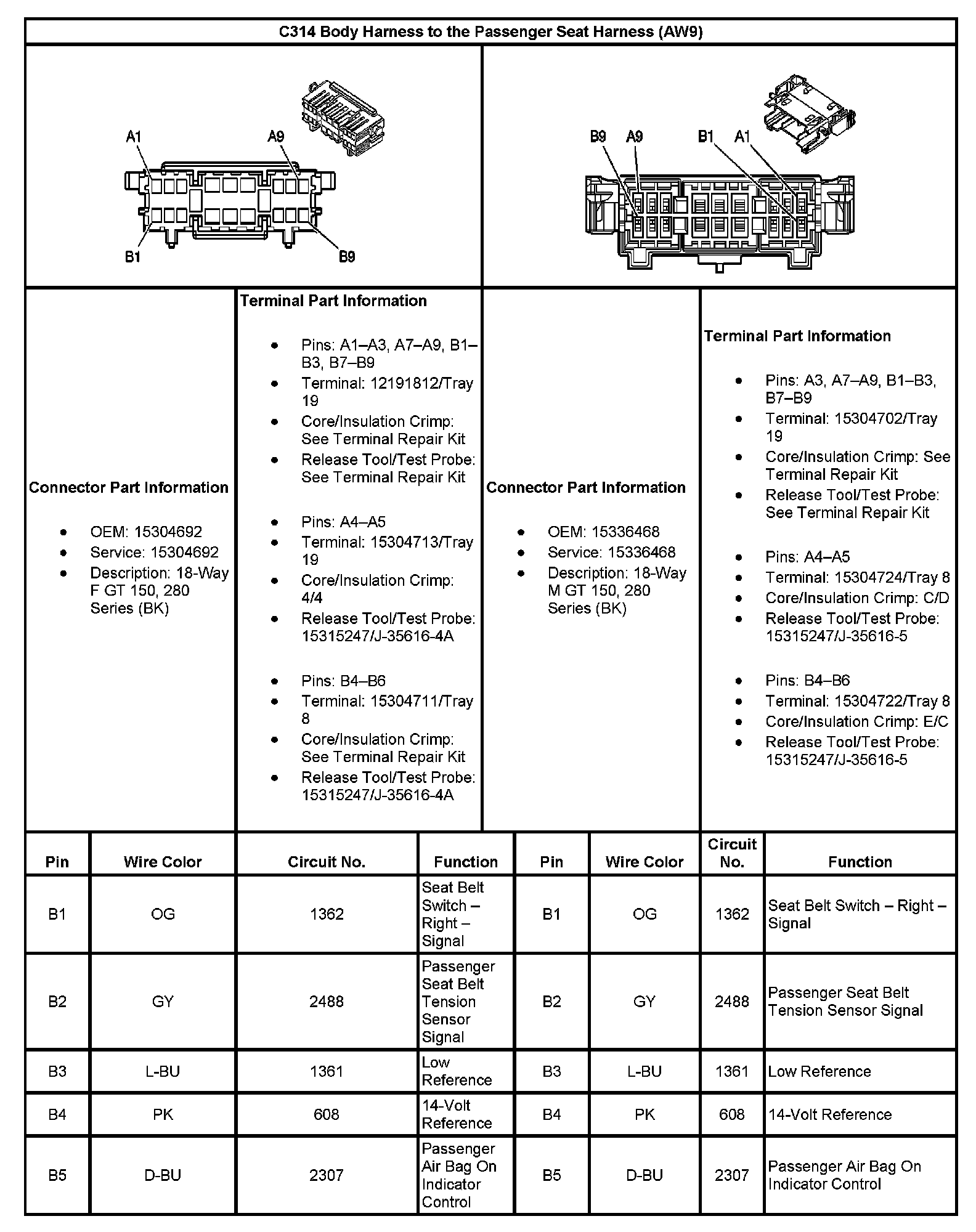

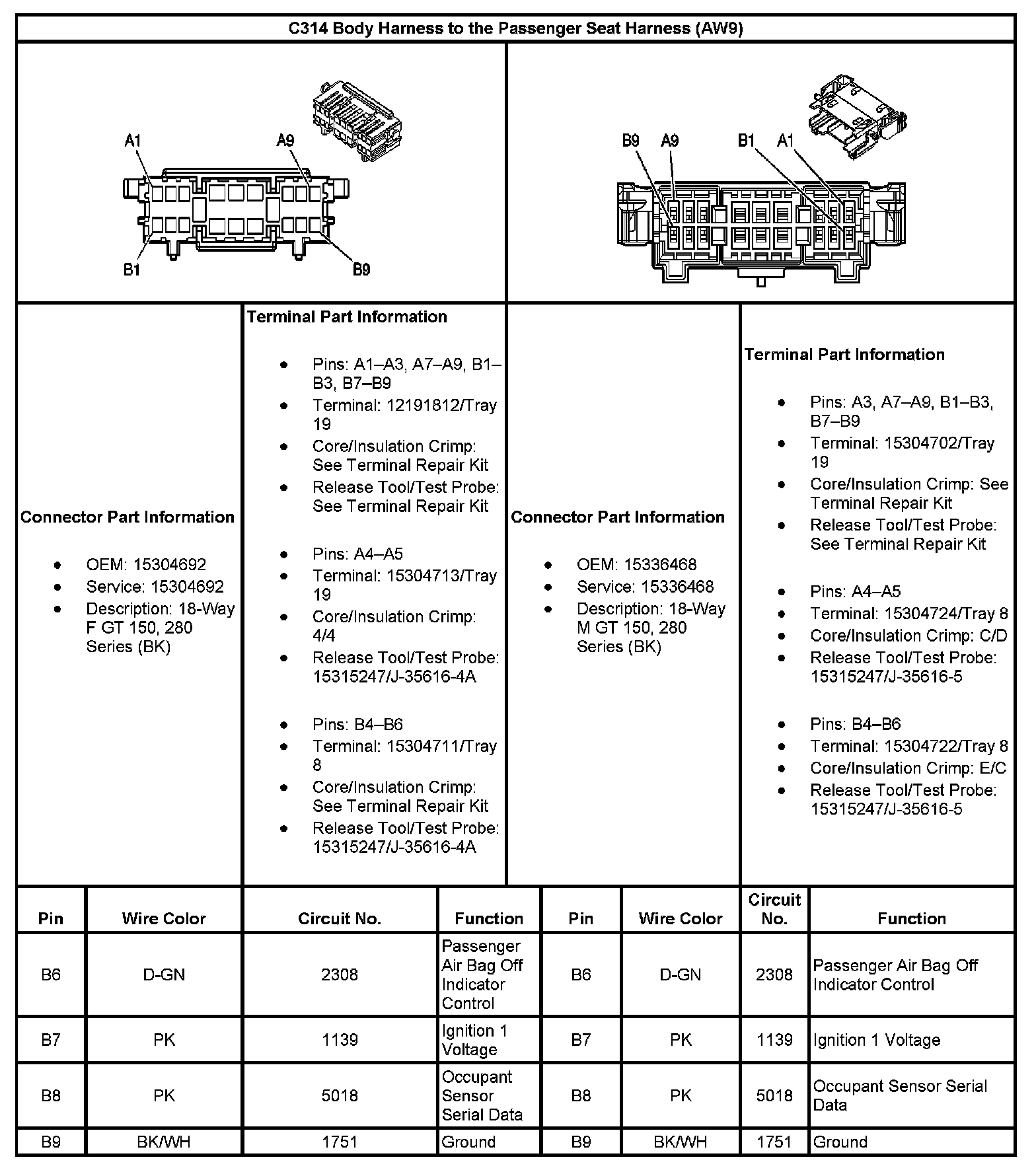

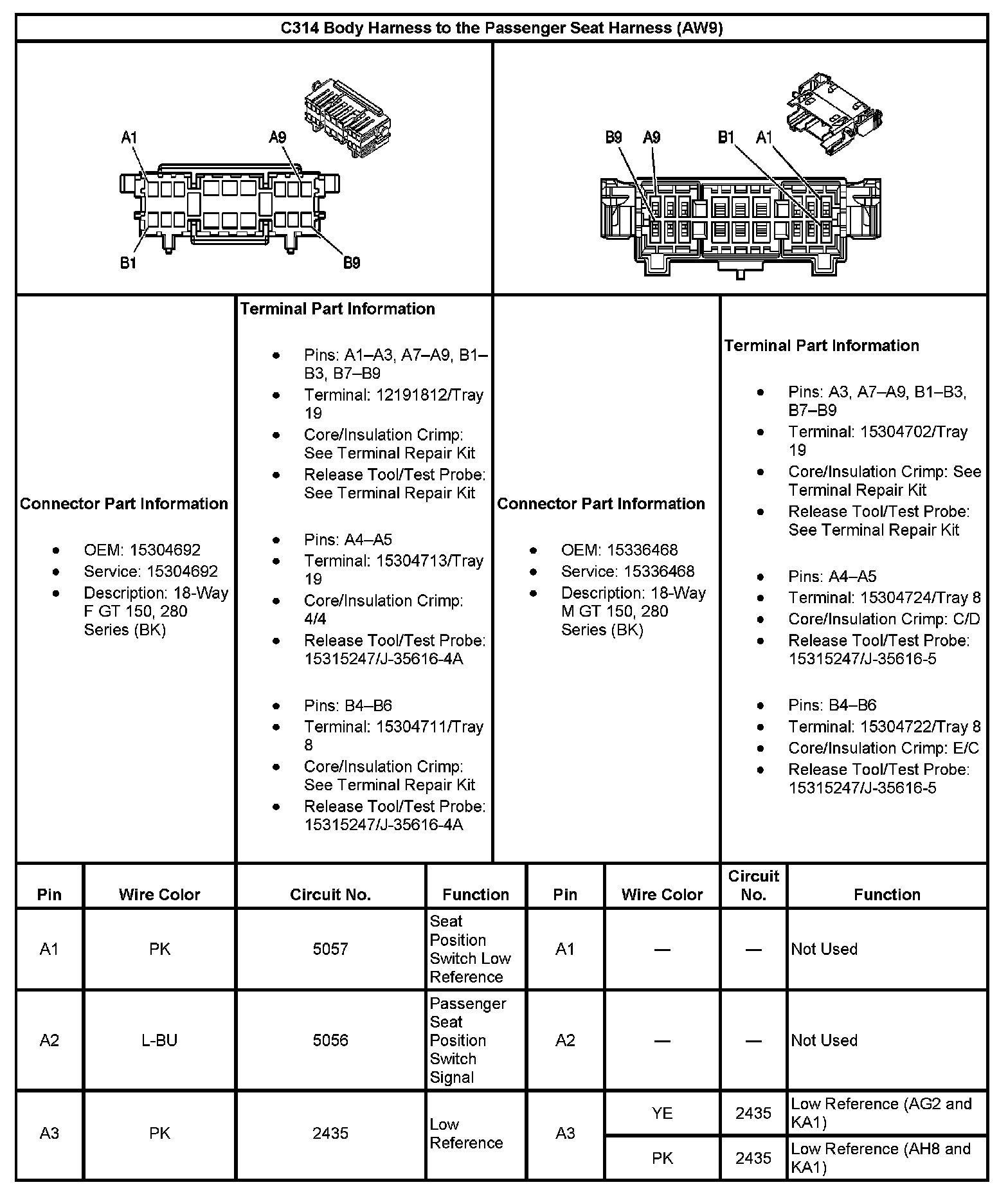

C314 Body Harness To The Passenger Seat Harness (With RPO Code AW9) (Part 1):




C314 Body Harness To The Passenger Seat Harness (With RPO Code AW9) (Part 2):




C314 Body Harness To The Passenger Seat Harness (With RPO Code AW9) (Part 3):




C314 Body Harness To The Passenger Seat Harness (With RPO Code AW9) (Part 4):

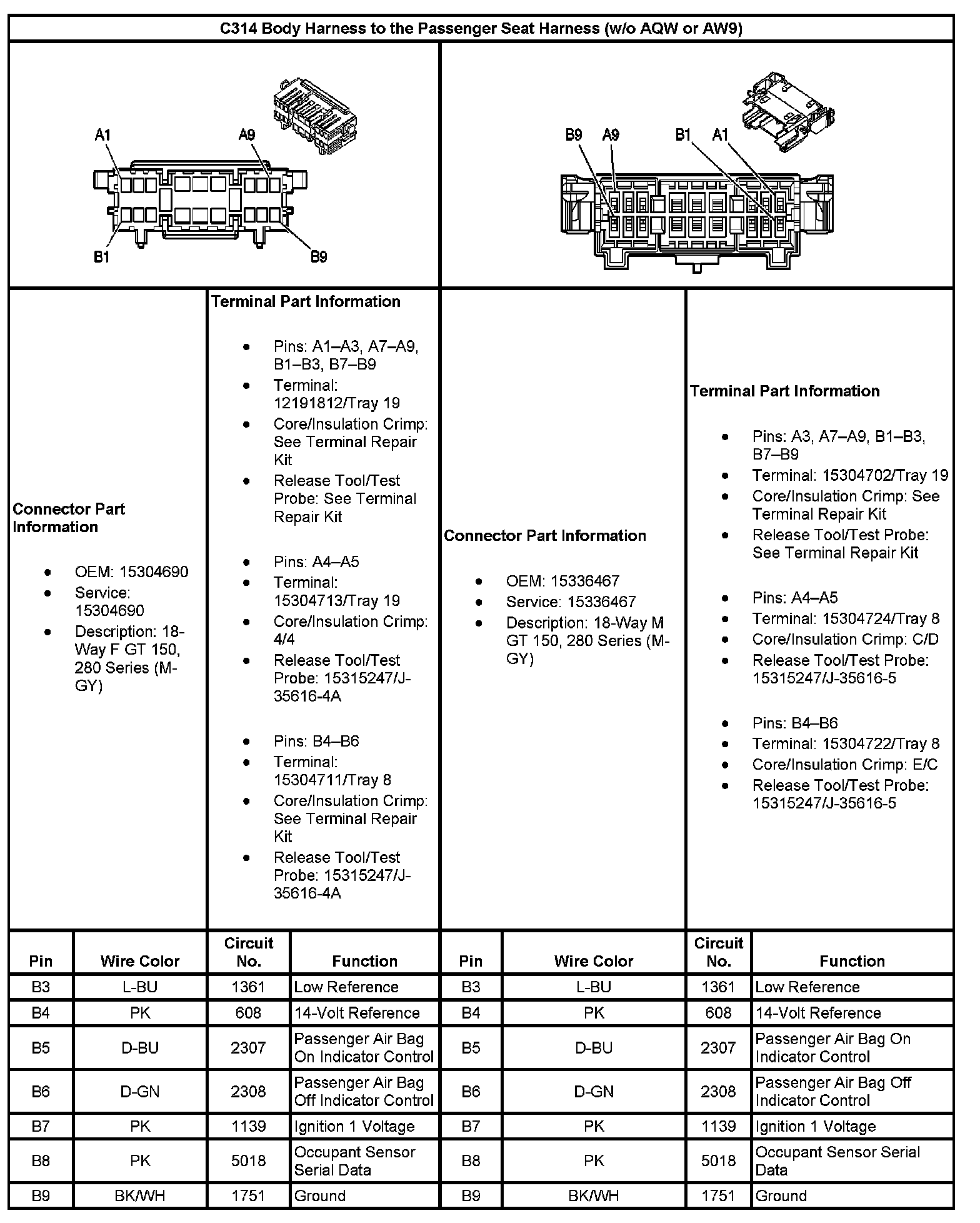

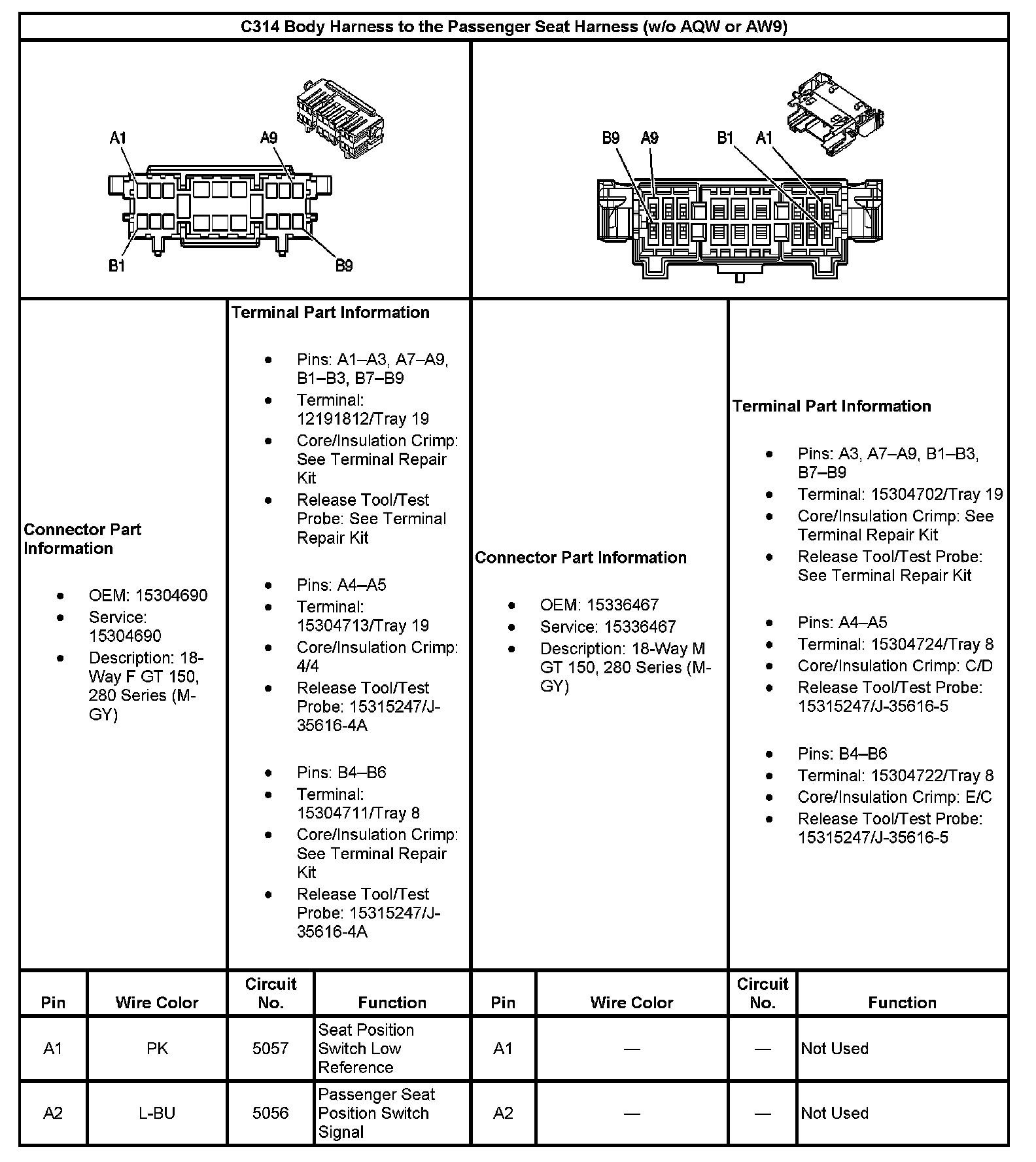

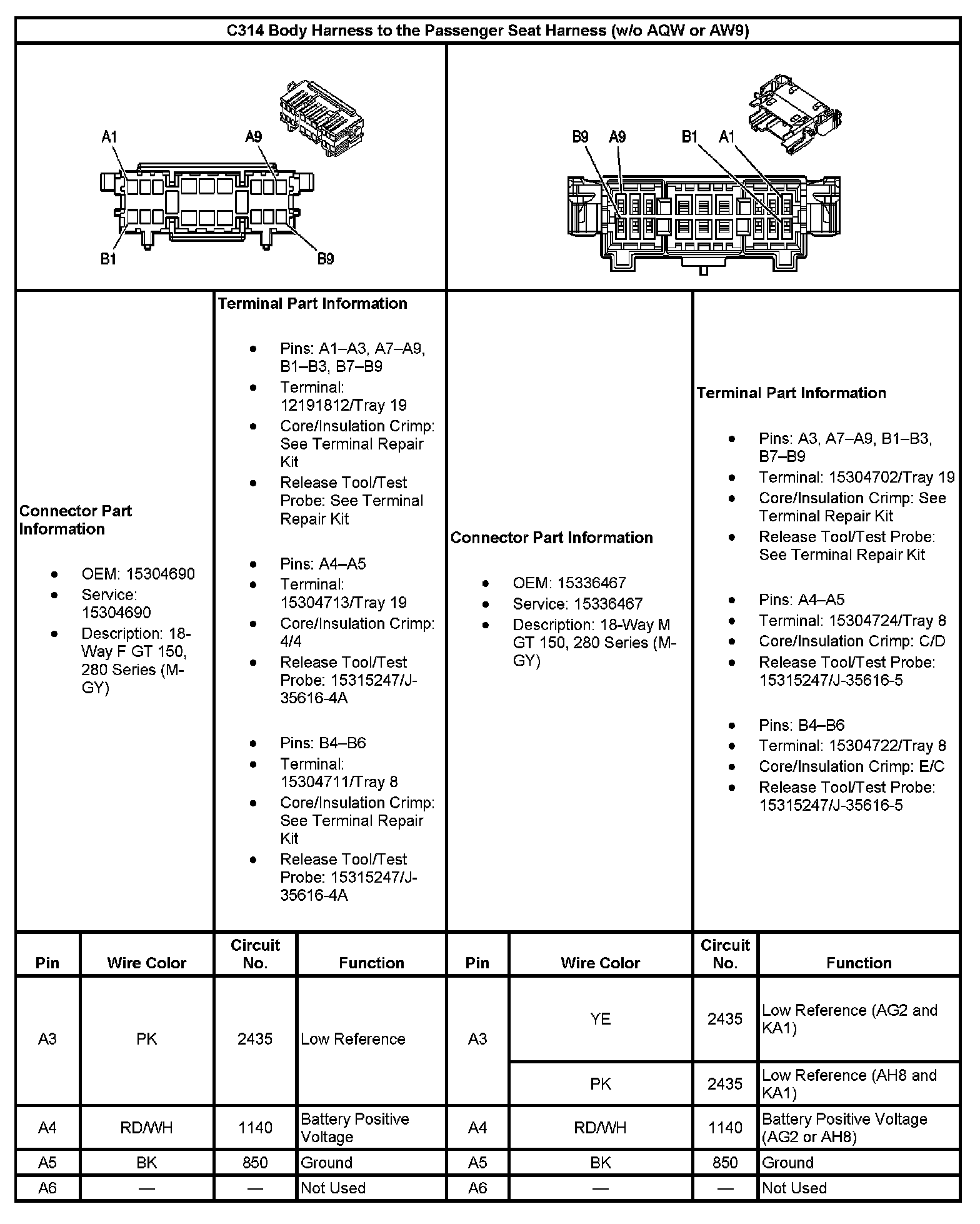

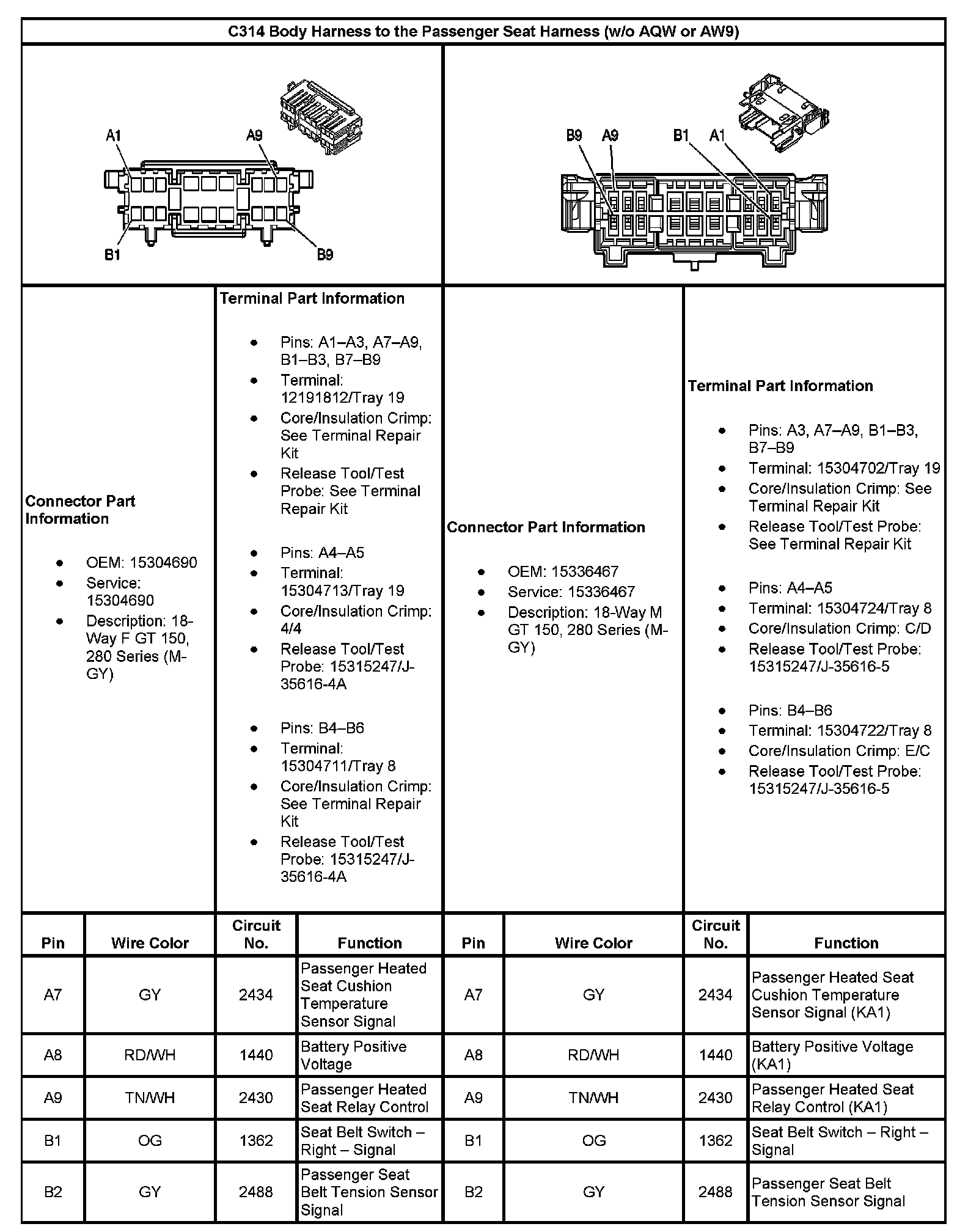

C314 Body Harness To The Passenger Seat Harness (Without RPO Code AQW Or AW9) (Part 1):




C314 Body Harness To The Passenger Seat Harness (Without RPO Code AQW Or AW9) (Part 2):




C314 Body Harness To The Passenger Seat Harness (Without RPO Code AQW Or AW9) (Part 3):




C314 Body Harness To The Passenger Seat Harness (Without RPO Code AQW Or AW9) (Part 4):
