Home
>>
Saturn Truck
>>
2006
>>
RELAY AWD V6-3.5L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C105
C105

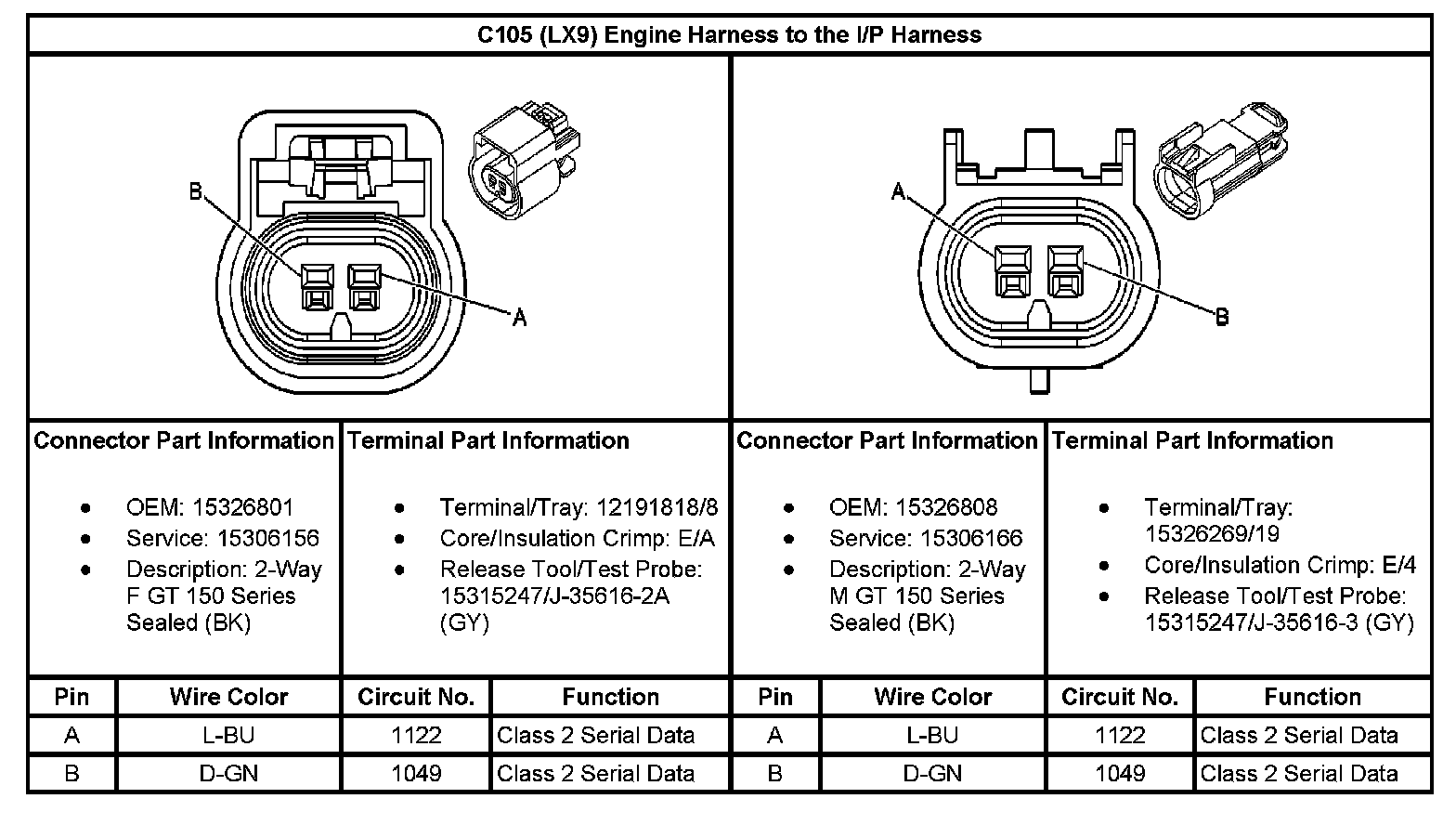

C105 (LX9) Engine Harness To The I/P Harness:
