Trim Panel Replacement - Rear Quarter - Left

TRIM PANEL REPLACEMENT - REAR QUARTER - LEFT

TOOLS REQUIRED
J 38778 Door Trim Pad Clip Remover

REMOVAL PROCEDURE
1. Remove the rear seats.
2. Remove the rear upper finish panel trim.
3. Remove the rear upper finish panel trim.




4. Remove the rear seat belt escutcheons.
5. Remove the rear seat belt anchor retainer bolts.
6. Remove the upper cargo net retainers.
7. Remove the liftgate sill plate.

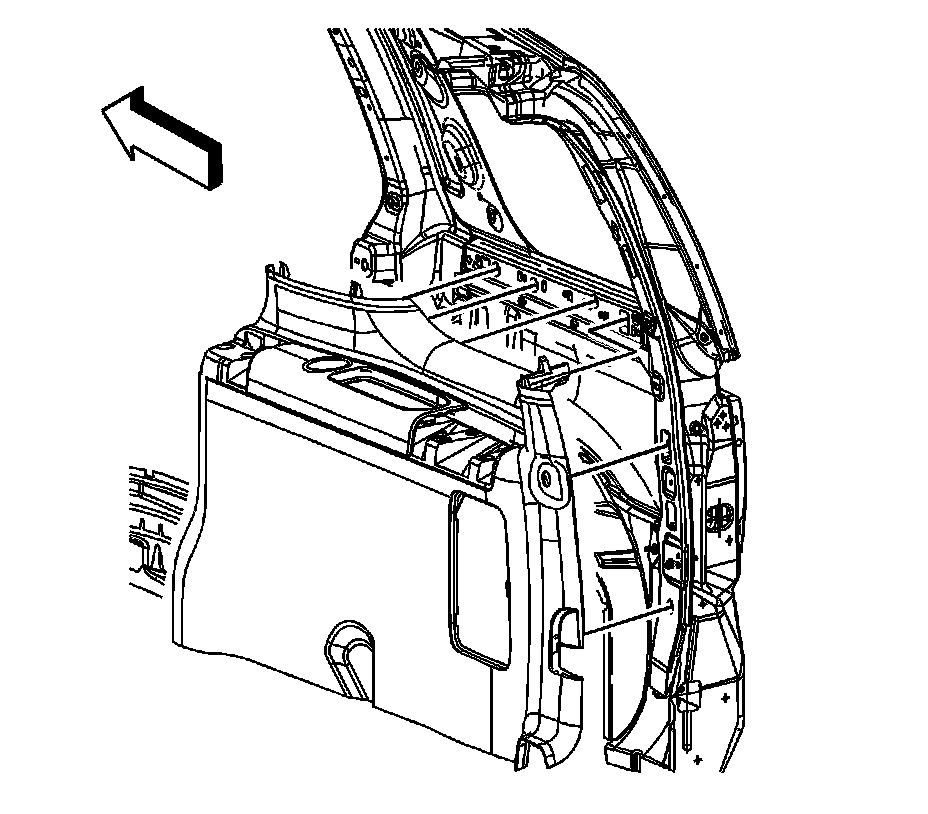

8. Remove the rear quarter trim panel retainers using J 38778.
9. Feed the seat belts through the openings in the trim panel.
10. Remove the rear quarter trim panel from the vehicle.

INSTALLATION PROCEDURE

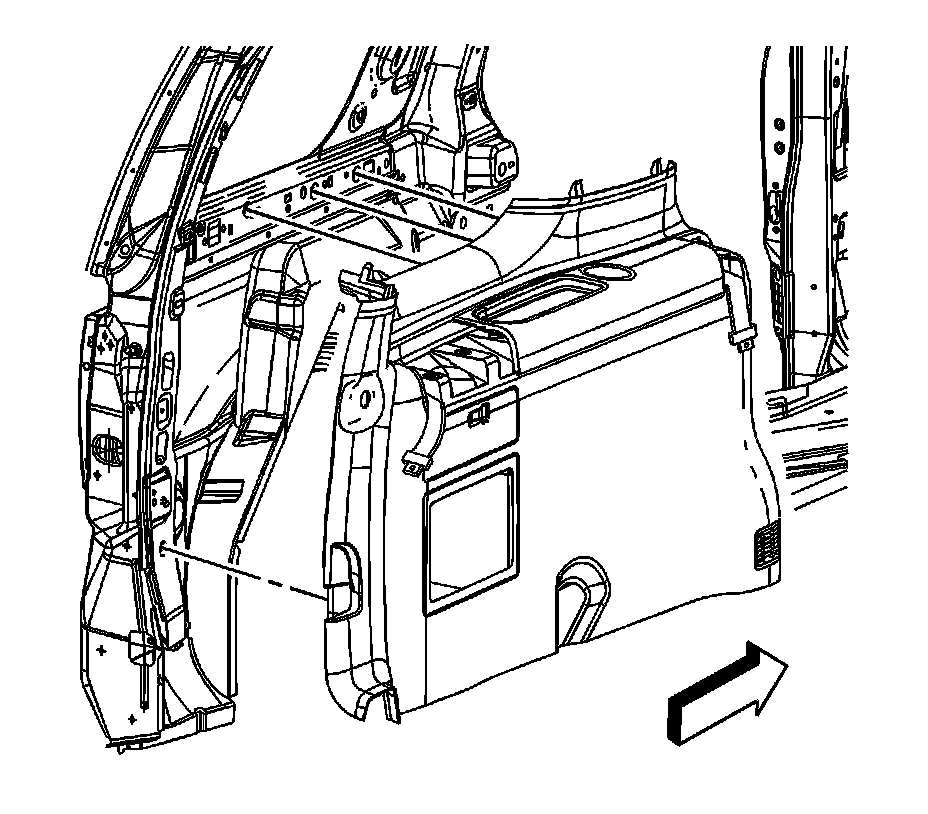

1. Install rear quarter trim panel to vehicle.
2. Feed the seat belts through the openings in the trim panel.
3. Install the rear quarter trim retainers by aligning the retainer with the holes and then pushing the retainers to secure.
4. Install the upper cargo net retainers.
5. Install the liftgate sill plate.
6. Install the seat belt anchor retaining bolts.




7. Install the rear seat belt escutcheons.
8. Install the rear upper finish panel trim.
9. Install the rear upper finish panel trim.
10. Install the rear seats.
