Trim Panel Replacement - Left Body Side Front

TRIM PANEL REPLACEMENT - LEFT BODY SIDE FRONT

TOOLS REQUIRED
J 38778 Door Trim Pad Clip Remover

REMOVAL PROCEDURE
1. Remove the rear seats.
2. Remove the rear quarter trim panel.
3. Remove the body pillar upper trim panel.
4. Remove the front door sill plate.

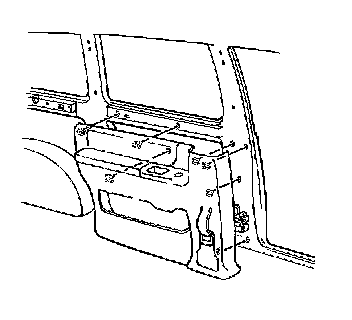

5. Remove the body side front trim panel retainers using the J 38778.
6. Remove the body side front trim panel from the vehicle.

INSTALLATION PROCEDURE




1. Install the body side front trim panel to the vehicle.
2. Install the body side front trim panel retainers by aligning the retainers to the holes and pushing in on the retainers to secure them.
3. Install the front door sill plate.
4. Install the body pillar upper trim panel.
5. Install the rear quarter trim panel.
6. Install the rear seats.
