Instrument Panel (I/P) Carrier Replacement

Instrument Panel (I/P) Carrier Replacement

Removal Procedure

1. Disable the SIR. Refer to SIR Disabling and Enabling Zone 3 and SIR Disabling and Enabling Zone 5 .
2. Disconnect the negative battery cable. Refer to PSD SIE TITLE Error: SIE linked to empty Cell ID 37733 .
3. Remove the instrument panel (I/P). Refer to Instrument Panel (I/P) Assembly Replacement (Removal and Replacement) .
4. Disconnect the I/P wiring harness connectors and position out of the way. Refer to Instrument Panel (I/P) Harness Replacement (Removal and Replacement) .
5. Remove the body control module (BCM). Refer to Body Control Module Replacement .
6. Remove the I/P air outlet ducts. Refer to Instrument Panel (I/P) Air Outlet Ducts Replacement .
7. Remove the center air outlet. Refer to Air Outlet Replacement - Center .
8. Remove the defroster duct. Refer to Air Outlet Duct Replacement - Defroster .

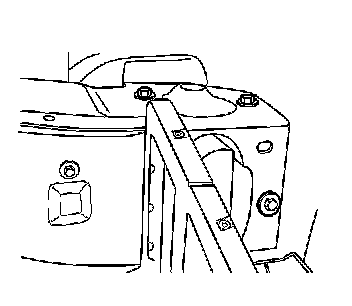

9. Remove the bolt holding the HVAC module to the bracket on the I/P carrier, this bolt is located under the right side window defogger duct.
10. Remove the bolt holding the HVAC module to the bracket on the I/P carrier, this bolt is located under the left side window defogger duct.
11. Remove the bolt holding the HVAC module to the bracket on the I/P carrier, this bolt is located on the rear right center of the I/P carrier.
12. Remove the bolt holding the brake pedal bracket on the I/P carrier, this bolt is located on the upper rear side of the bracket.
13. Remove the ground wire bolts on the lower I/P carrier on the right and left sides.
14. Remove the bolts holding the steering column support bracket on the cowl panel brace.




15. Remove the bolts/screws which secure the I/P carrier to the body.
16. Remove the I/P carrier from the body.



Installation Procedure





1. Position the I/P carrier to the body.

Notice: Refer to Fastener Notice .

2. Install the bolts/screws which secure the I/P carrier to the body.

Tighten the bolts/screws to 25 N.m (18 lb ft).

3. Install the bolt holding the HVAC module to the bracket on the I/P carrier, this bolt is located under the right side window defogger duct.

Tighten the bolts/screws to 2 N.m (18 lb in).

4. Install the bolt holding the HVAC module to the bracket on the I/P carrier, this bolt is located under the left side window defogger duct.

Tighten the bolts/screws to 2 N.m (18 lb in).

5. Install the bolt holding the HVAC module to the bracket on the I/P carrier, this bolt is located on the rear right center of the I/P carrier.

Tighten the bolts/screws to 2 N.m (18 lb in).

6. Install the bolt holding the brake pedal bracket on the I/P carrier, this bolt is located on the upper rear side of the bracket.

Tighten the bolts/screws to 25 N.m (18 lb ft).

7. Install the ground wire bolts on the lower I/P carrier on the right and left sides.

Tighten the bolts/screws to 2 N.m (18 lb in).

8. Install the bolts holding the steering column support bracket on the cowl panel brace.

Tighten the bolts/screws to 24 N.m (18 lb ft).

9. Install the defroster duct. Refer to Air Outlet Duct Replacement - Defroster .
10. Install the center air outlet. Refer to Air Outlet Replacement - Center .
11. Install the I/P air outlet ducts. Refer to Instrument Panel (I/P) Air Outlet Ducts Replacement .
12. Install the A/C control module. Refer to HVAC Control Module Replacement .
13. Install the EBCM. Refer to Electronic Brake Control Module Replacement .
14. Install the BCM. Refer to Body Control Module Replacement .
15. Install the wiring harness. Refer to Instrument Panel (I/P) Harness Replacement (Removal and Replacement) .
16. Install the I/P. Refer to Instrument Panel (I/P) Assembly Replacement (Removal and Replacement) .
17. Connect the negative battery cable. Refer to PSD SIE TITLE Error: SIE linked to empty Cell ID 37733 .
18. Enable the SIR. Refer to SIR Disabling and Enabling Zone 3 and SIR Disabling and Enabling Zone 5 .
