Home
>>
Saab
>>
2011
>>
9-4X FWD V6-3.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Moding Schematics
Power Moding Schematics
Power Moding Schematics
Ignition Controls

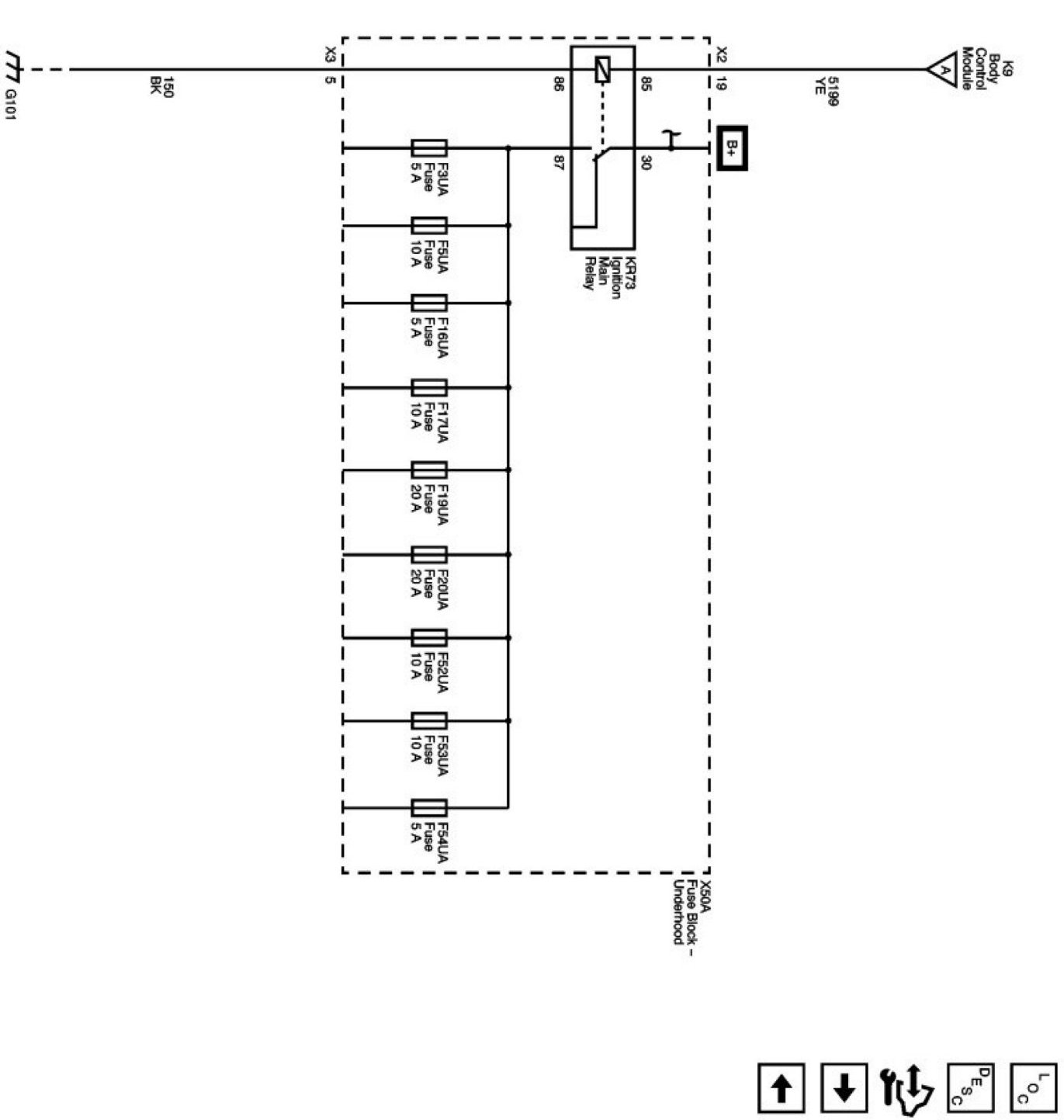

Ignition Main Relay

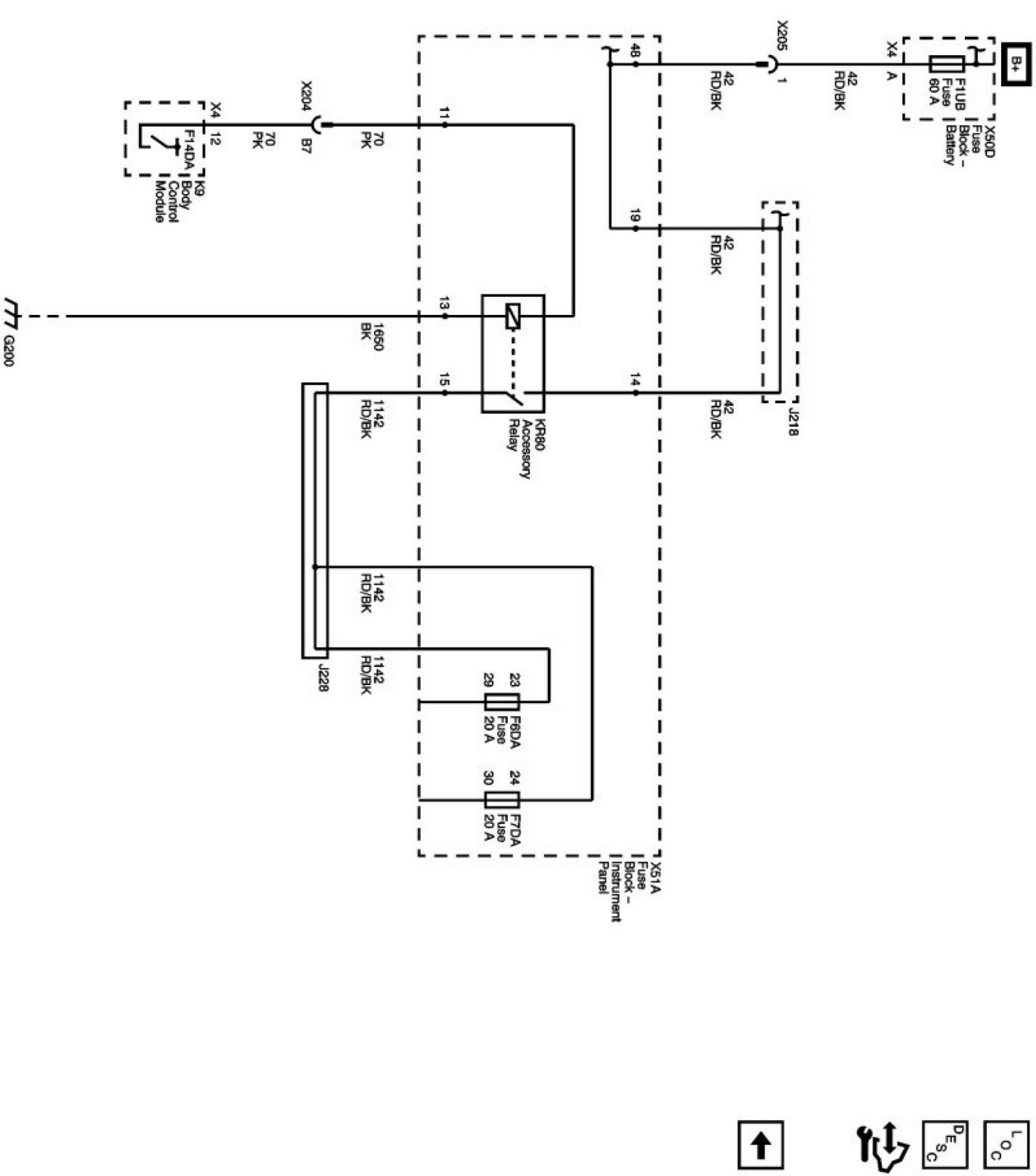

Accessory Relay
