Front Suspension

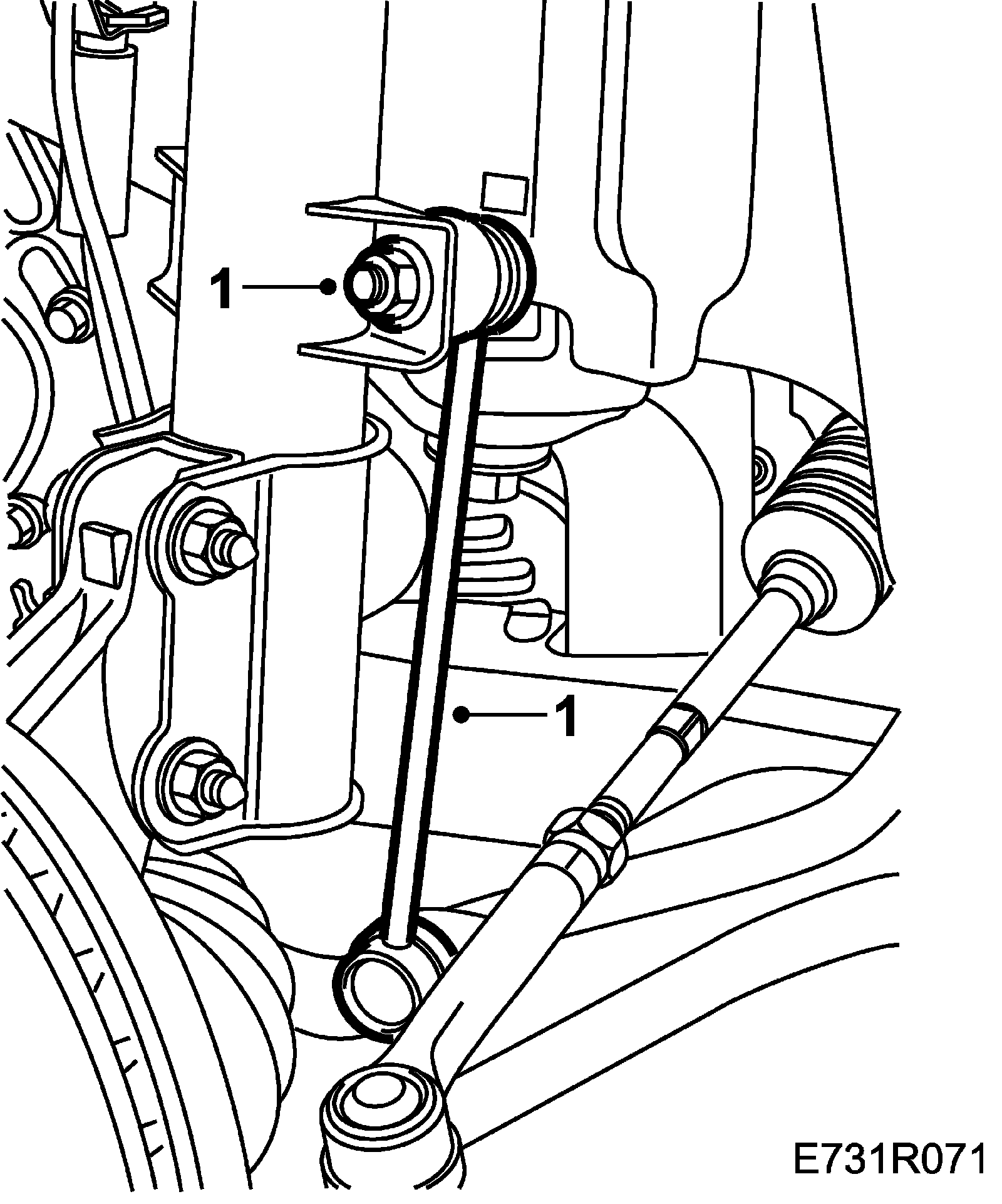

Anti-roll bar link

To remove





1. Raise the car.
2. Remove the wheel.
3. Undo the anti-roll bar link's nuts and remove the link.

To fit





1. Bolt the anti-roll bar link to the MacPherson strut and the anti-roll bar.

Tightening torque 90 Nm (65 lbf ft).

2. Fit the wheel. See Wheels.

Tightening torques

aluminum rim 110 Nm (81 lbf ft)

pressed steel rim 50 Nm +2x90 degrees, max. 110 Nm (37 lbf ft +2x90 degrees, max. 81 lbf ft)

Lower the car to the floor.
