Track Rod
Track RodTo remove
1. Remove Dust excluder, steering gear.

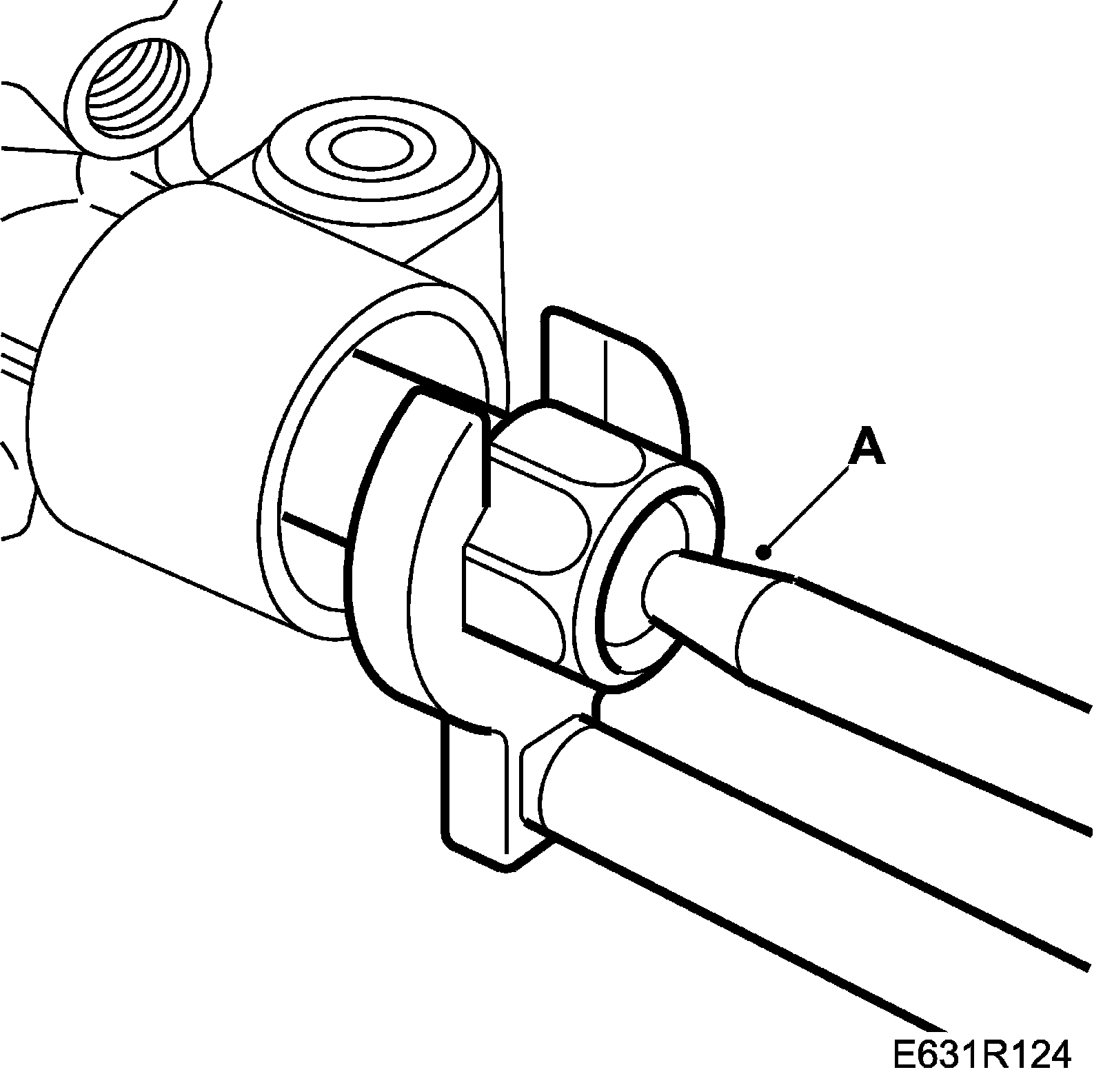

2. Remove the stay (A) using crow foot spanner 89 96 837.
To fit
1. Fit the stay (A) using crow foot spanner 89 96 837.
Tightening torque: 80 Nm (59 lbf ft)
2. Fit Dust excluder, steering gear.
3. Perform Wheel alignment.
