Wheels: Description and Operation

Wheels

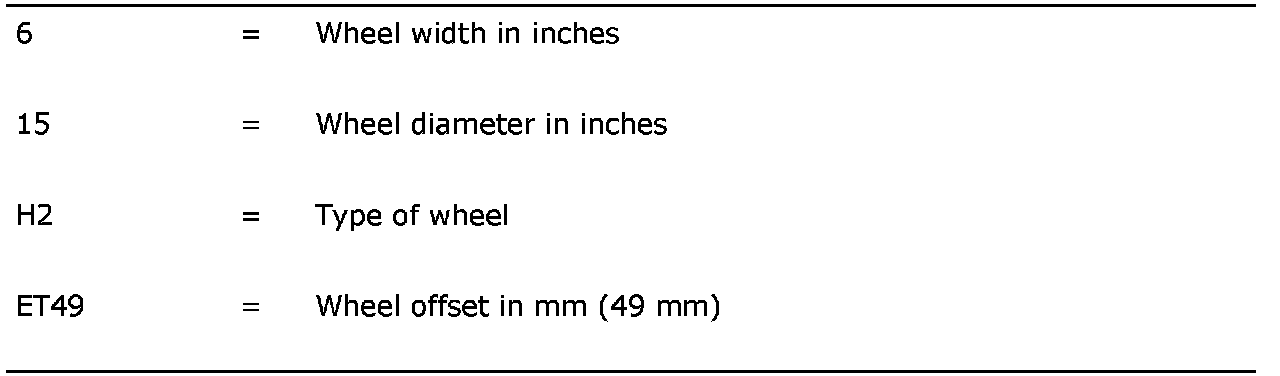

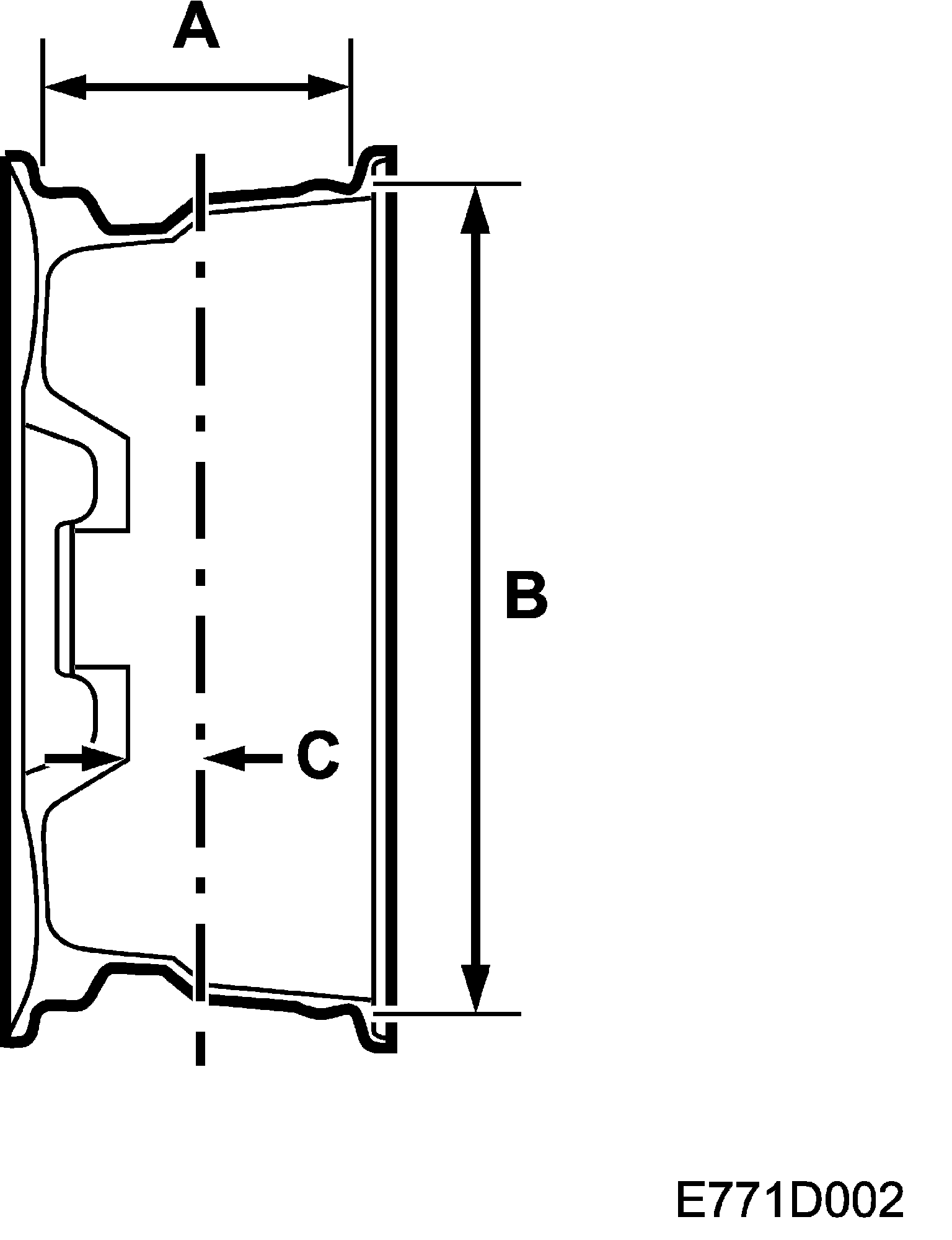

The wheel is centered directly on the hub. In addition, the wheel bolts are tapered to locate the wheel correctly. The wheel designation 6J x 15 H2 ET49 means:





Wheel bolts
Bolt size M12 x 1.5 (5 per wheel). The same bolts are used for pressed steel and light alloy wheels.
