Trunk Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

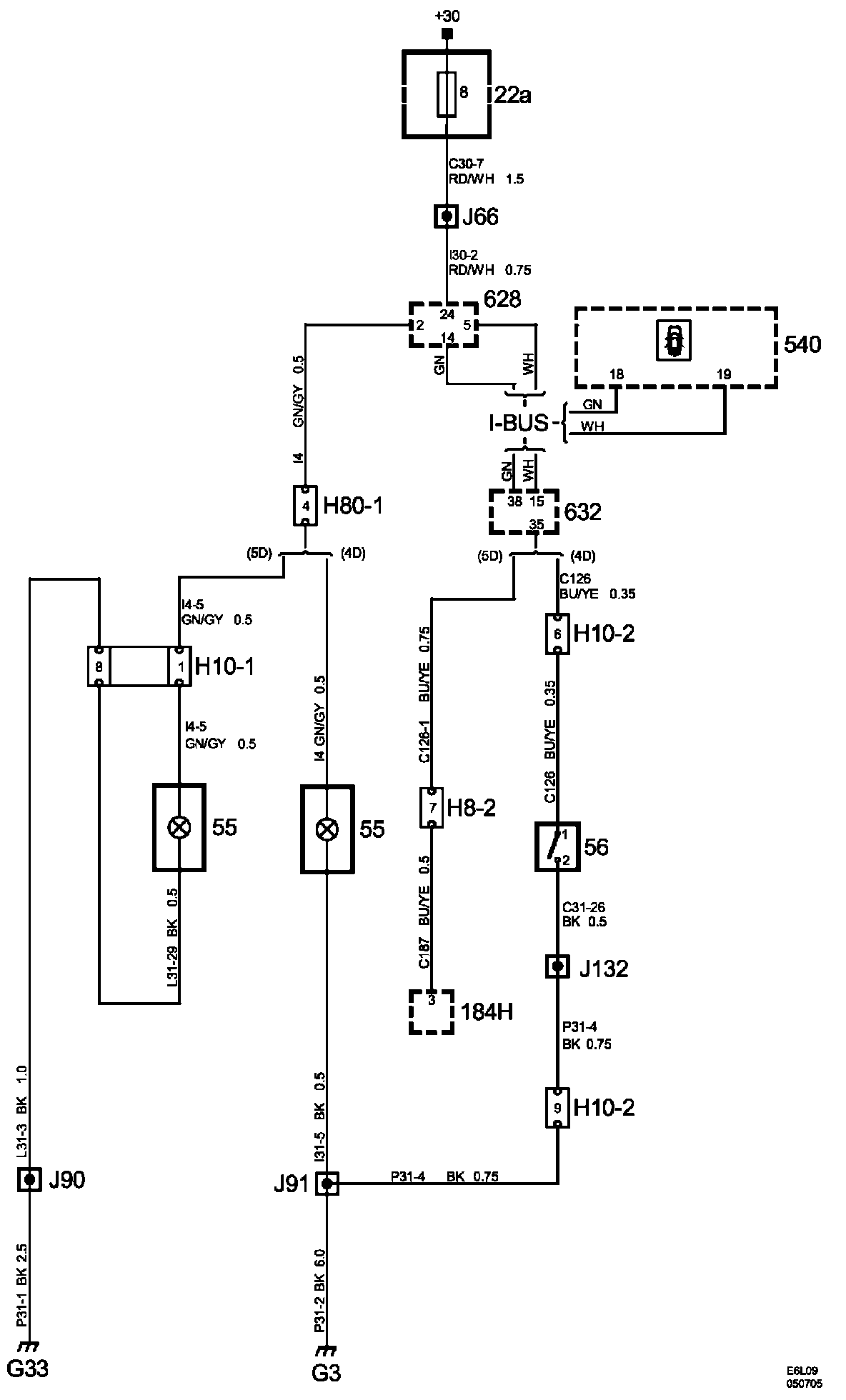

Luggage Compartment Lighting
Luggage Compartment Lighting:
Component list

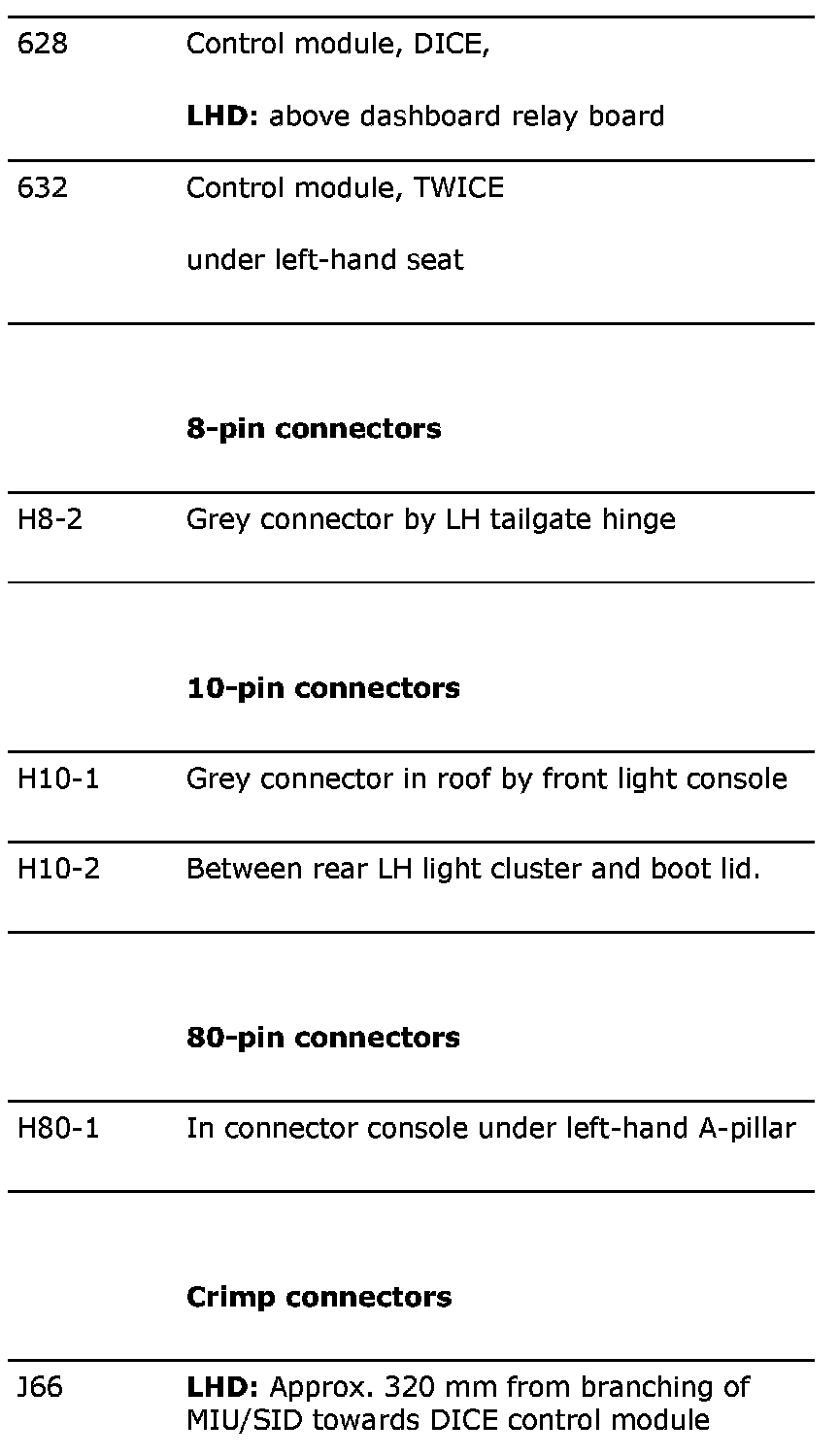

Component List (Part 1):

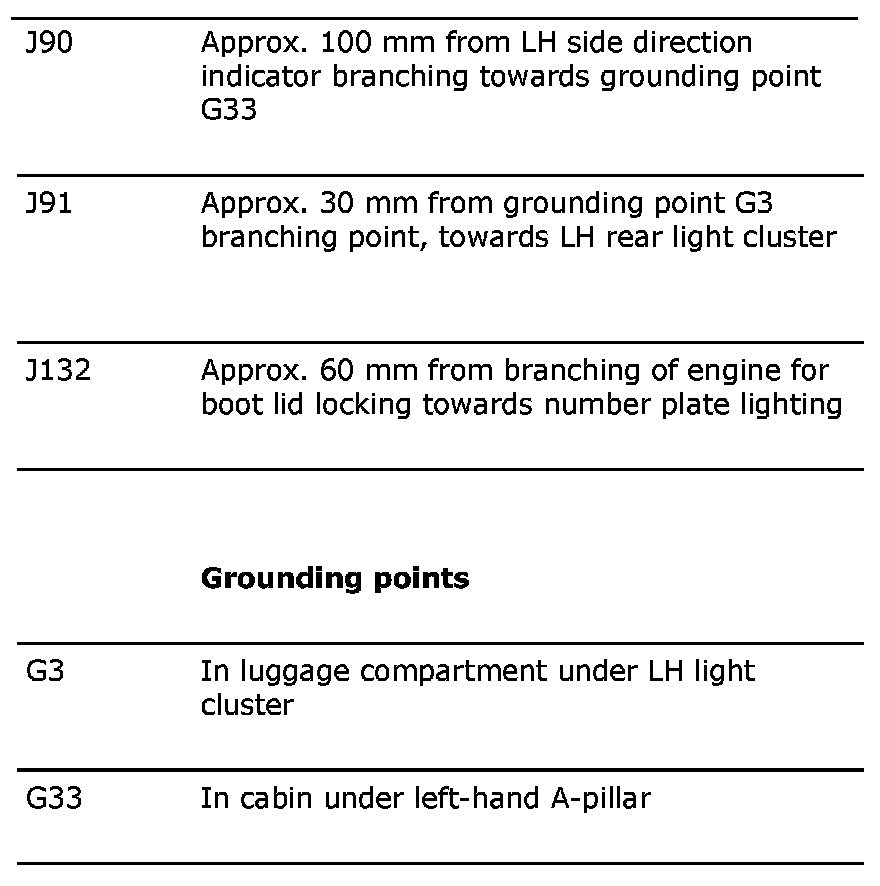

Component List (Part 2):
Component List (Part 3):
