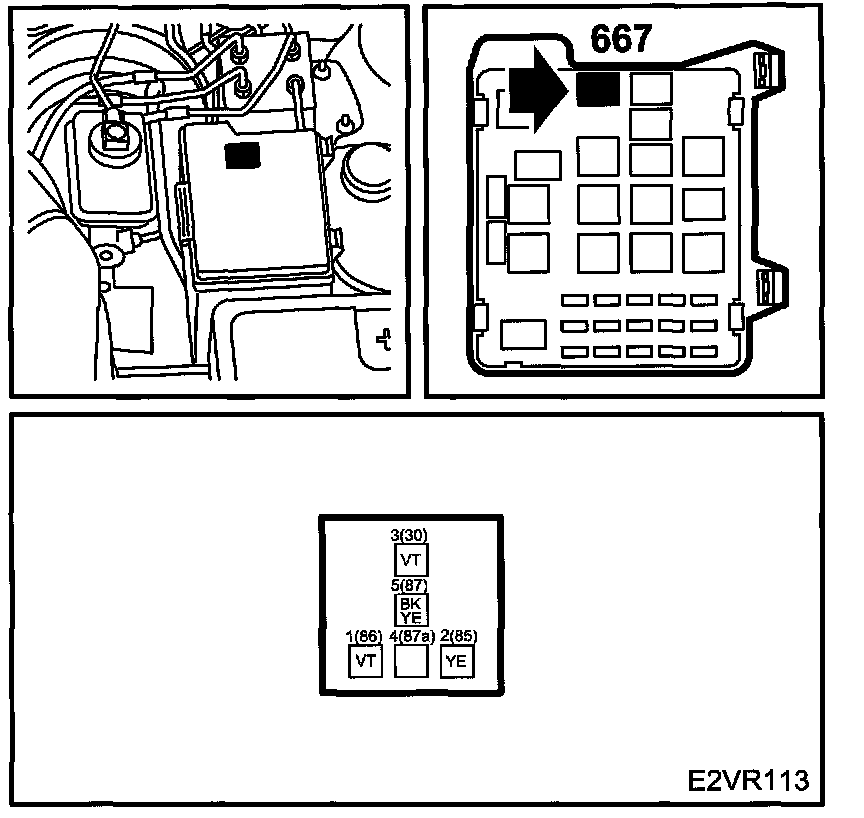

Relay, High Pressure Headlamp Washer Fluid Pump (667)
Relay, High Pressure Headlamp Washer Fluid Pump (667)
Relay, High Pressure Headlamp Washer Fluid Pump (667):
