Parking Assist Distance Sensor
>>
Ultrasound Distance Sensor, Centre (631RRC)
Ultrasound Distance Sensor, Centre (631RRC)

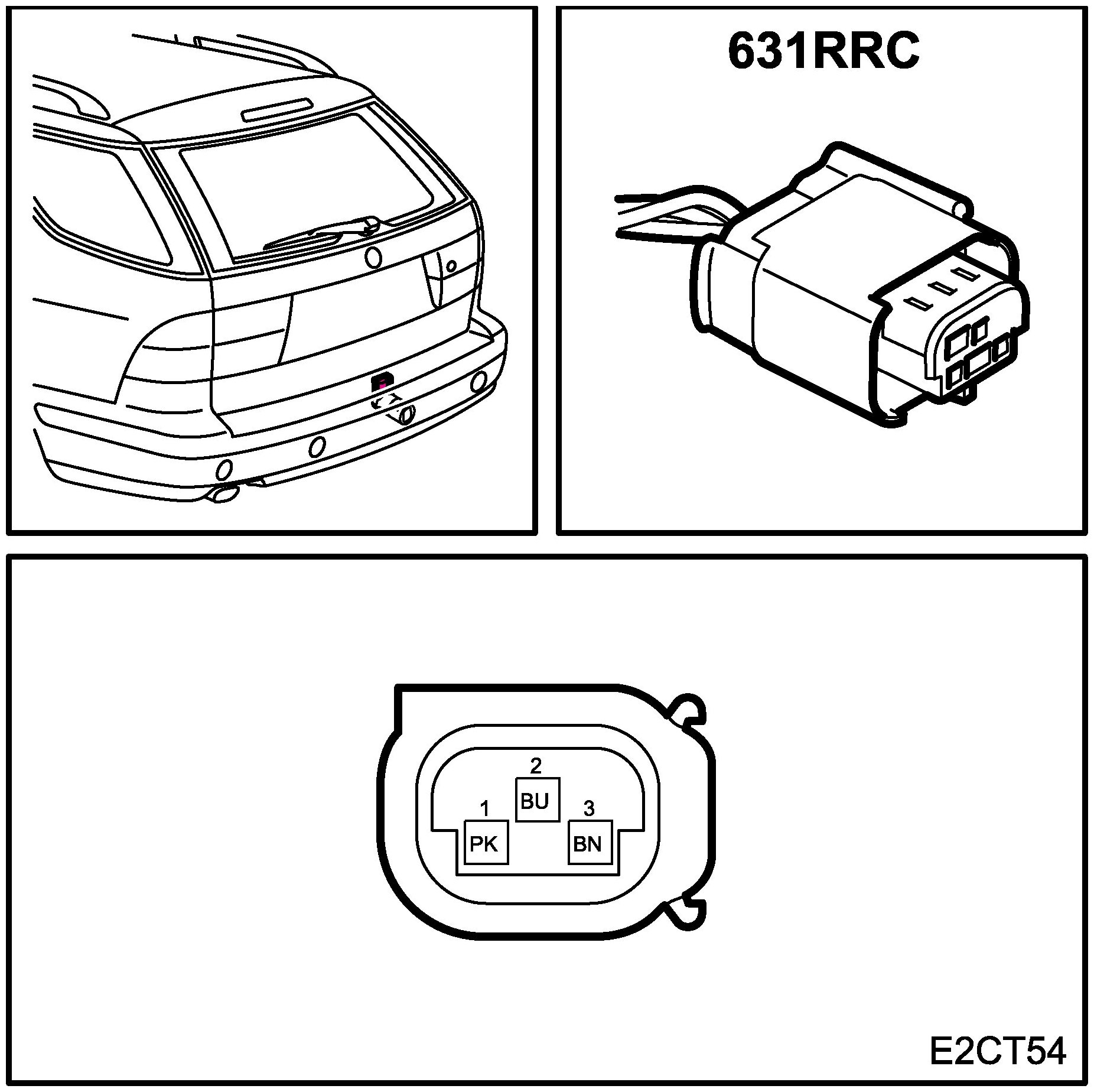

Ultrasound Distance Sensor, Centre (631RRC):
