Air Temperature Sensor ( Ambient / Intake )
>>

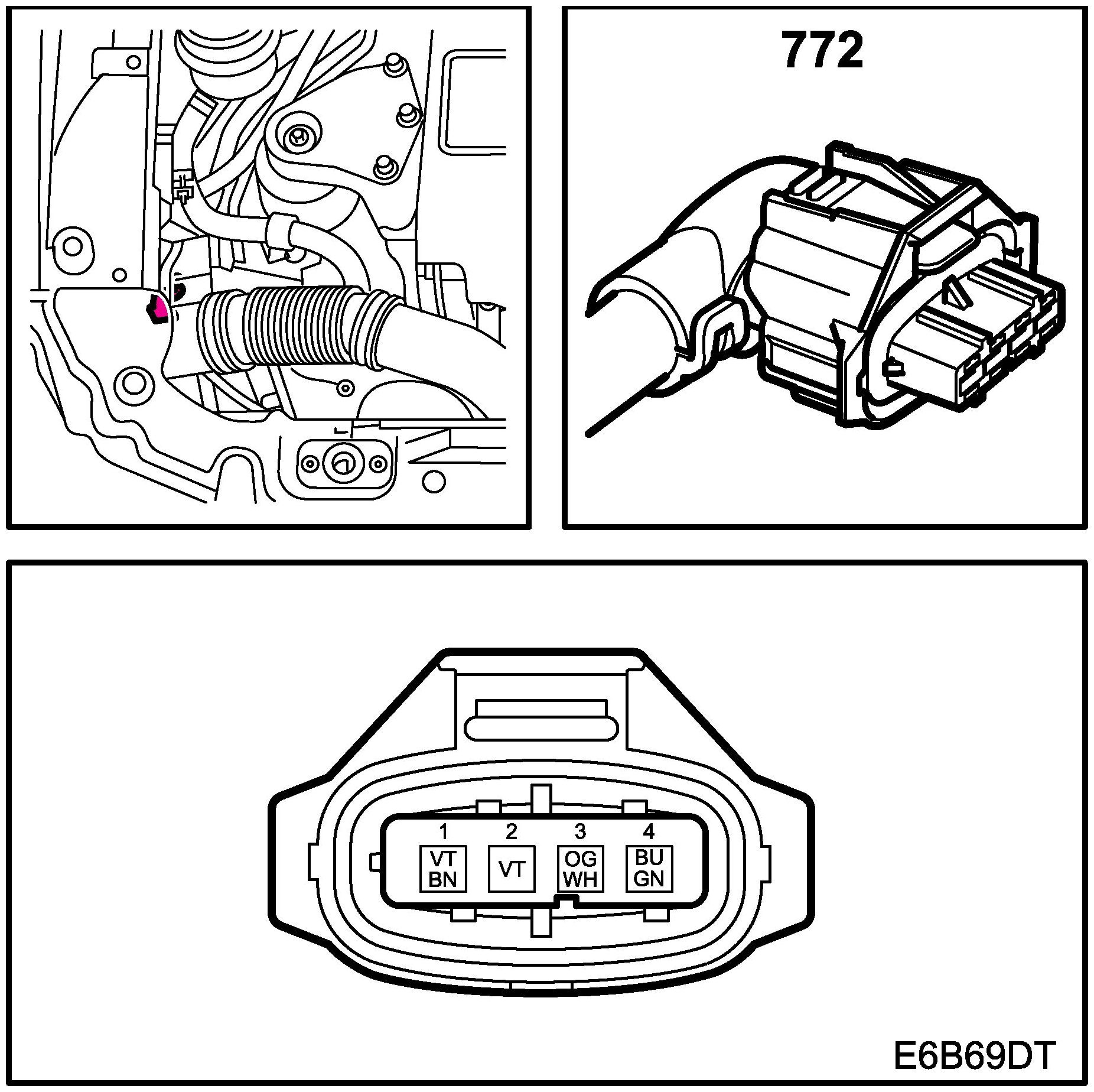

Ambient Air Temperature Sensor, Engine Management System (772)
Ambient Air Temperature Sensor, Engine Management System (772)
Ambient Air Temperature Sensor, Engine Management System (772):
