Grounding Point G41S

Grounding point G41S

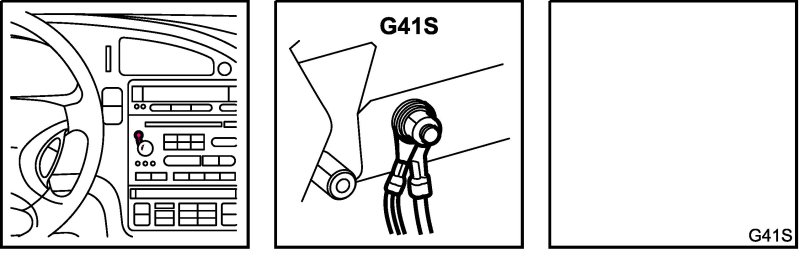

Location: Left-hand grounding screw in center of knee protection bar (in cabin)

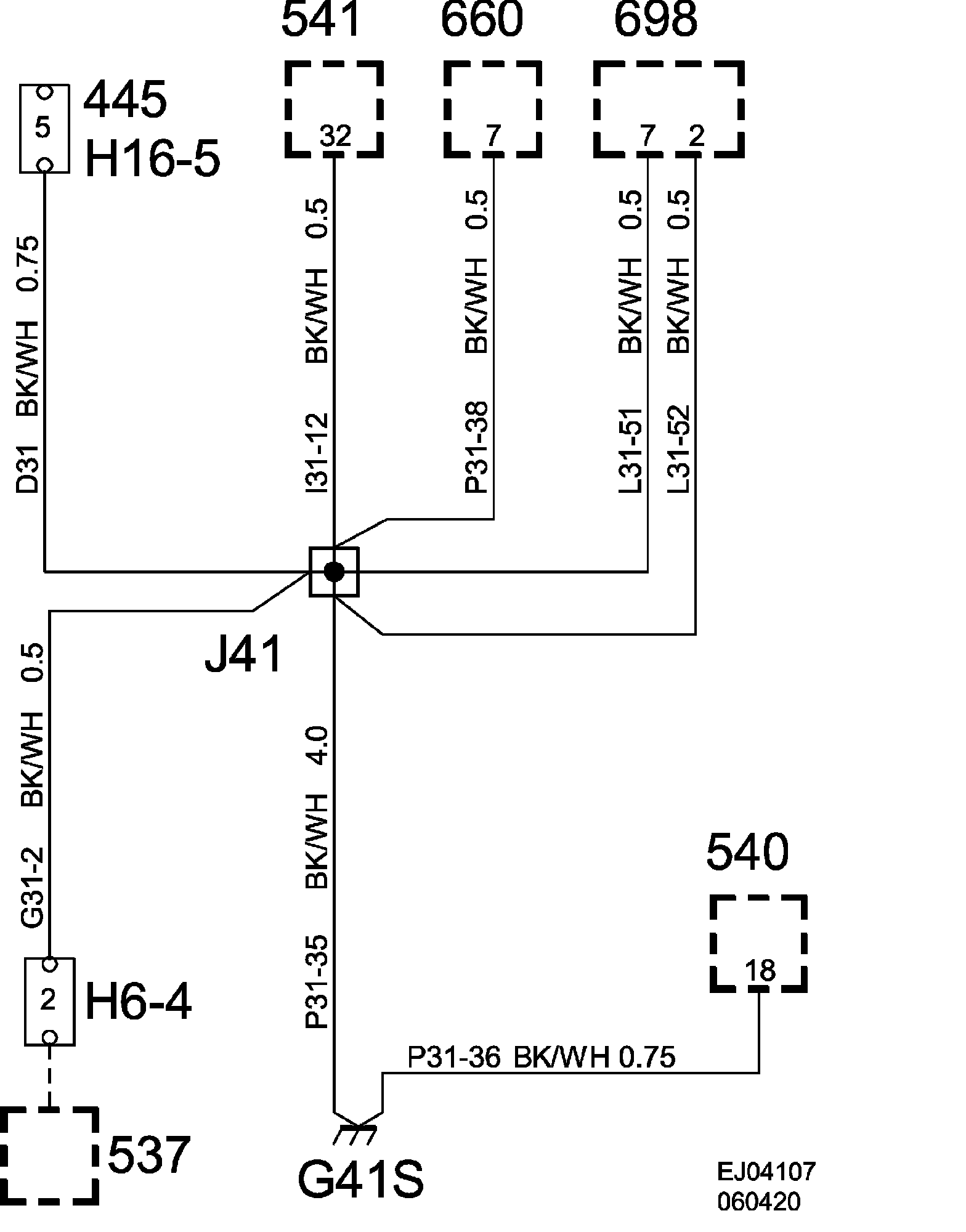

Connected components
540 Main instrument unit

Via Crimp J41, instrument harness

445 Data link connector, 16-pin, CARB
537 SPORT switch
541 SID
660 ESP switch
698 Switch, Night panel
