Antenna Amplifier (4D)

Antenna Amplifier (4D)

To remove

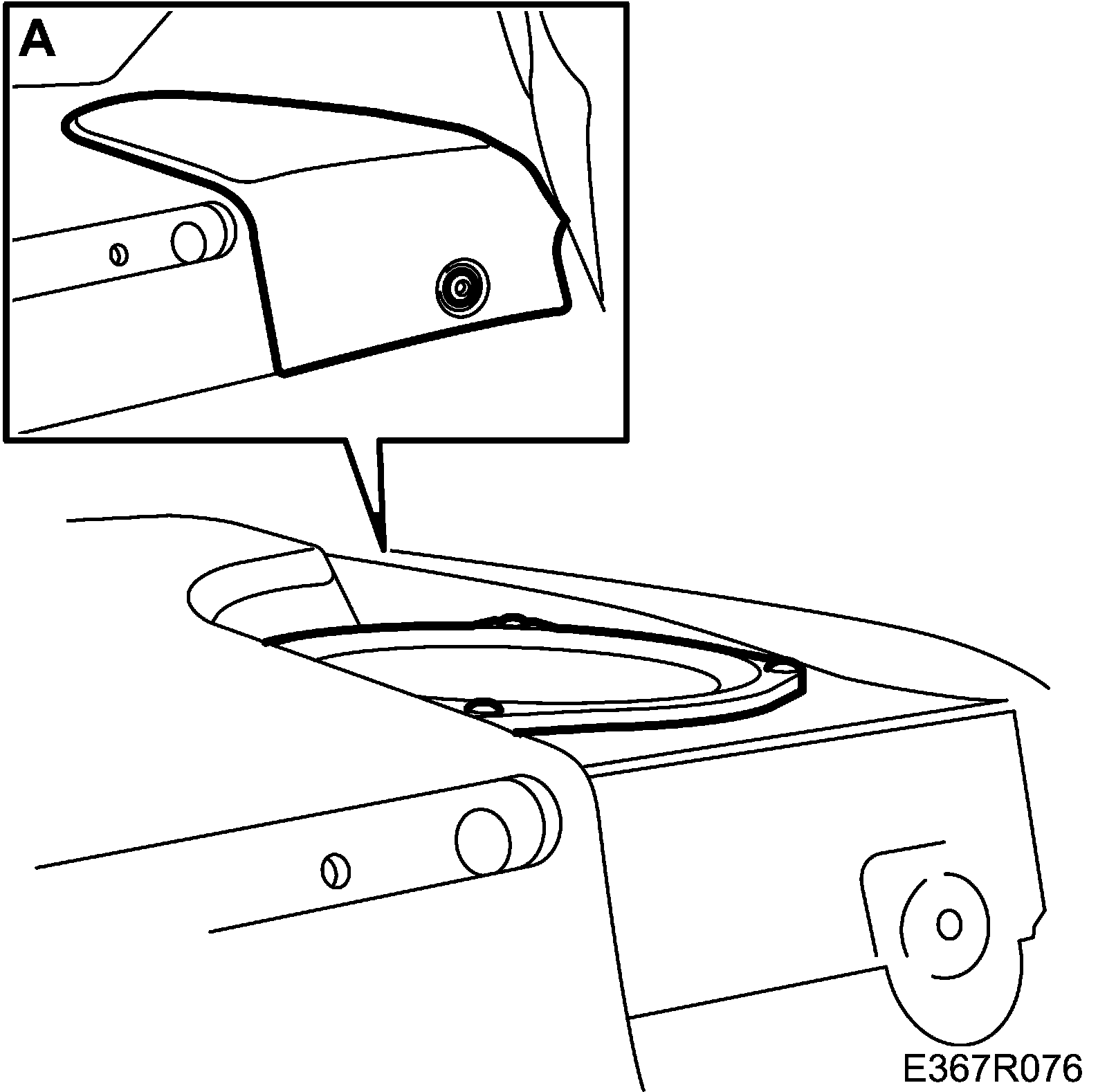

1. Remove the speaker grille (A) in the parcel shelf on the right-hand side.

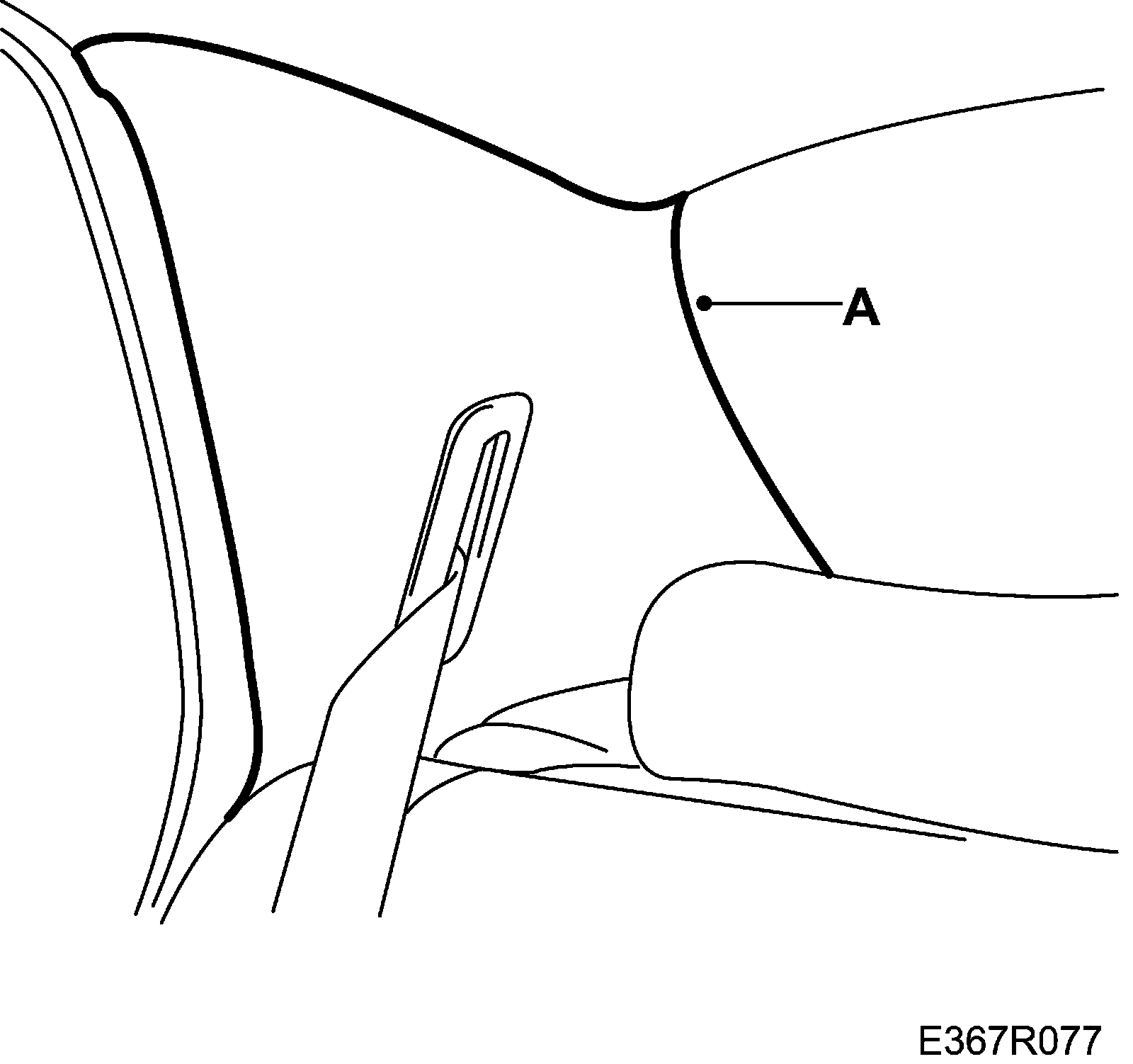

2. Remove the trim (A) on the right-hand C-pillar to access the antenna amplifier.

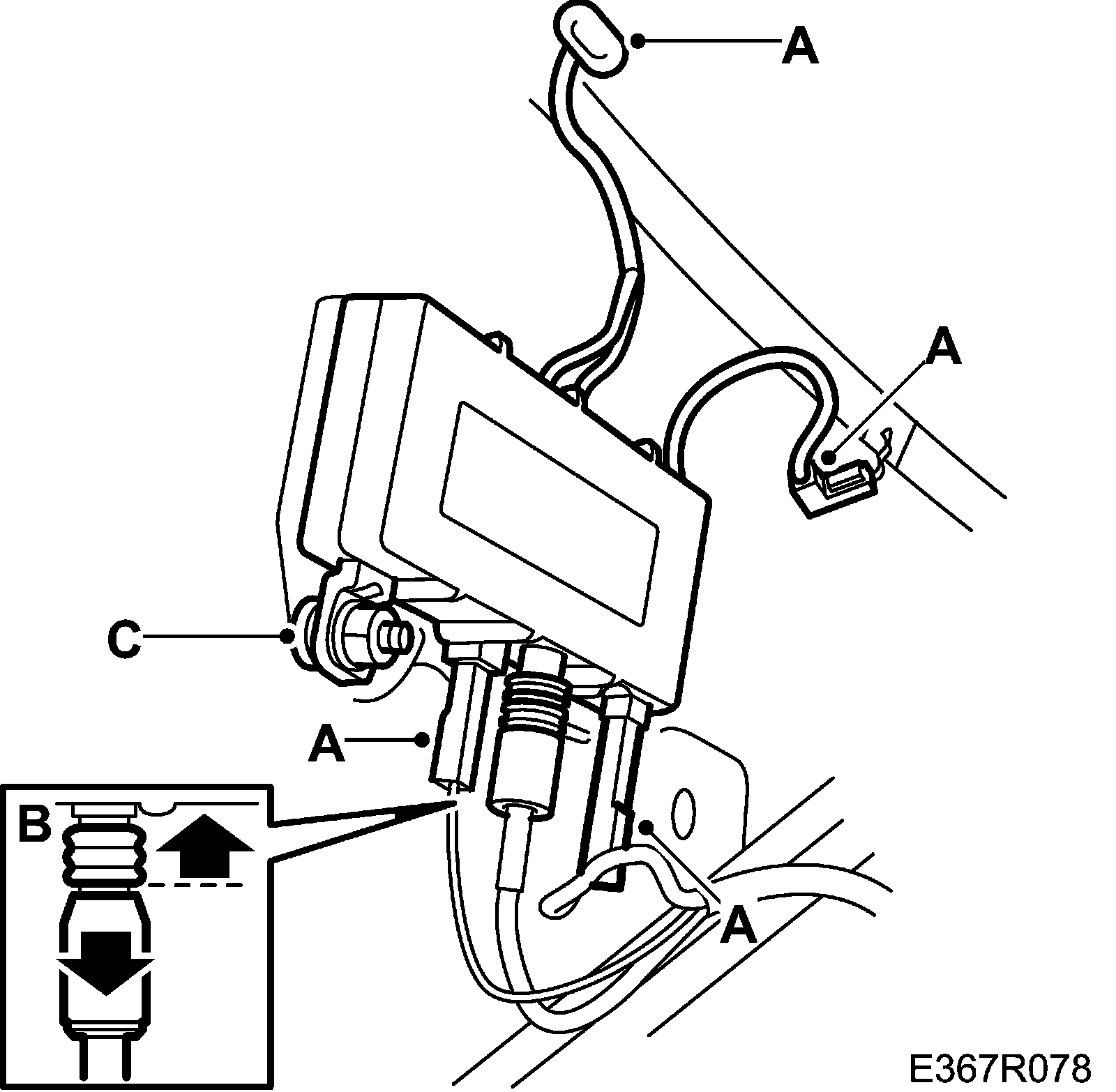

3. Detach the connections (A, B) for the antenna amplifier.







IMPORTANT: Take care with contact (B). Undoing the antenna contact requires caution, and it has to be done correctly so as not to damage the connection. See the description (B).

4. Remove the screws (C) securing the antenna amplifier and remove the unit.

To fit

1. Fit the screws (C) that secure the antenna amplifier.







2. Attach the connections (A, B) for the antenna amplifier.
3. Fit the trim (A).







4. Fit the speaker grille (A).
