Saab
>>
2007
>>
9-7X L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Lamp
>>
System Diagram
System Diagram

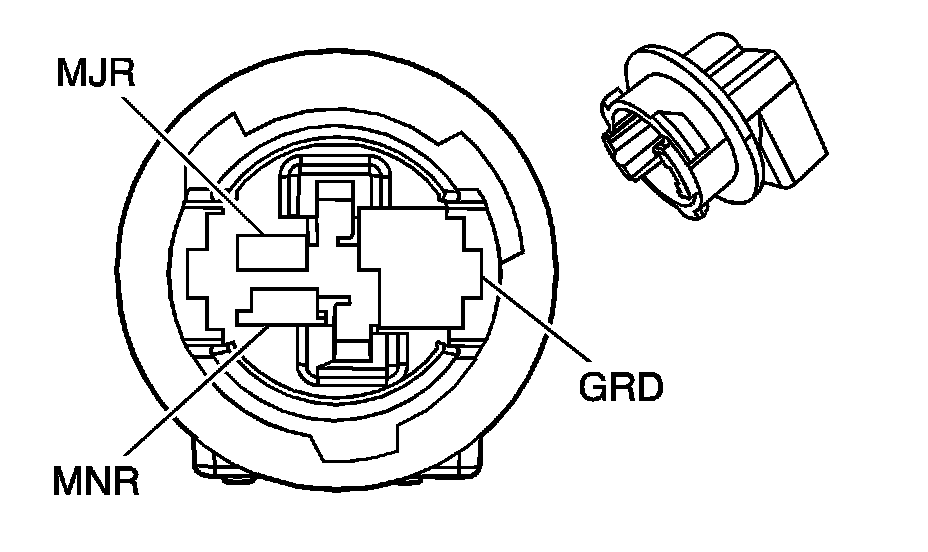

Lighting Systems Connector End Views

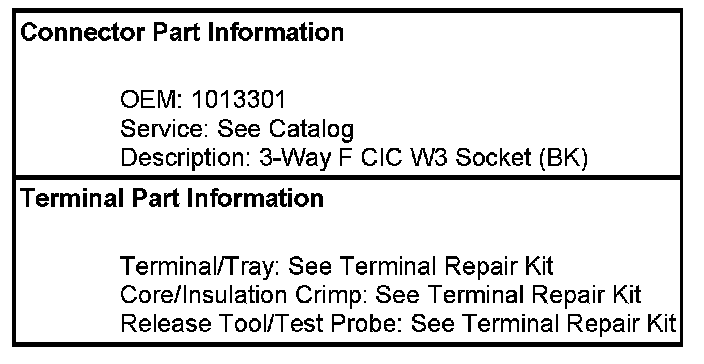

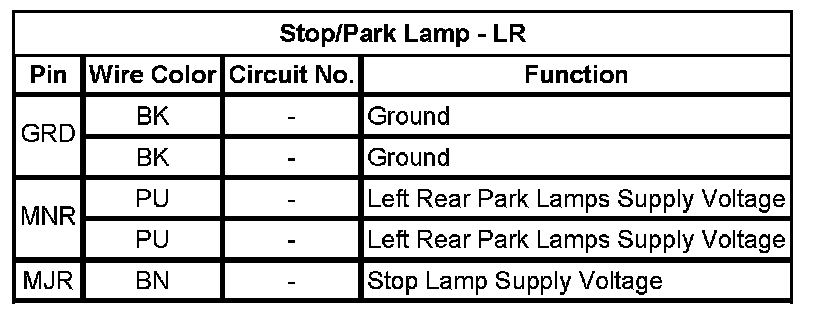

Stop/Park Lamp - LR

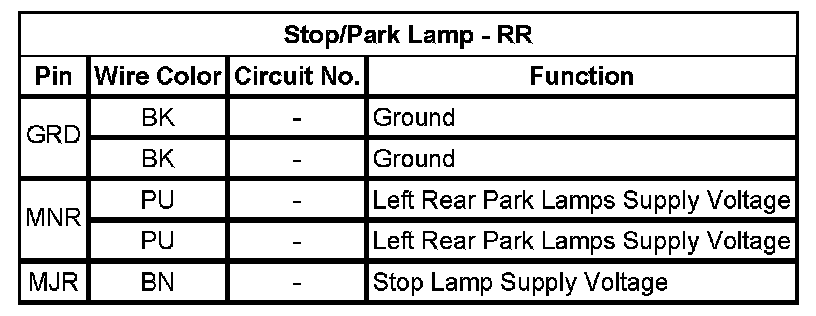

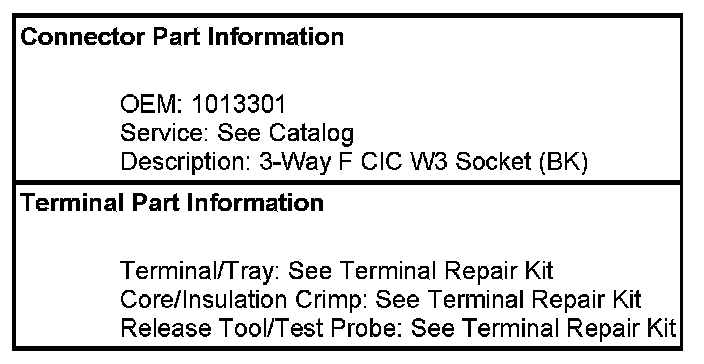

Stop/Park Lamp - RR
