Saab
>>
2006
>>
9-5 (9600) L4-2.3L Turbo (2.3 T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>

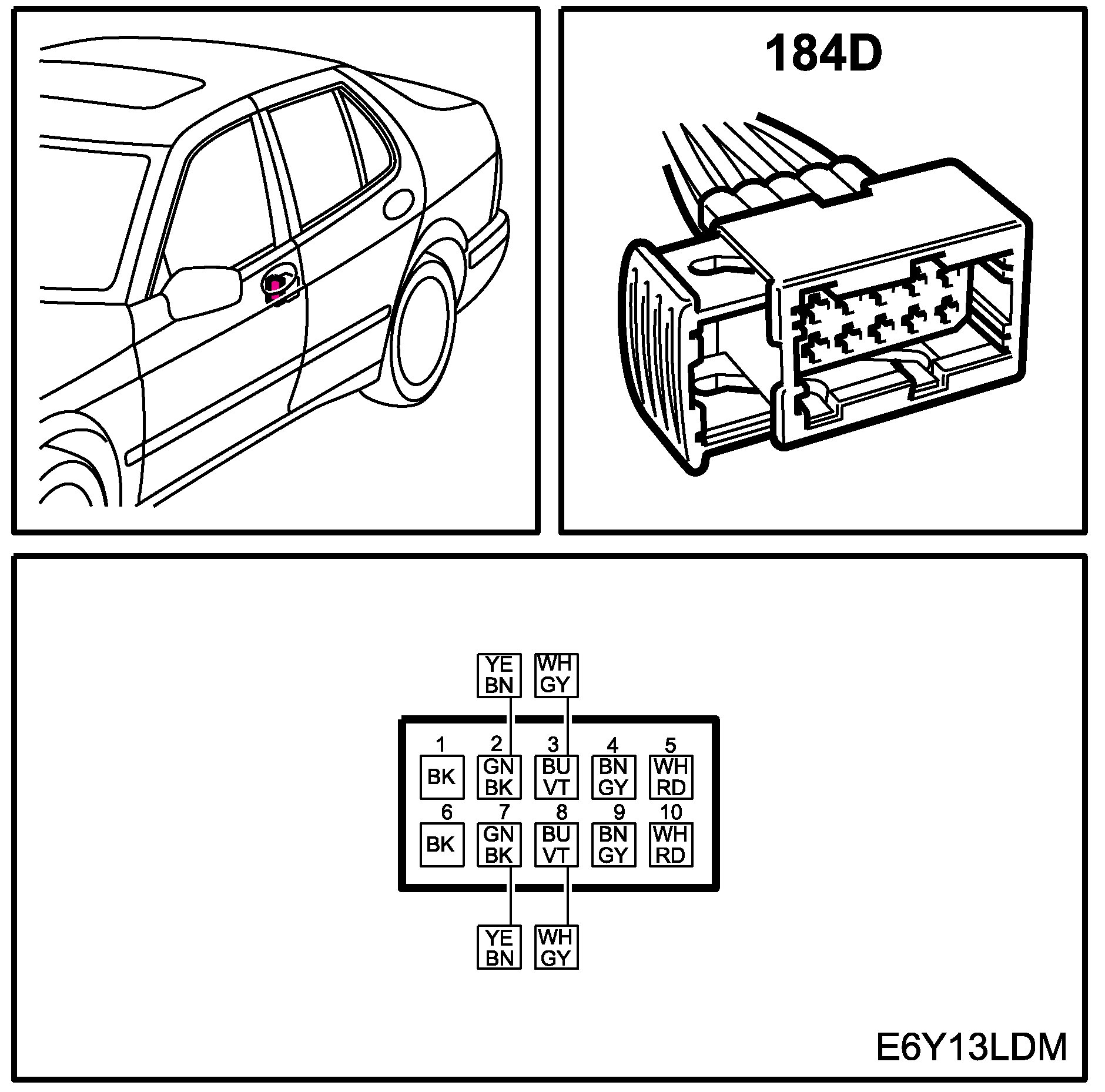

Central Locking System Motor, Driver (184D)
Central Locking System Motor, Driver (184D)
Central Locking System Motor, Driver (184D):
