Saab
>>
2006
>>
9-5 (9600) L4-2.3L Turbo (2.3 T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Temperature Sensor ( Ambient / Intake )
>>

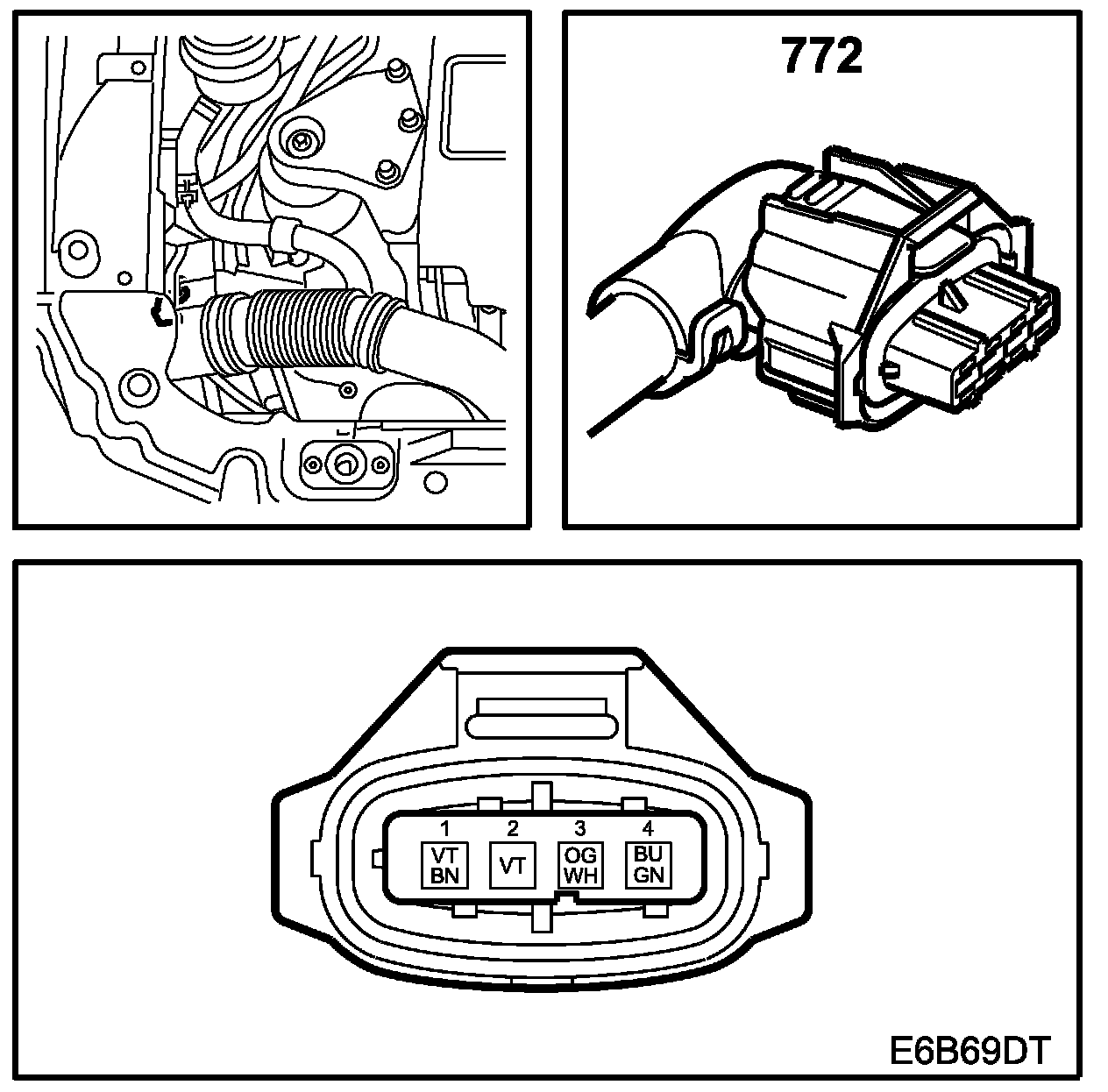

Ambient Air Temperature Sensor, Engine Management System (772)
Ambient Air Temperature Sensor, Engine Management System (772)
Ambient Air Temperature Sensor, Engine Management System (772):
