Fuel Pump Control Unit: Locations

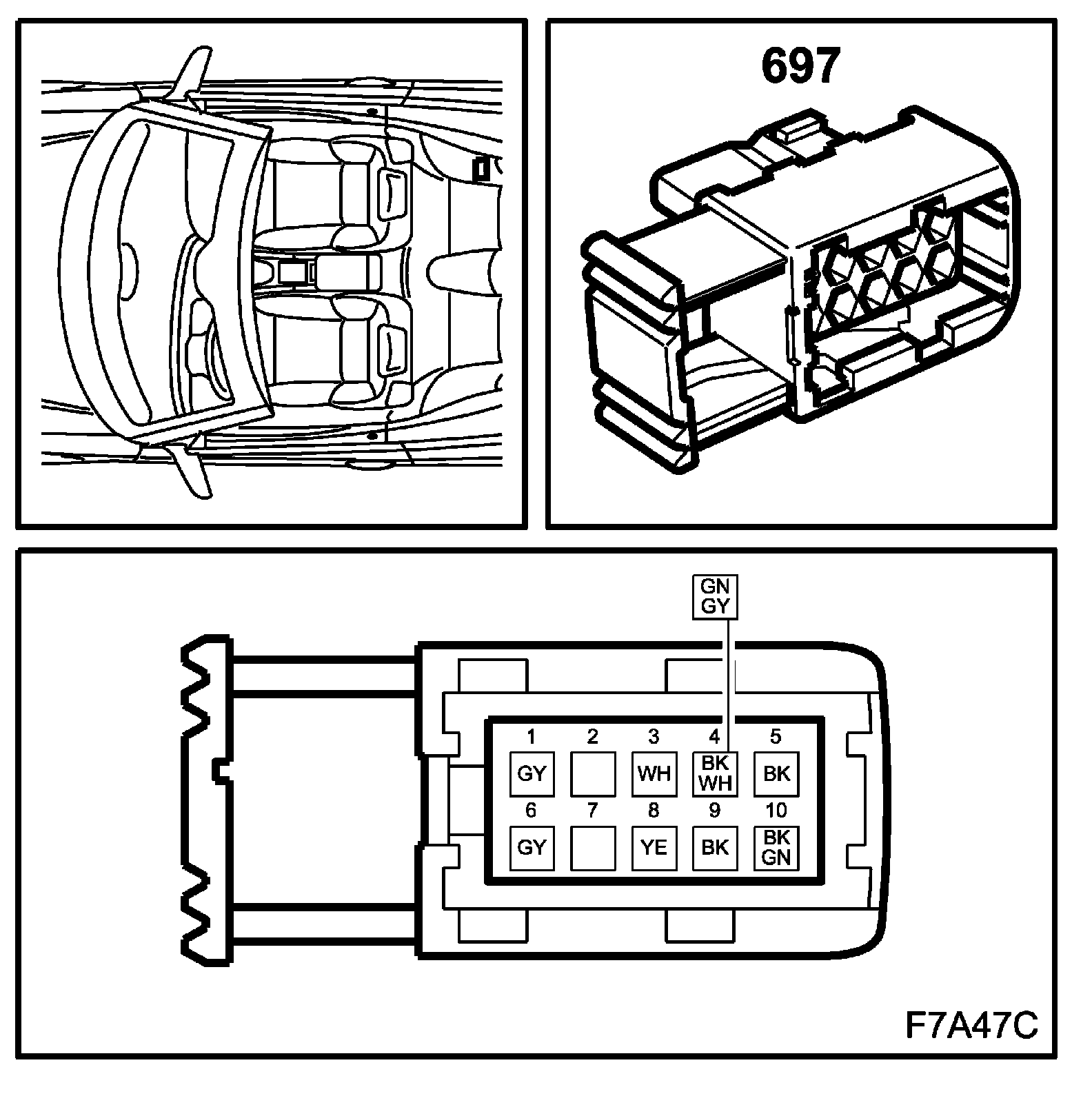

4D/5D

Location: under right seat

Control Module, Fuel Pump (697):

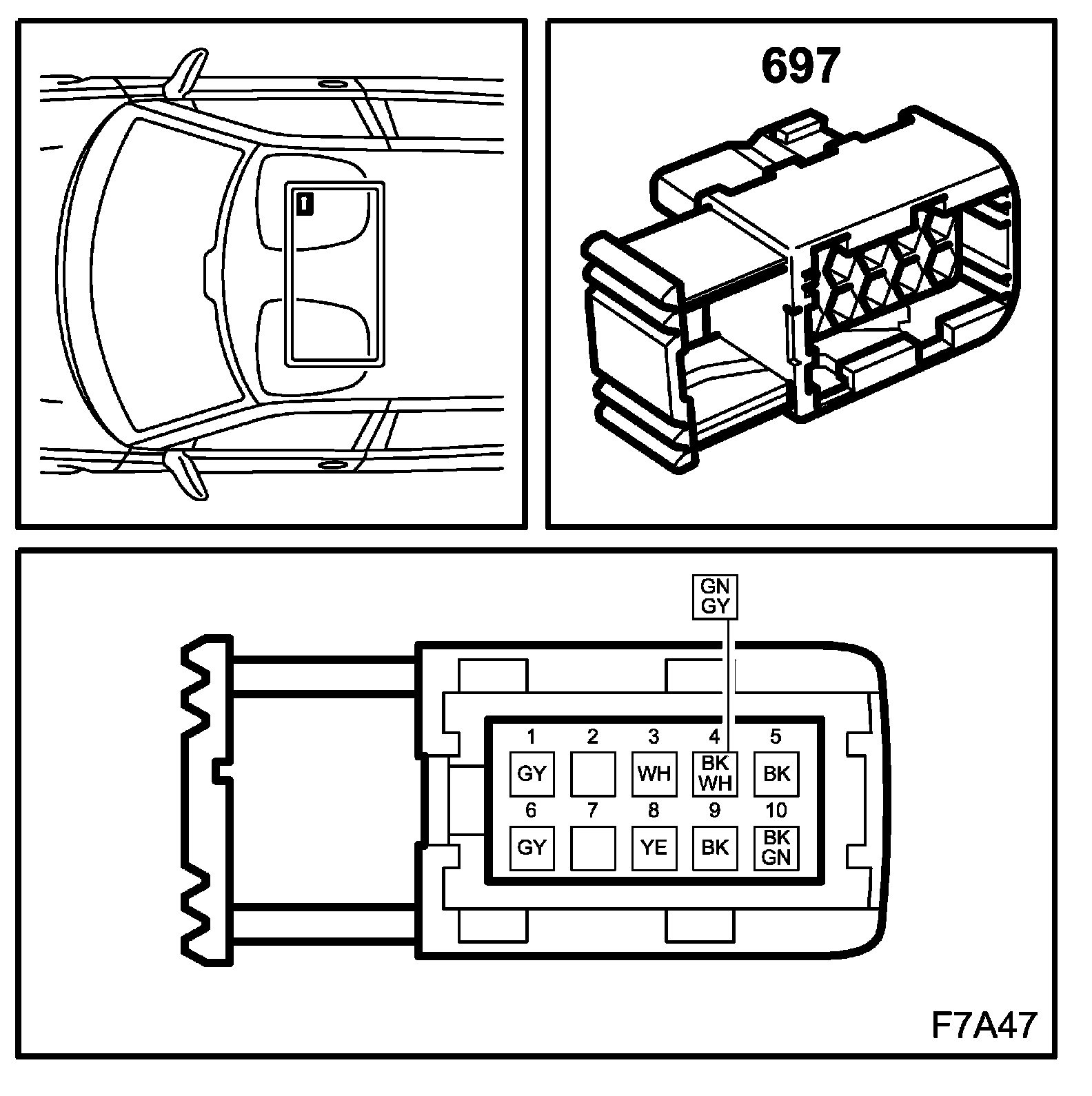

CV

Location: under right seat

Control Module, Fuel Pump (697):
