Rear Secondary Air Pipe

Rear Secondary Air Pipe

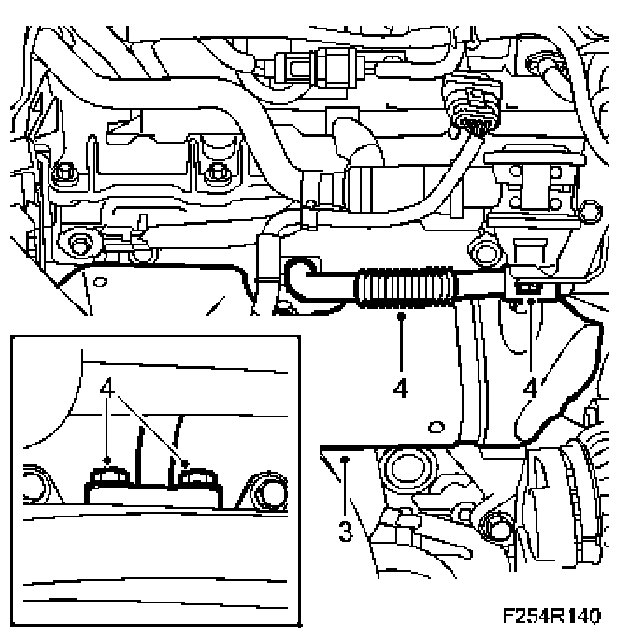

To Remove
1. Remove the Front catalytic converter.
2. Raise the car.
3. Remove the heat shield of the exhaust manifold.





4. Remove the pipe.

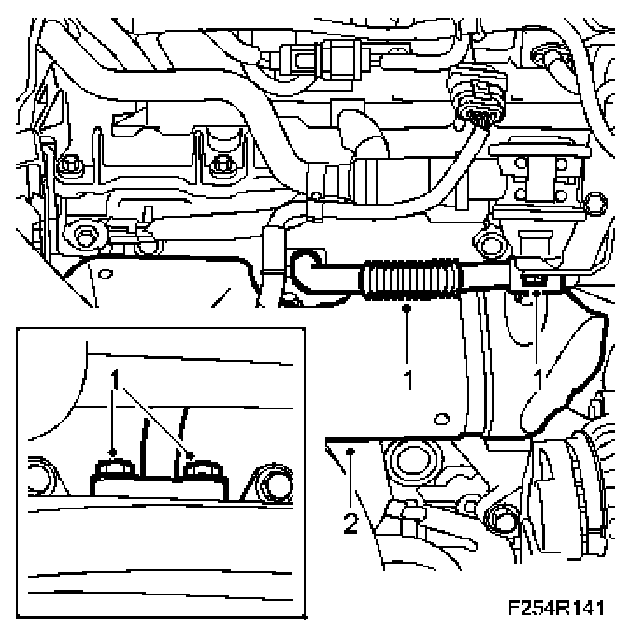

To Fit
1. Fit the pipe using new gaskets.

Tightening torque to exhaust manifold: 23 Nm (17 ft. lbs.)





2. Fit the heat shield on the exhaust manifold.

Tightening torque 10 Nm (7 ft. lbs.)

3. Lower the car.
4. Fit Front catalytic converter.
