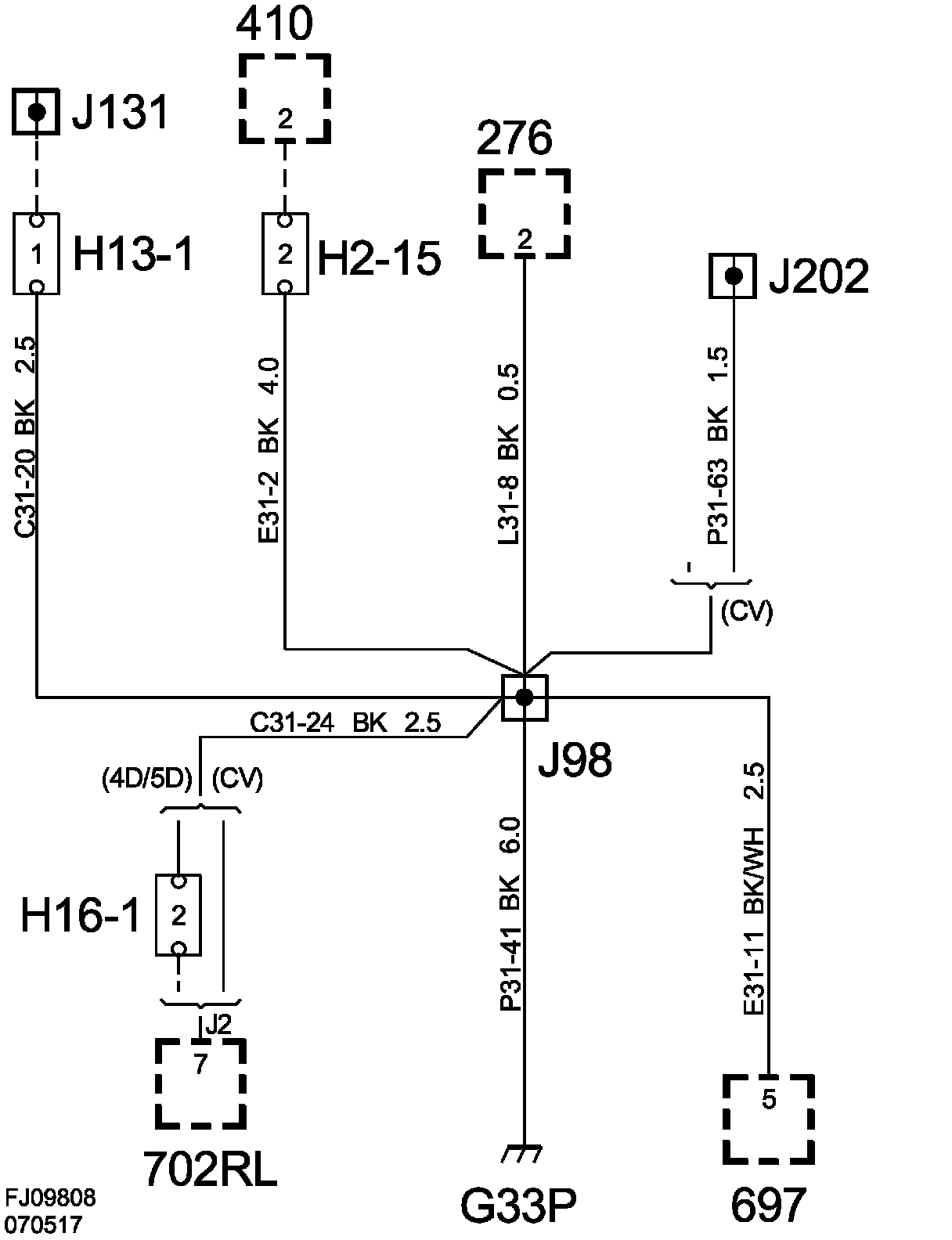

Crimp Connection J98, Main Wiring Harness

Location:

4D/5D: Approx. 250 mm from branching point grounding point G33P/S towards rear left door

CV: Approx. 120 mm from branching point to grounding point G33P/S towards LH rear door
