Crimp Connection J167, Seat Harness



Location

LH: Approx. 10 mm from branching point relay unit towards seat switch

RH: Approx. 50 mm from branching point relay unit towards seat switch

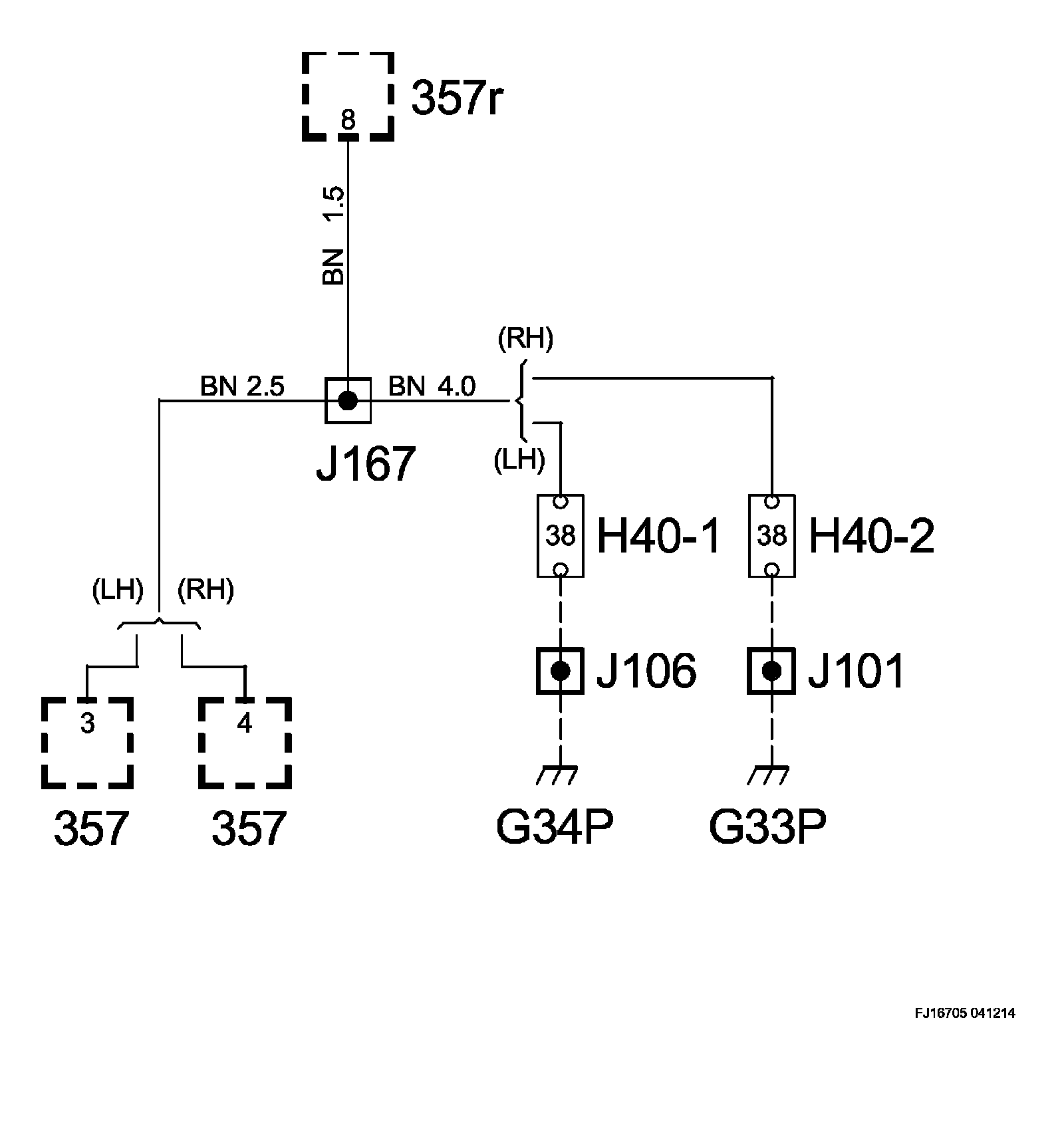

Crimp J167, Seat Harness:

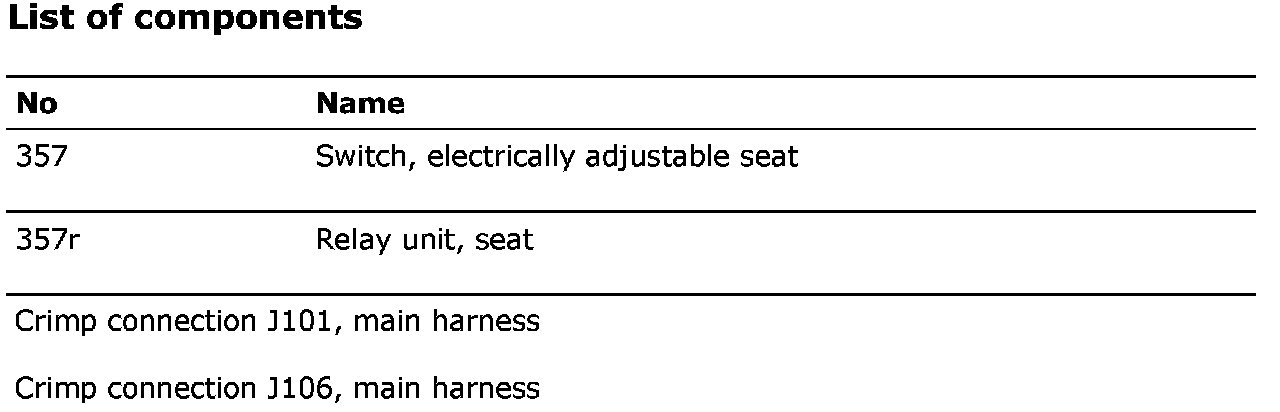

List Of Components:
