Crimp Connection J152, Rear Bumper Harness.



Location: Approx. 100 mm from branching point connector H8-5 towards right distance sensor.

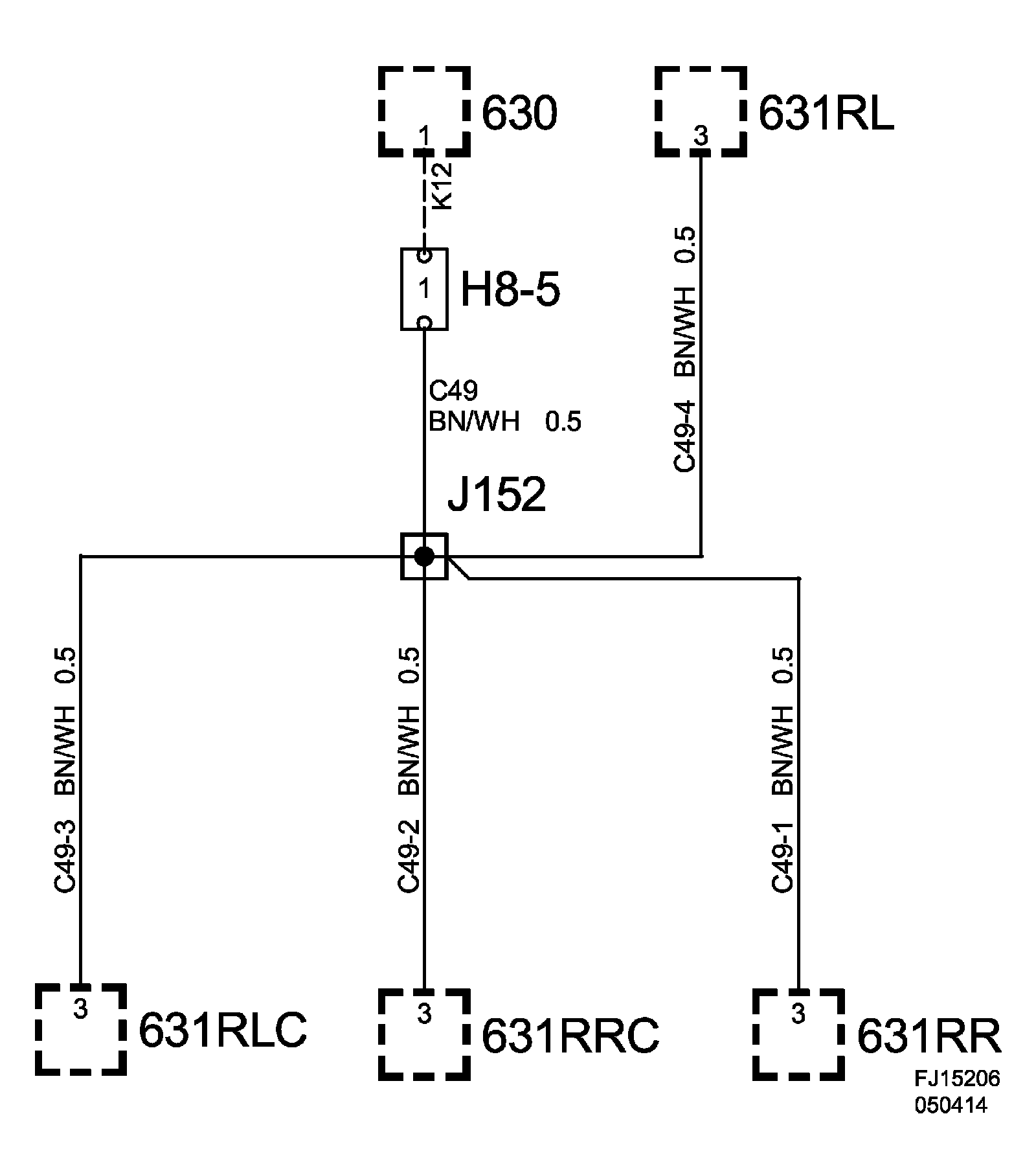

Crimp Connection J152, Rear Bumper Harness:

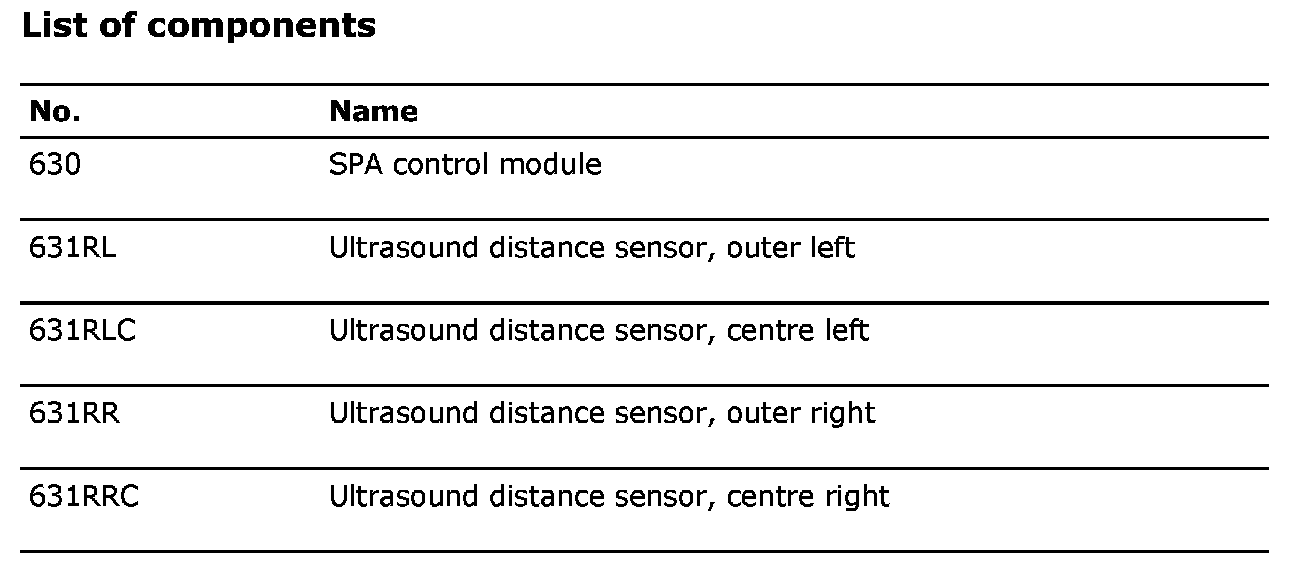

List Of Components:
