Grounding Point G34S

Location: At the floor below the right A-pillar (BK/WH cable)

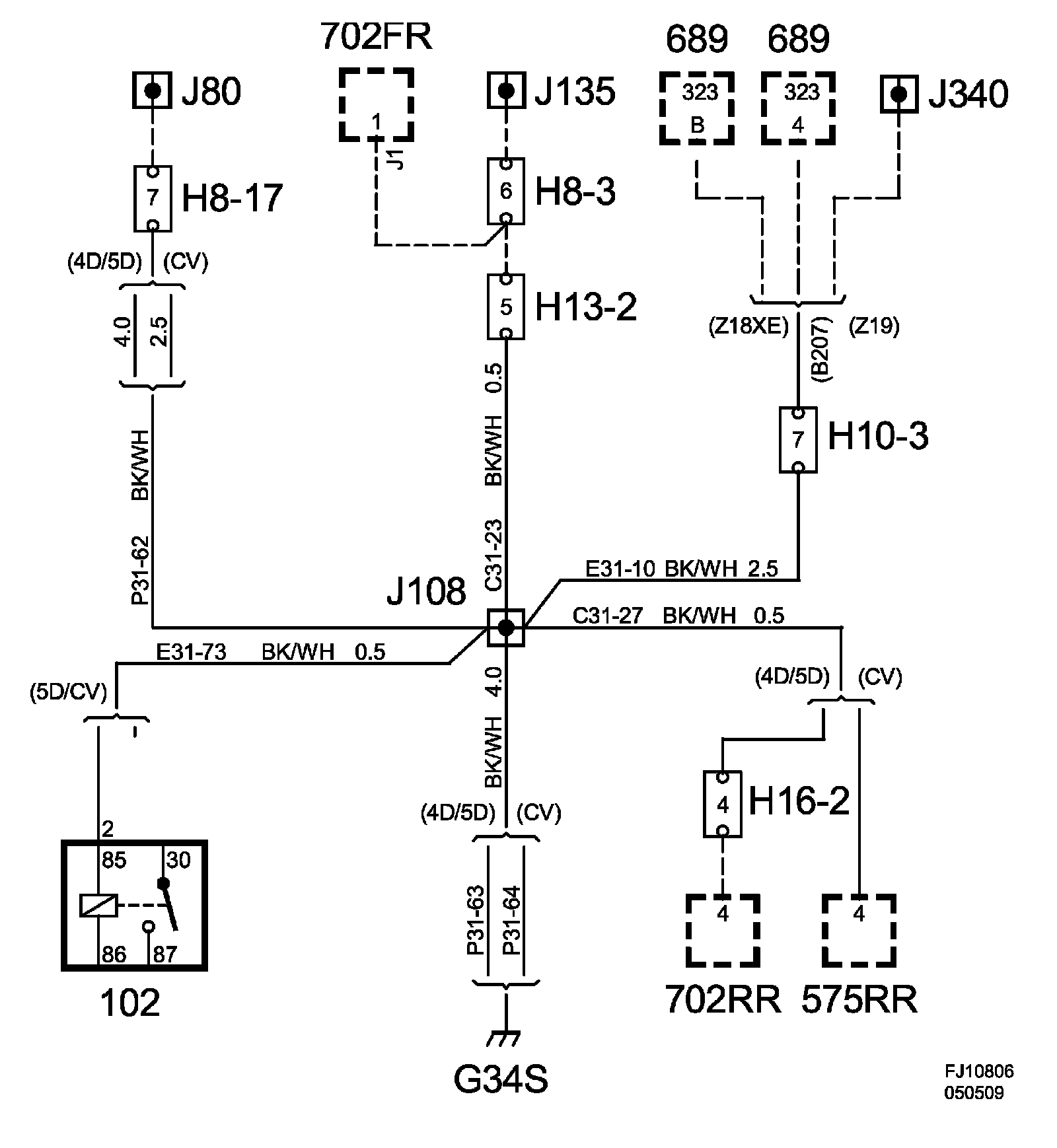

The grounding point is connected to grounding point G43 via the crimp connections J108 and J80.

Grounding Point G34S:

Crimp J108:

Connection To G43:

Connected Components:
