Mixed Air Temperature Sensor, LH Floor (217LH)

Coolant Temperature Sensor (202), T8

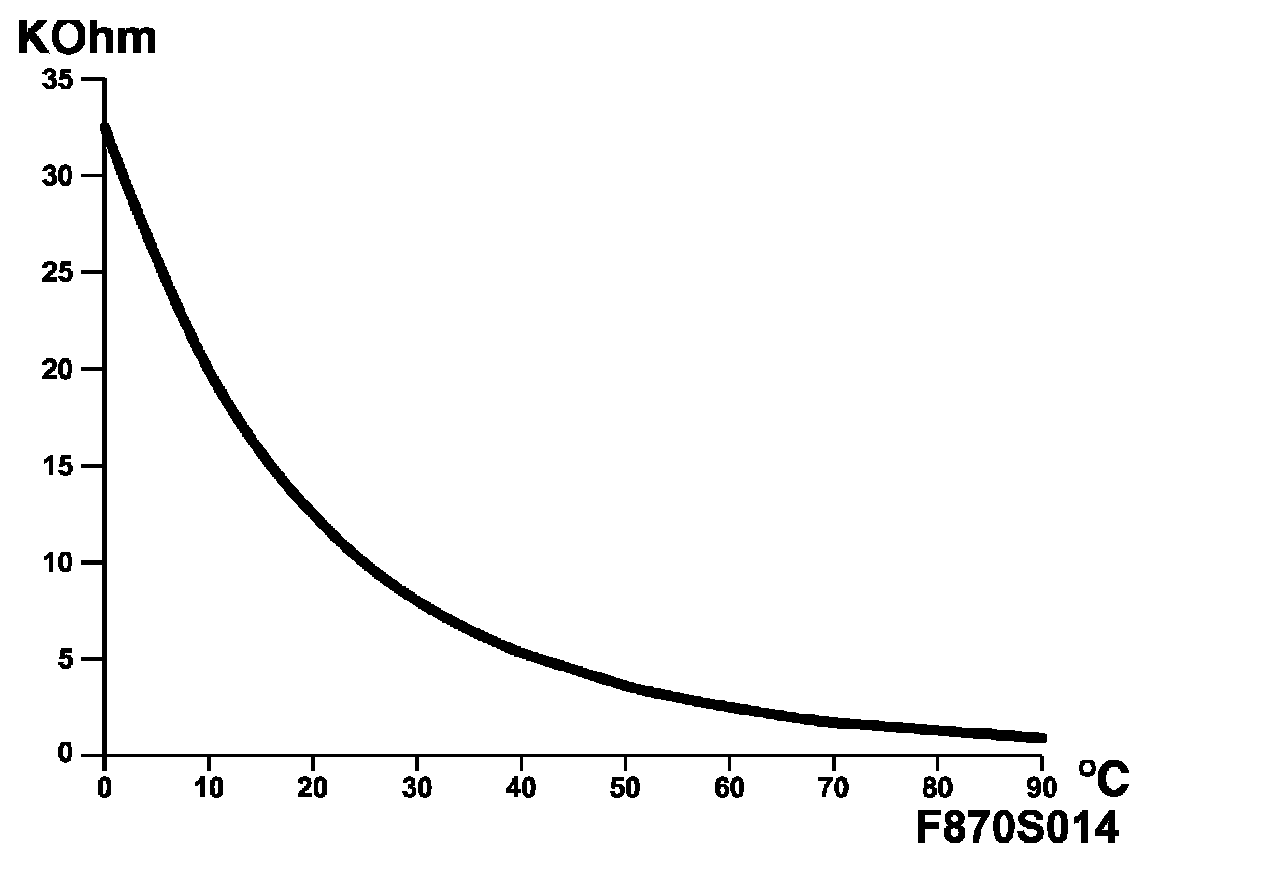

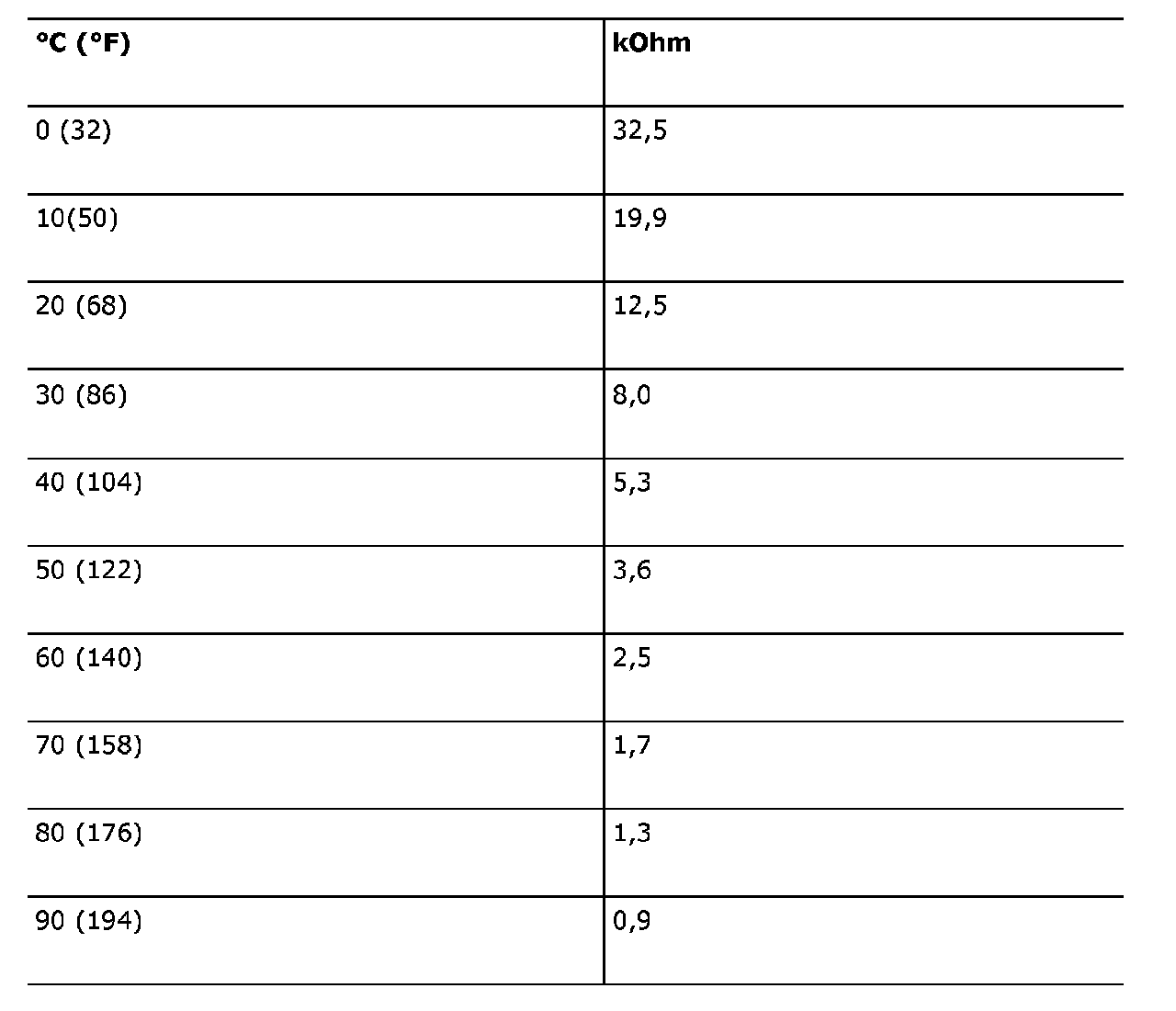

Mixed Air Temperature Sensor, LH Floor (217LH):

Voltage fed with 5 V through a 19.6 kOhm resistor in the control module.
