Saab
>>
2006
>>
9-3 (9440) V6-2.8L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Radio/Stereo
>>
System Diagram
>>

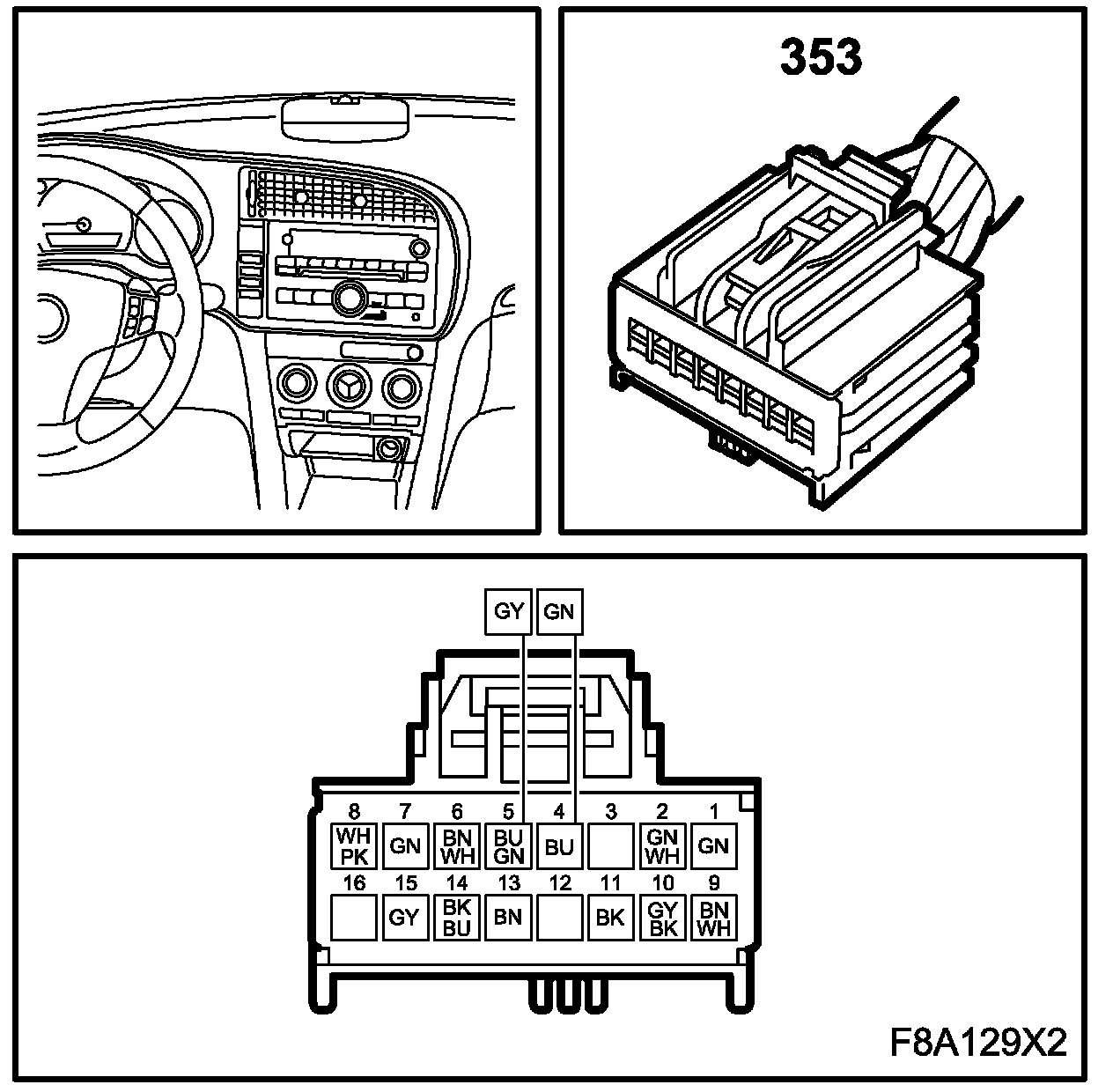

Main Unit, Radio (353), K16
Main Unit, Radio (353), K16
Main Unit, Radio (353), K16:
