Rear Differential Front Oil Seal
Rear Differential Front Oil SealREPLACEMENT
1. Set the vehicle on a lift.
2. Disconnect the ground cable from battery.
3. Move the select lever or gear shift lever to "N".
4. Release the parking brake.

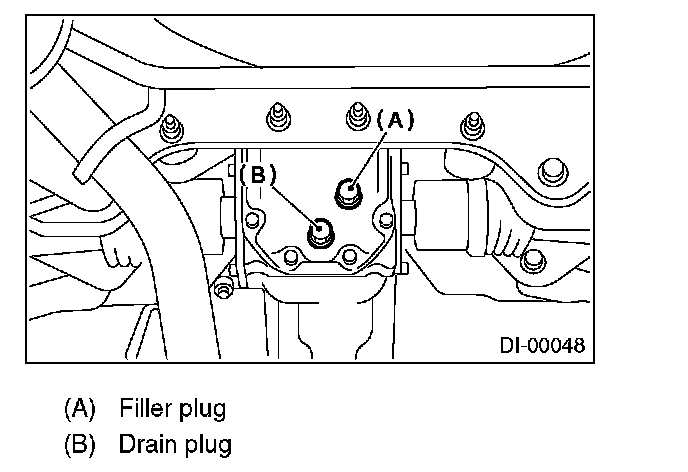

5. Remove the oil drain plug, and drain the gear oil.
6. Install the oil drain plug.
NOTE:
Apply liquid gasket to the drain plug.
Liquid gasket:
THREE BOND 1105 (Part No. 004403010) or equivalent.
Tightening torque:
49 Nm (5.0 kgf-m, 36.2 ft. lbs.)
7. Lift-up the vehicle.
8. Remove the rear exhaust pipe and muffler.
9. Remove the propeller shaft from body.

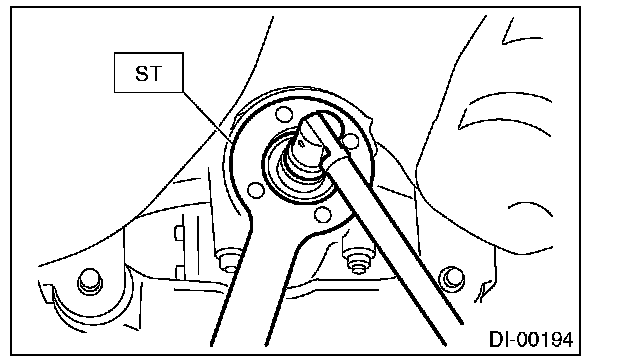

10. Remove the self-locking nut while holding the companion flange with ST.
Except STI model
ST 498427200 FLANGE WRENCH
STI model
ST 18633AA000 WRENCH COMPL

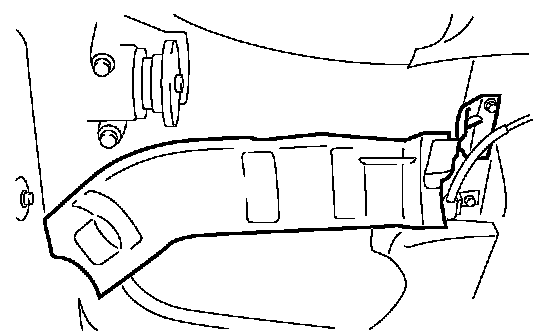

11. Remove the center heat shield cover.

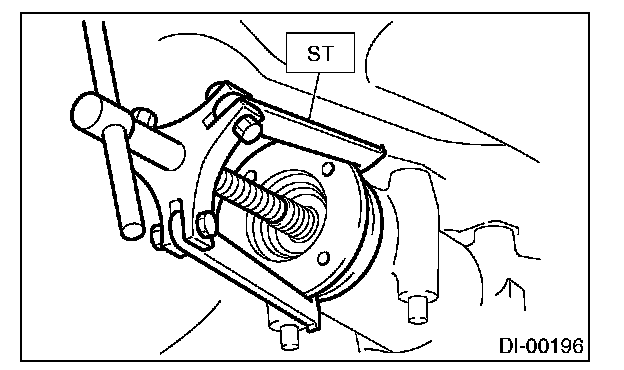

12. Extract the companion flange using ST.
ST 399703600 PULLER ASSY

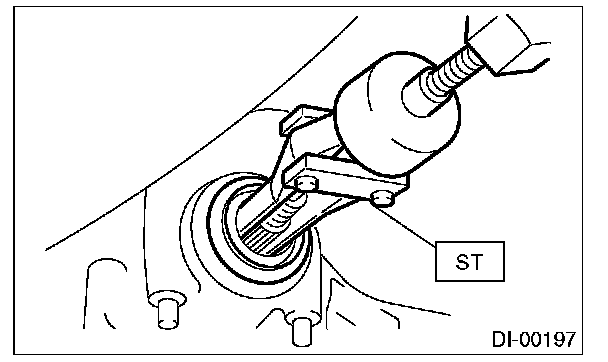

13. Remove the oil seal using ST.
ST 398527700 PULLER ASSY

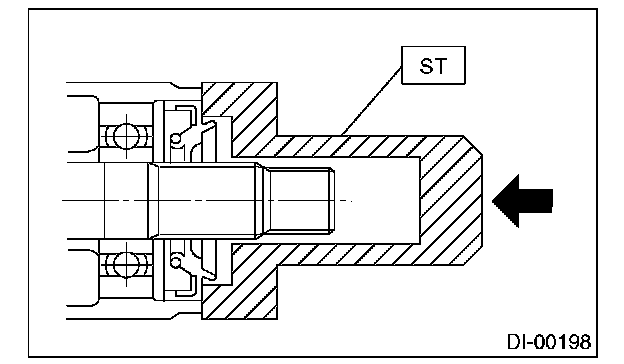

14. Fit a new oil seal using ST.
ST 498447120 INSTALLER
15. Install the companion flange.
NOTE:
Use a plastic hammer to install the companion flange.
16. Apply Lock Tite to the bolt threads of drive pinion shaft, and the seating surface of new self-locking nut.
Lock Tite:
THREE BOND 1324 (Part No. 004403042)

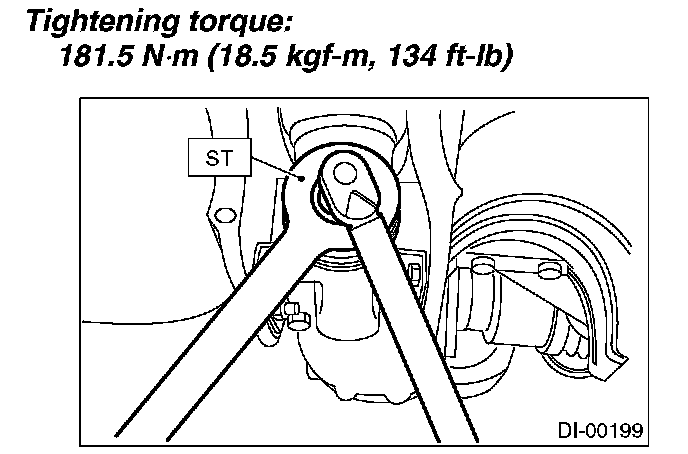

17. Tighten the self-locking nut within the specified torque range so that the preload of companion flange becomes the same as that before replacing oil seal.
Except STI model
ST 498427200 FLANGE WRENCH
STI model
ST 18633AA000 WRENCH COMPL
NOTE:
Use a new self-locking nut.
18. Hereafter, reassemble in the reverse order of disassembly.
19. Fill the differential carrier with gear oil to the bottom of filler plug hole after installing.
