Hydraulic Hose: Service and Repair

Clutch Pipe and Hose

REMOVAL

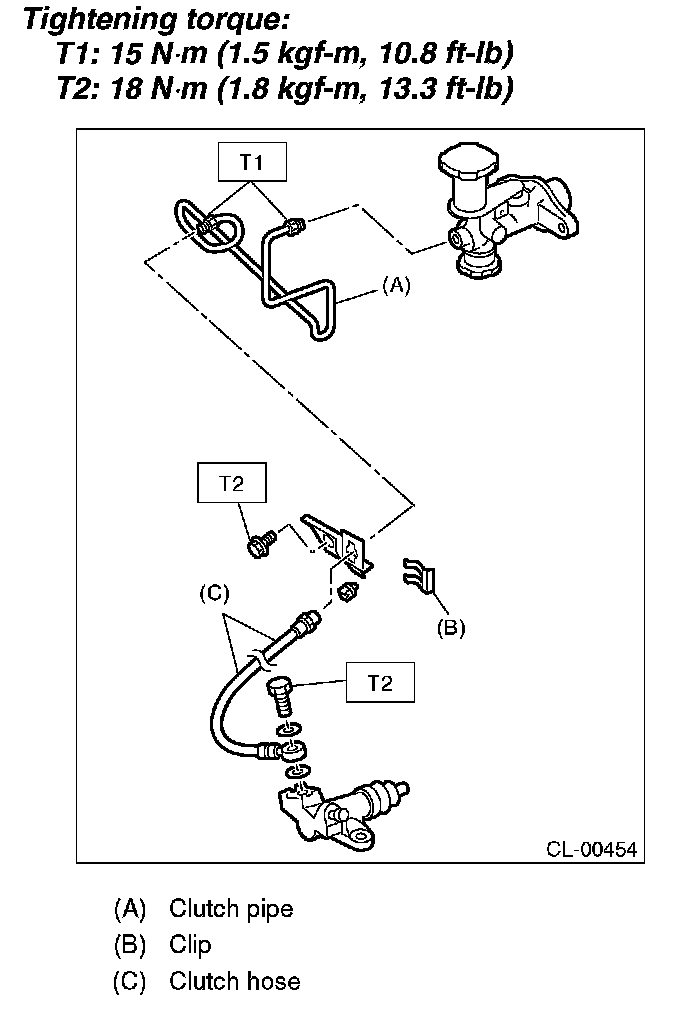

1. Remove the air intake chamber and air intake duct. (Non-turbo model)
2. Remove the intercooler. (Turbo model)
3. Drain the clutch fluid.
4. Remove the clutch pipe from the clutch hose and master cylinder.

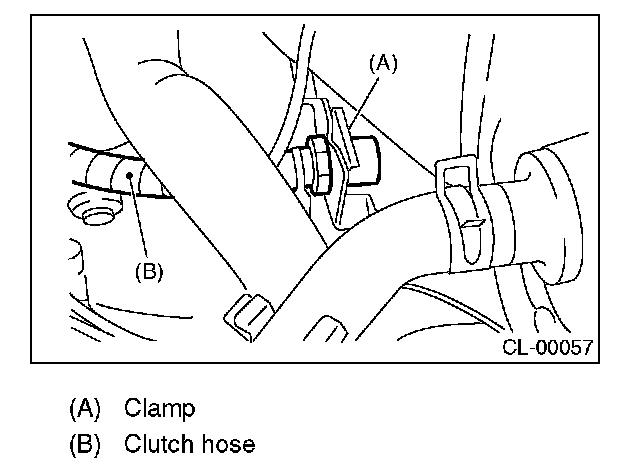

5. Pull out the clamp, then remove the clutch hose from bracket.





6. Remove the hose from operating cylinder.
7. Remove the bracket.

INSTALLATION
1. Install in the reverse order of removal.

NOTE: Bleed Air Of The Clutch Fluid.





INSPECTION
1. Check the pipes and hoses for cracks, breakage, or damage. Check the joints for fluid leakage. If any cracks, breakage, damage or leakage is found, repair or replace the applicable pipe or hose.
