Automatic Transmission (5AT)
>>
Transmission Control Module (TCM)
>>

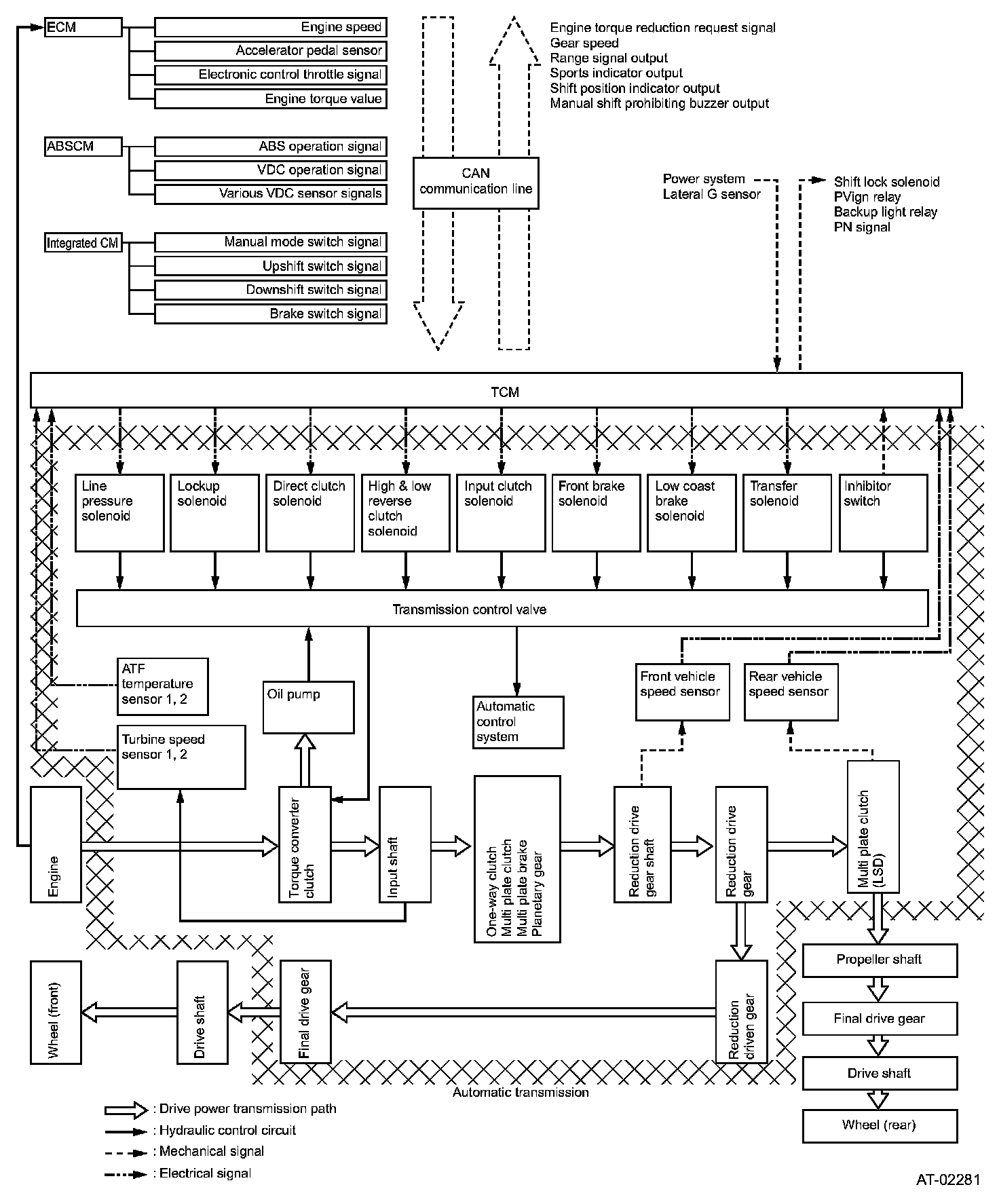

Schematic Diagram
Schematic Diagram
Schematic Diagram:
