Overhaul

Fuel Pump

DISASSEMBLY

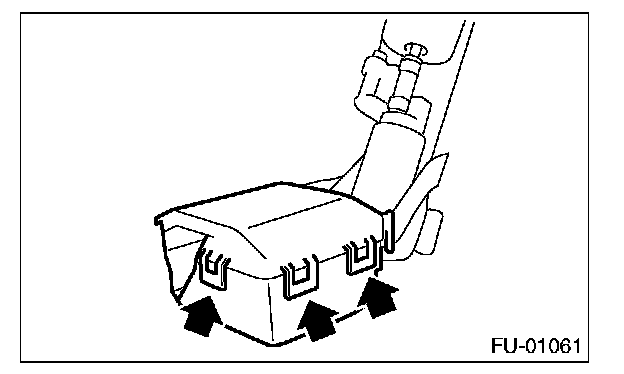

1. Separate the chamber into upper and lower parts, and then remove them.




2. Disconnect the connector of fuel pump. FU-0106




3. Remove the screw and remove the fuel pump and fuel filter.

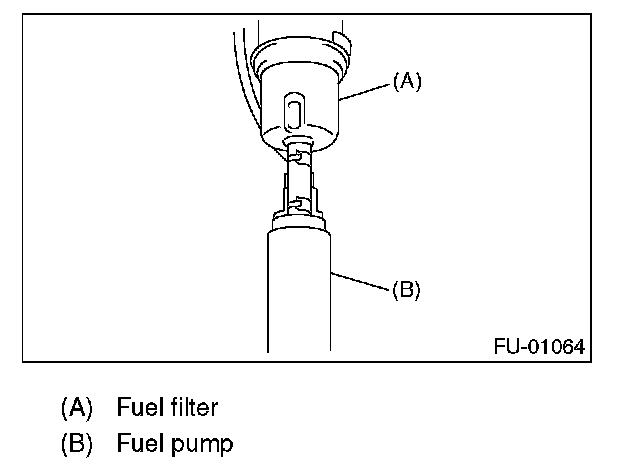

4. Separate the fuel filter from fuel pump.

ASSEMBLY
Assemble in the reverse order of disassembly.
