Malfunction Indicator Light Does Not Blink At A Cycle of 3 Hz.
MALFUNCTION INDICATOR LIGHT DOES NOT BLINK AT A CYCLE OF 3 Hz.DIAGNOSIS:
^ The malfunction indicator light circuit is open or shorted.
^ Test mode connector circuit is in open.
TROUBLE SYMPTOM:
When in inspection mode, malfunction indicator light does not blink at a cycle of 3 Hz.

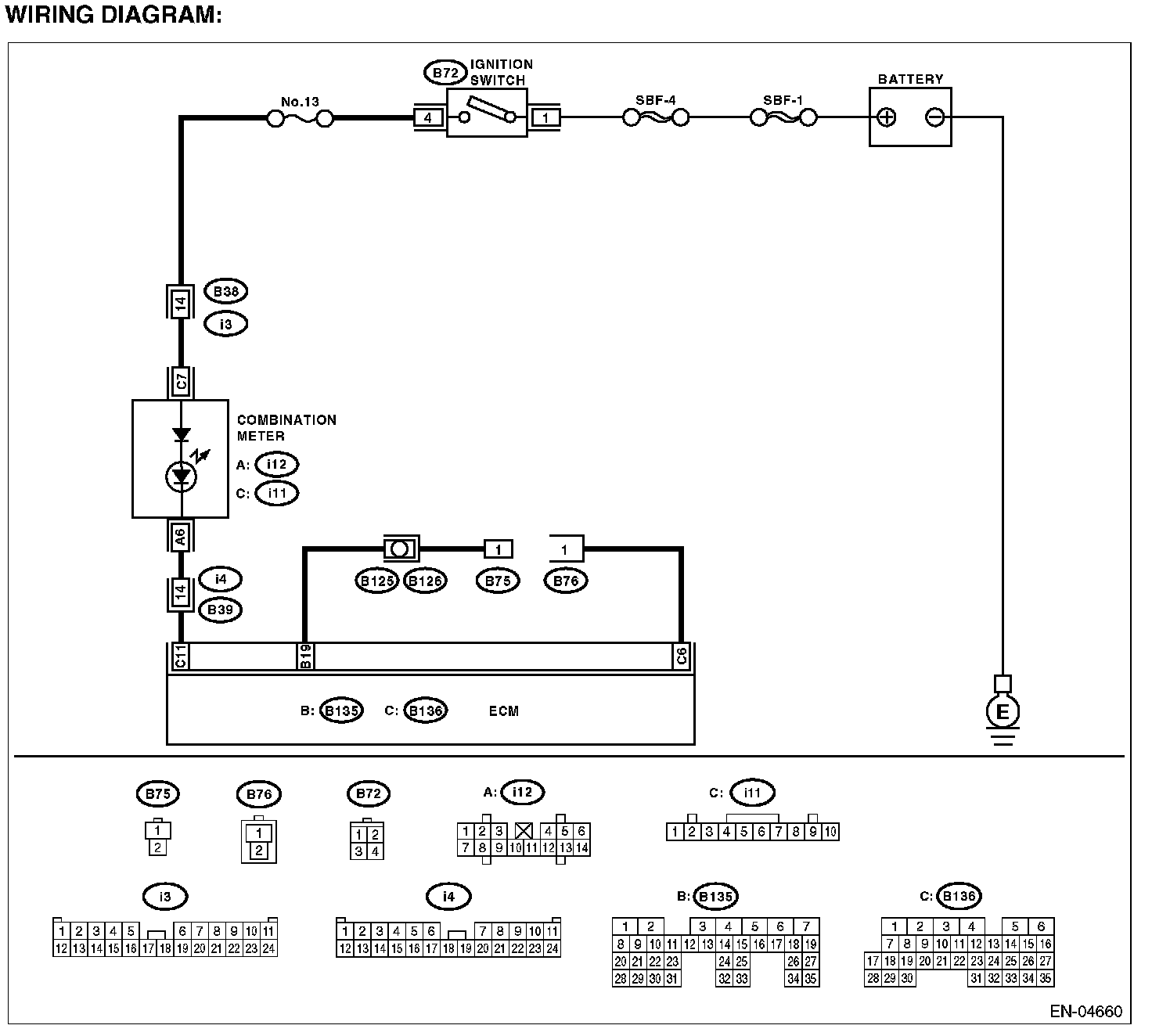

Wiring Diagram:

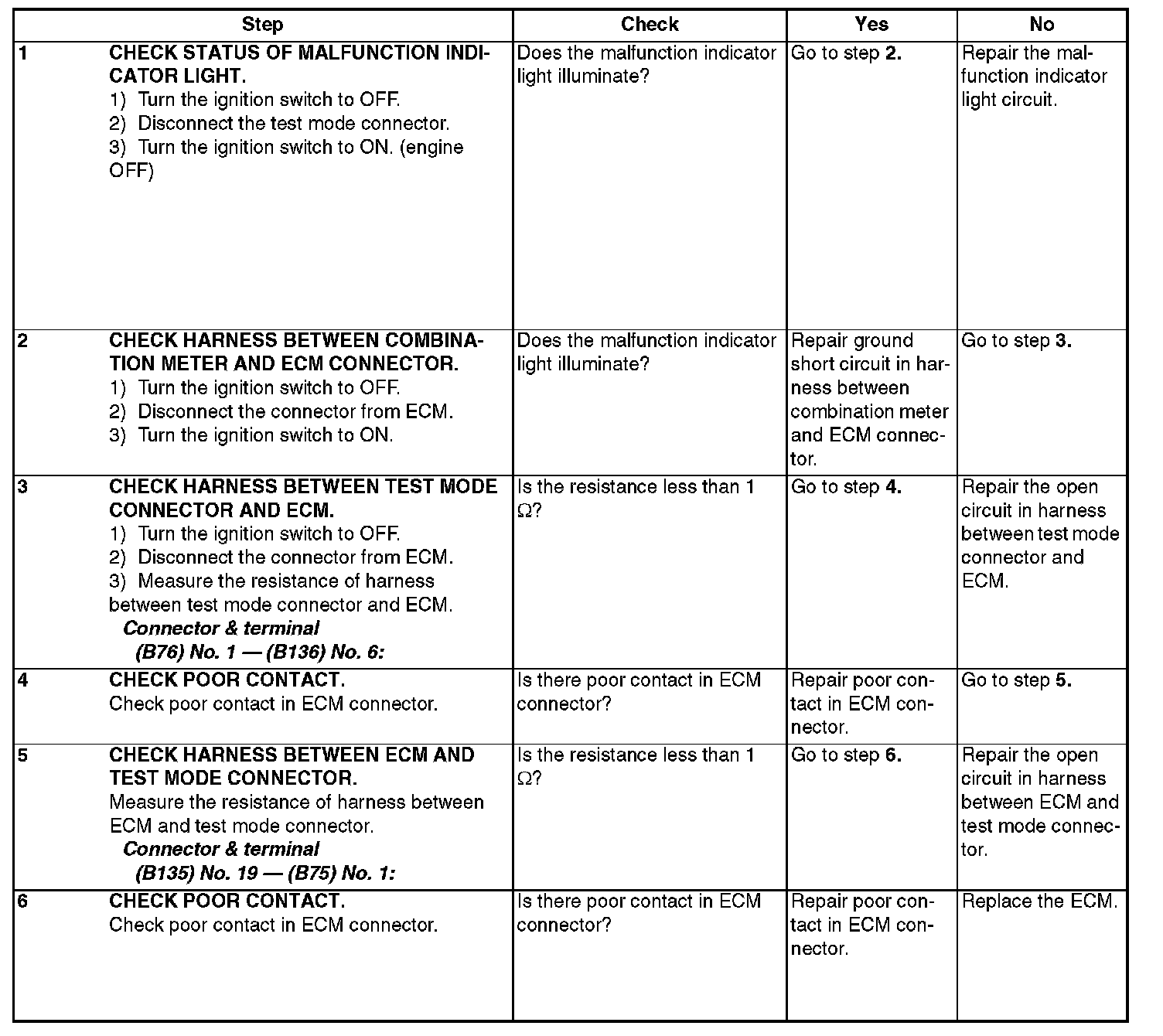

Step 1 - 6:
