Engine Mount: Service and Repair

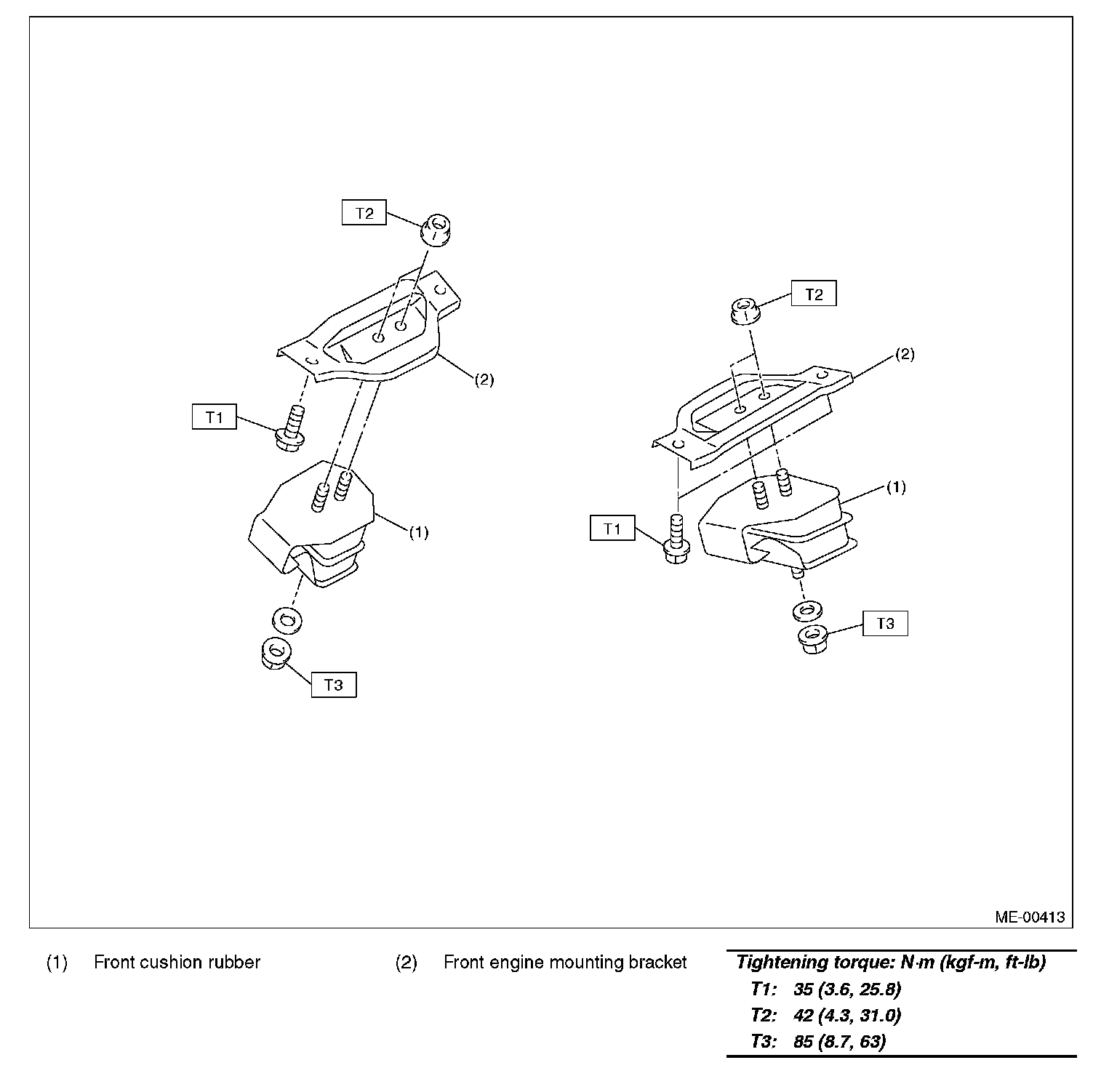

Engine Mounting

ENGINE MOUNTING:

Removal
1. Remove the engine assembly.
2. Remove the engine mounting from engine assembly.

Installation
1. Install in the reverse order of removal.
Tightening torque:
Engine mounting: 35 Nm (3.6 kgf-m, 25.8 ft. lbs.)

Inspection
1. Make sure that no crack or other damages do not exist.
