Home >> Saab >> 2005 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Mounted Controls Assembly

Steering Mounted Controls Assembly



Component Connector End Views

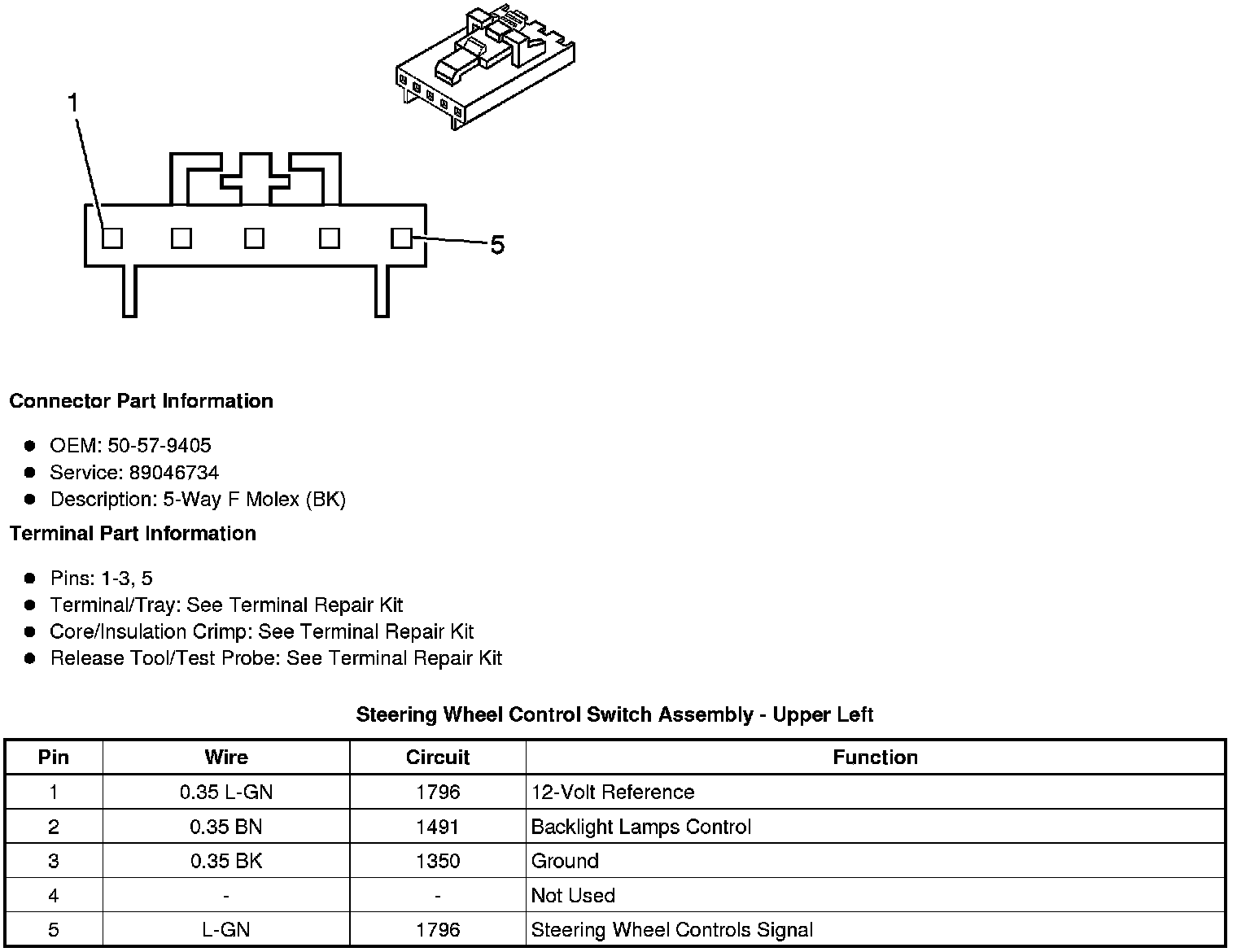

Steering Wheel Control Switch Assembly - Upper Left

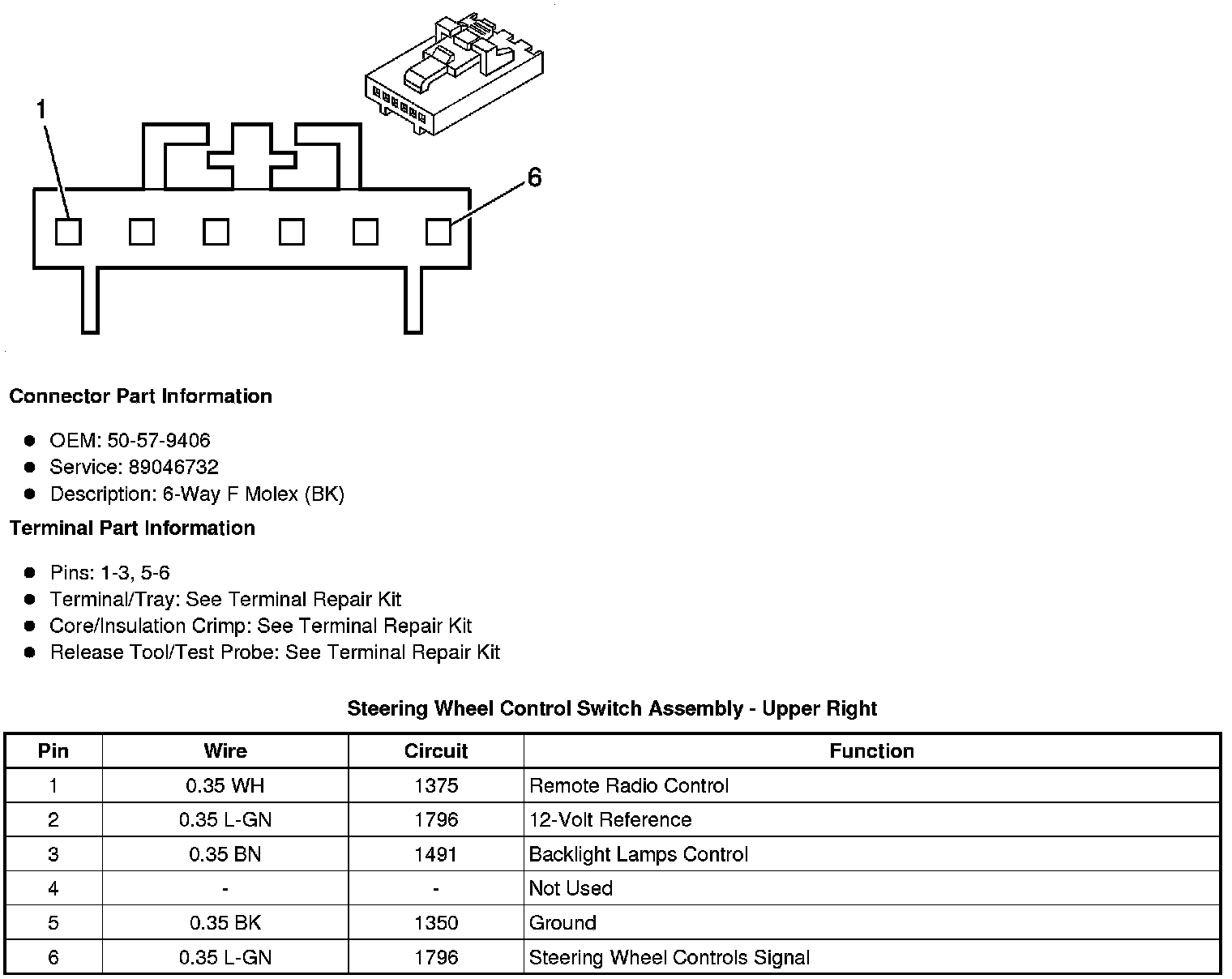

Steering Wheel Control Switch Assembly - Upper Right
