Clutch, M/T
>>
System Diagram
>>
Master Cylinder
Master Cylinder

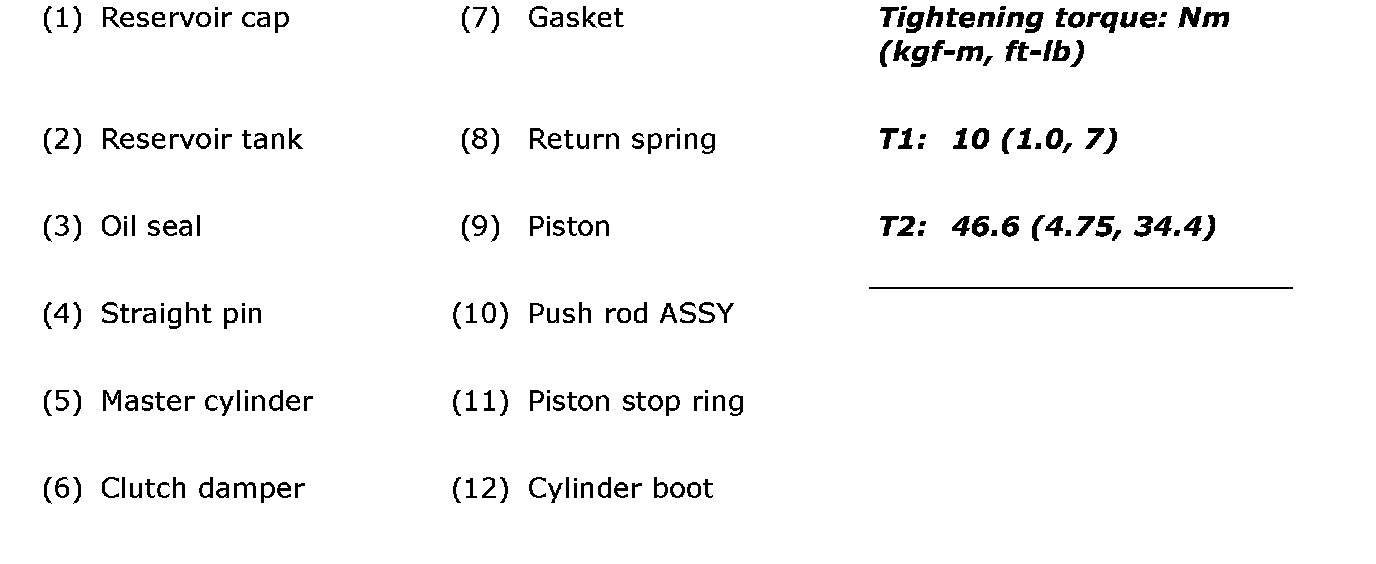

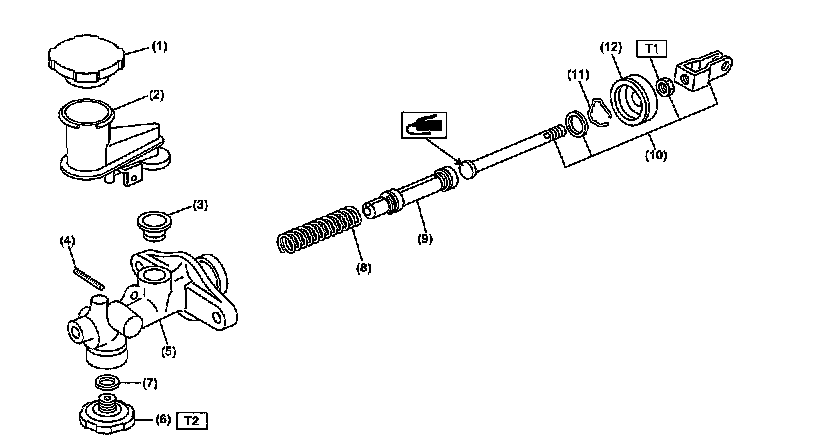

Master Cylinder (Part 1):
Master Cylinder (Part 2):
