Clutch, M/T
>>
System Diagram
>>
Clutch Assembly
Clutch Assembly

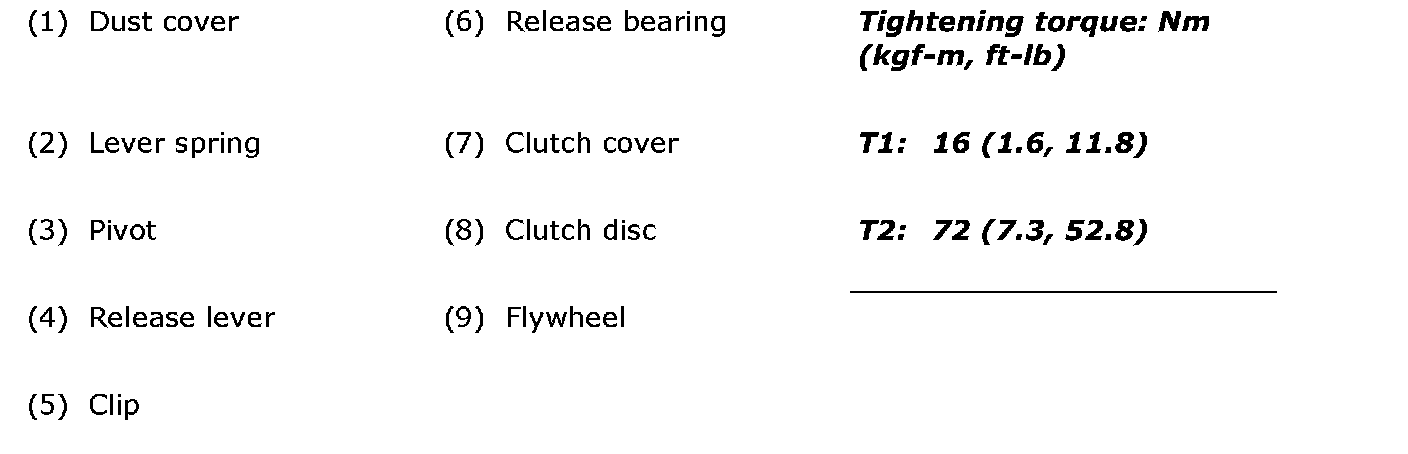

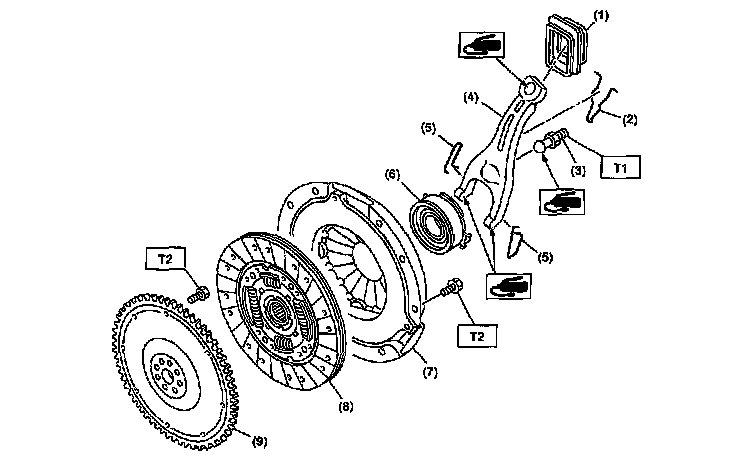

Clutch Assembly (Part 1):
Clutch Assembly (Part 2):
