Traction Control System V6

TCS (Traction Control System) V6: Component Location:

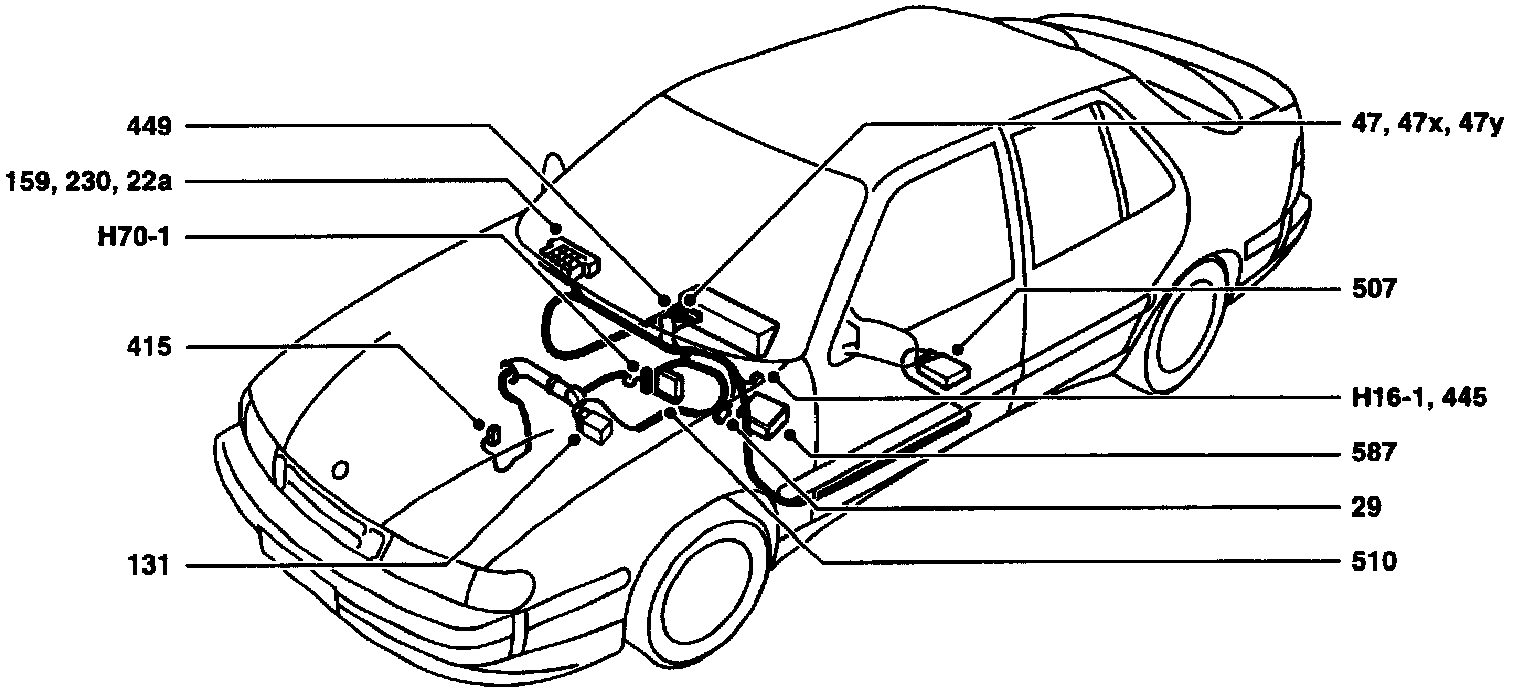

COMPONENT LOCATION VIEW

TCS (Traction Control System) V6: Component ID:

COMPONENT ID
22a Fuse board behind the access panel in the glove box.
29 Brake light switch beside the brake pedal.

In The Main Instrument Display Panel
47x TCS indicator lamp
47y TCS OFF indicator lamp.
159 Distribution terminal (+15 circuit) in the main fuse box behind the glove box access panel.
230 Distribution terminal (+30 circuit) in the main fuse box behind the glove box access panel.
291 ABS control module on the battery tray.
415 TTS clutch actuator unit on the throttle body.
445 (H16-1) Diagnostics test socket, below the steering wheel.
449 TCS ON/OFF switch on the dashboard.
507 TCS control module, V6, under left-hand seat.
508 Cruise Control system control module, adjacent to the battery tray.
510 Motronic M2.8.1 control module, in the engine bay behind the bulkhead partition.
587 Motronic M5.2 control module on a bracket under the dashboard.

70-Pin Connector
H70-1 In the engine bay, behind the bulkhead partition.

Grounding Points
G5 Grounding point, under the rear seat on the left.
G8 Grounding point, on the stiffening member under the left-hand loudspeaker grille.
