Torque Rod Bushing

REAR

Removal
1. Lift the car.
2. Remove the wheel.
3. Remove the [1][2]torque arm from the car.

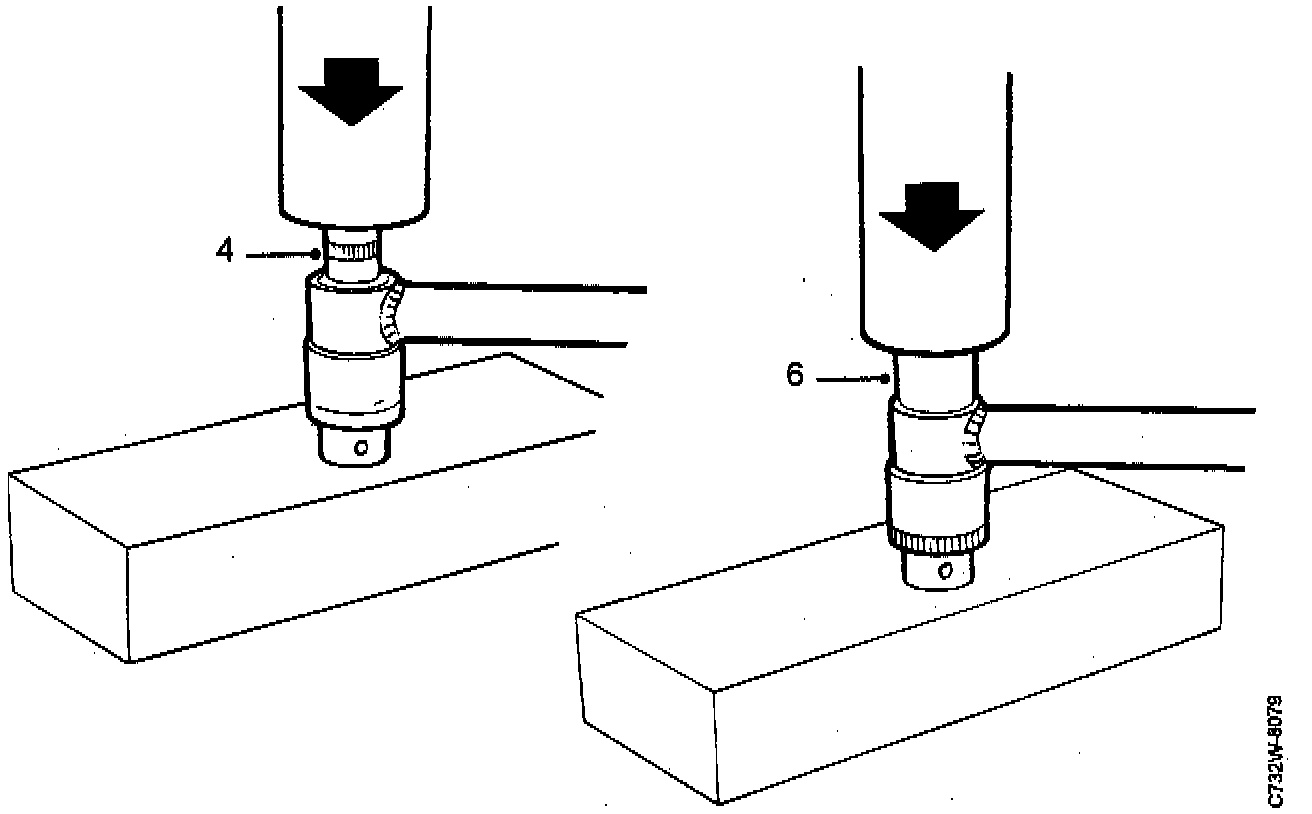

4. Use sleeve No. 24 as a dolly and press against the inner spacer of the bush with sleeve No. 14, see picture.

Installation
1. Lubricate the rear fitting lug and the bush with Vaseline.

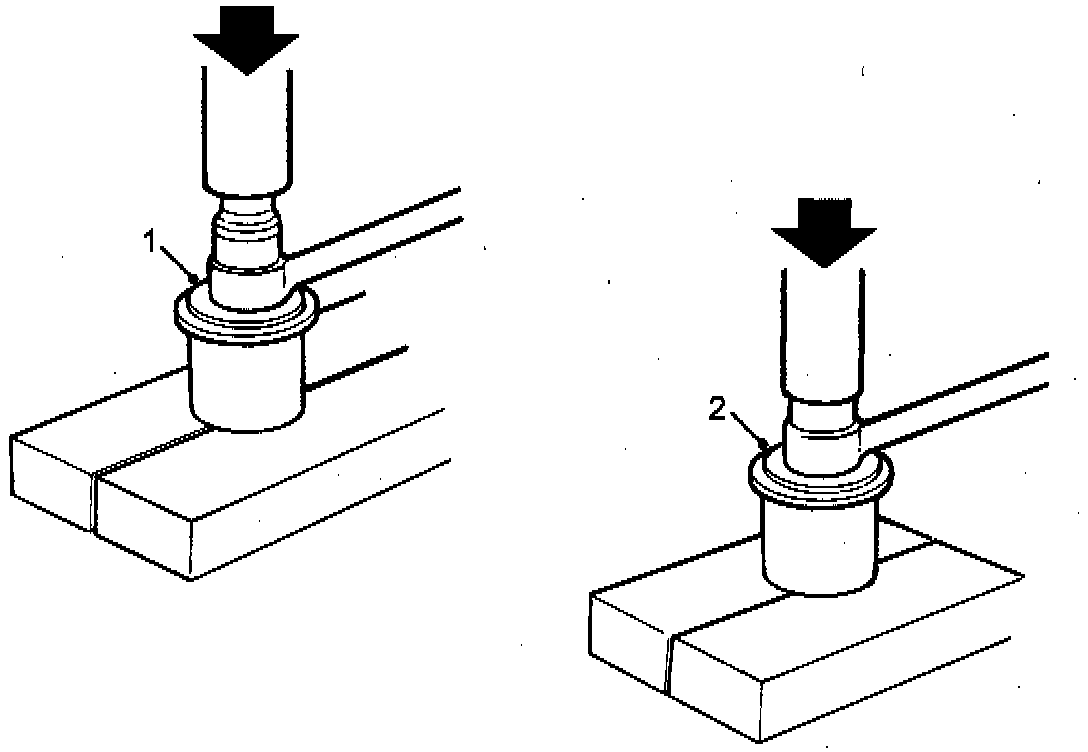

2. Use sleeve No. 24 as a dolly and push in the new bush, see picture.





FRONT

Replacement
1. Press out the bush using sleeve No. 30. (Tool 89 96 464 can be used as a dolly.)
2. Push in the new bush. Tool No. 89 96 464 can be used as a dolly.
