9000 CS L4-2290cc 2.3L DOHC Turbo EFI
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Lateral Stabilizer Rod
>>
Service and Repair
>>
Rod
Rod
REMOVAL
1.
Lift the car.
2.

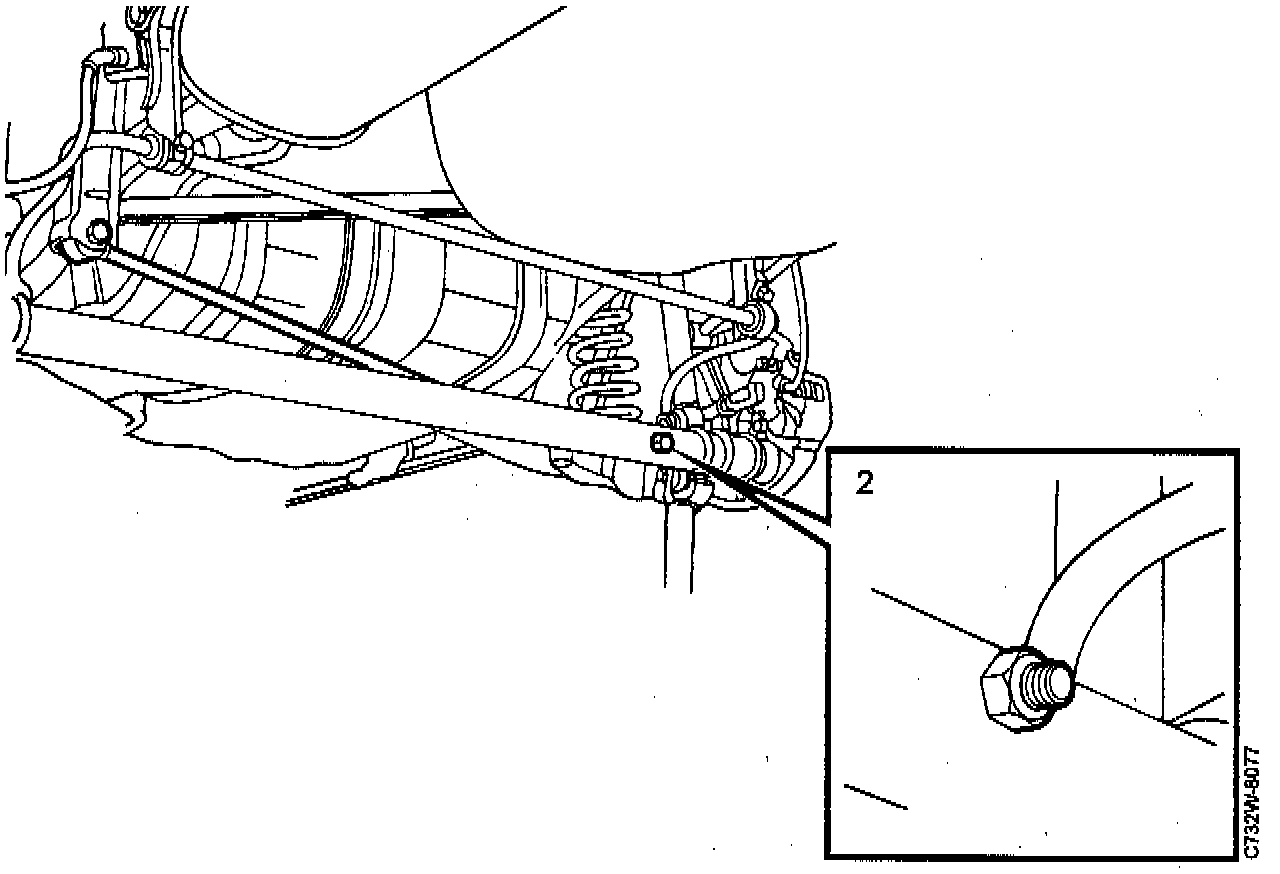

Remove the
panhard rod
from the rear axle.
3.
Unfasten the rod from the bracket on the body.
INSTALLATION
1.
Fit the rod to the bracket on the body.
2.
Fit the
panhard rod
to the rear axle.
3.
Lower the car.
