Bracket






REMOVAL
1. Lift the car.

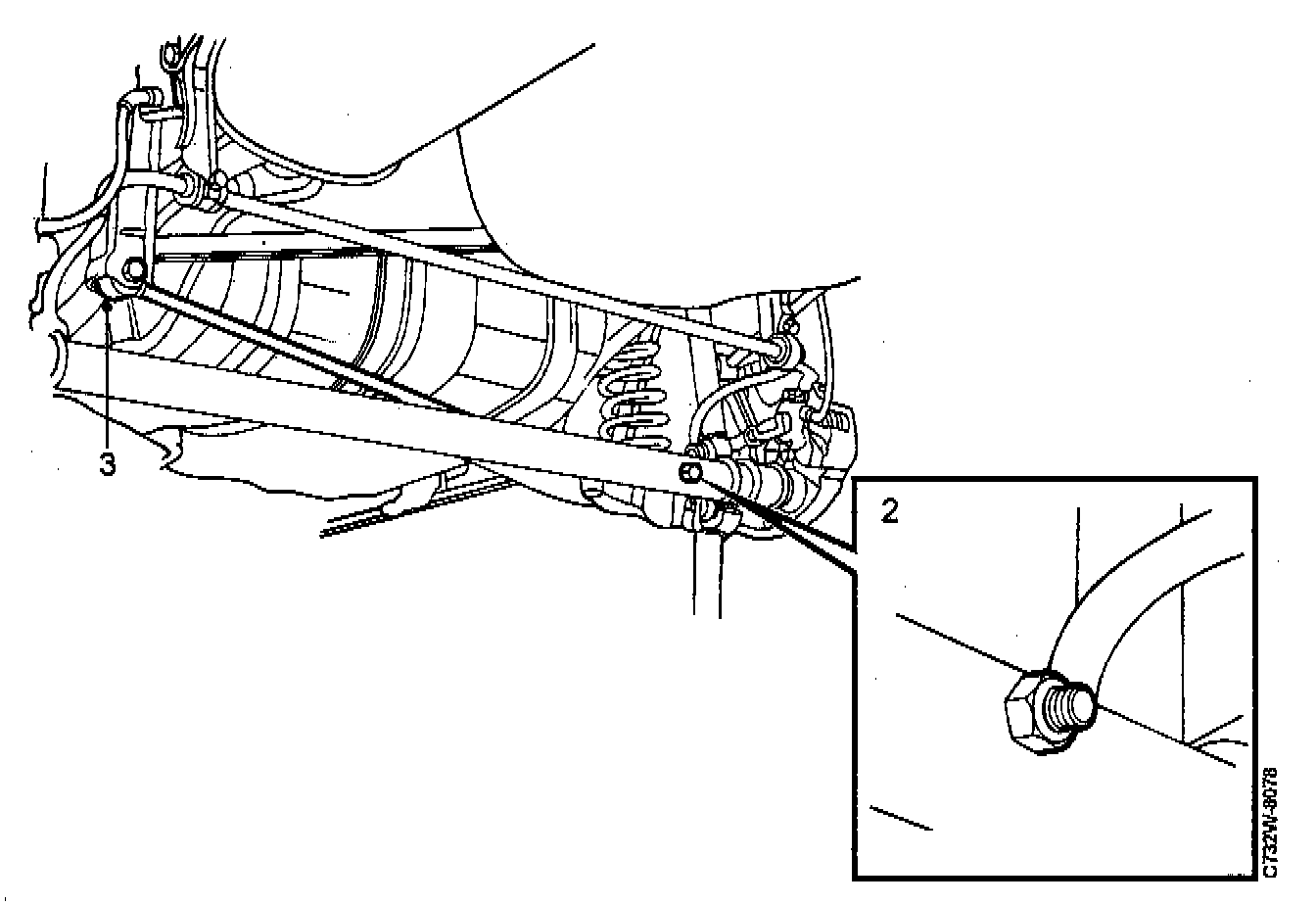

2. Remove the panhard rod from the rear axle.
3. Unfasten the rod from the bracket on the body.
4. Remove the bracket from the body.

INSTALLATION
1. Fit the bracket to the body and fit the rod to the bracket.
2. Fit the panhard rod to the rear axle.
3. Lower the car.
