Trailer Lamps: Locations

Pre-installed Trailer Wiring: Component Location:

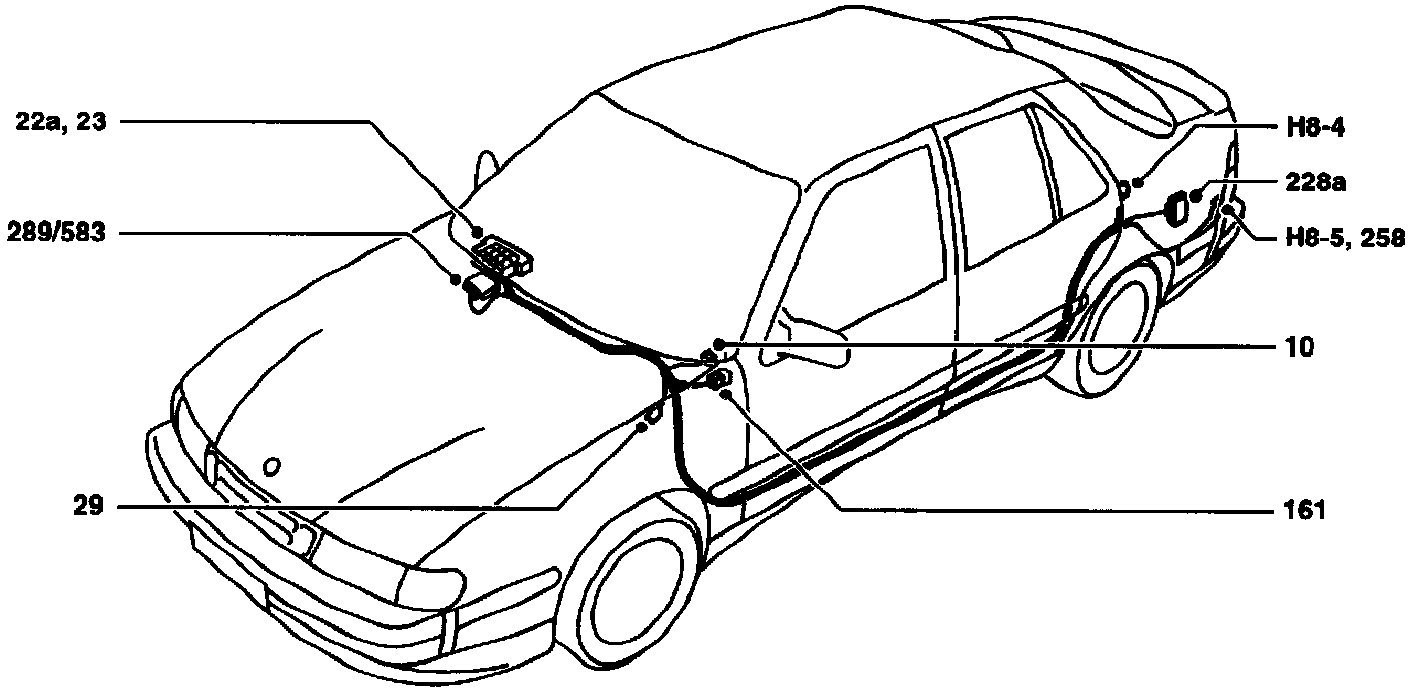

COMPONENT LOCATION VIEW

Pre-installed Trailer Wiring: Component ID:

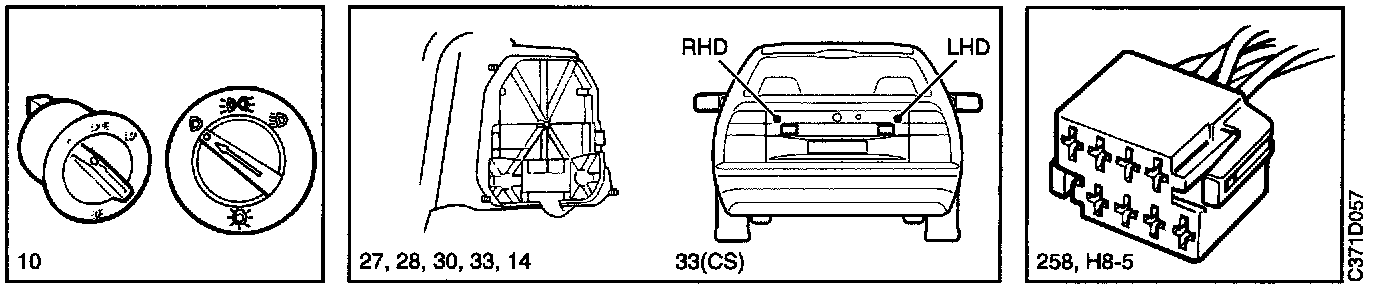

COMPONENT ID
10 Lights switch on dashboard between steering wheel and driver's door.
22a Fuse board behind the access panel in the glove box.
23 Flasher relay in main fuse box behind the glove box.
29 Brake light switch beside the brake pedal.
161 Switch, rear fog lights, between the steering wheel and driver's door.
228a Filament monitor, rear bulbs, in luggage compartment on the left-hand side.
258 (H8-5) 8-pin connector for trailer lighting, in luggage compartment below the left-hand rear light cluster.
289 Control module, anti-theft alarm, on the right-hand side under the dashboard behind the knee shield.
583 Control module, anti-theft alarm with immobilizer, on the right-hand side under the dashboard behind the knee shield.

8-Pin Connector
H8-4 By the left-hand rear wheel housing.
