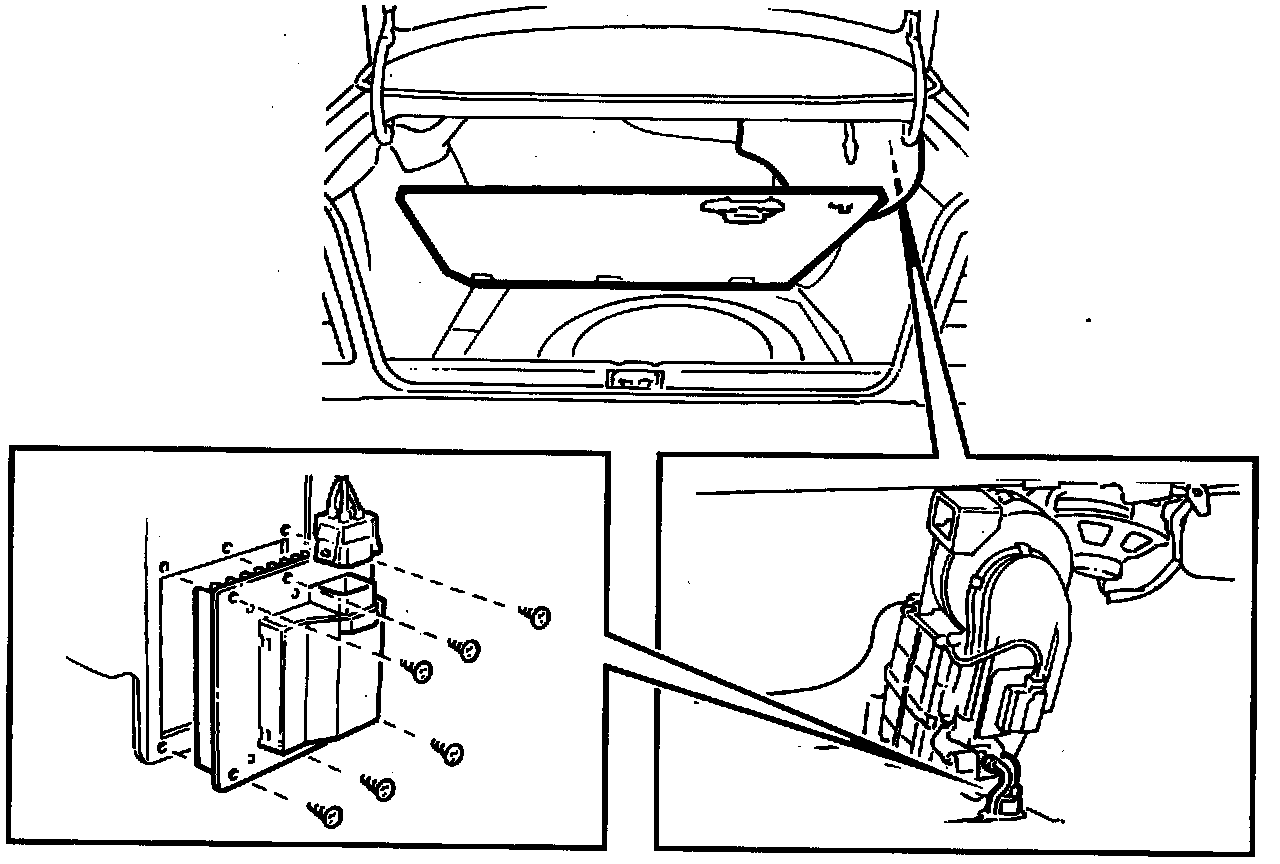

Rear ACC Fan Control Module, Changing

To Remove
1 Remove the luggage compartment floor.
2 Remove the trim from around the evaporator casing.
3 Unplug connector.
4 Unscrew control module.

To Install
5 Screw control module onto evaporator housing.
6 Plug in the connector.
7 Reinstall the trim around the evaporator housing.
8 Reinstall the luggage compartment floor.
