Rear

Manufacturer: Ate
Type: Disc Brake With Sliding Hydraulic Body
Piston Diameter: 33 mm (1.26 inch)

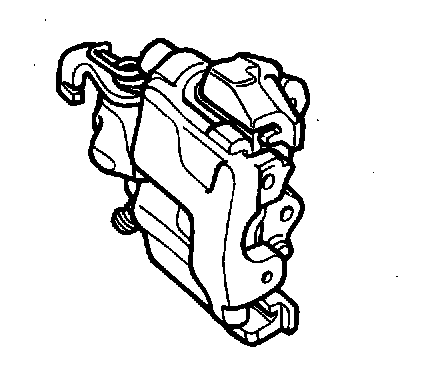

The design of the brake caliper for the rear wheels is the same as that for the front wheels but with the addition of a mechanical device for the handbrake system (see description under "Parking Brake System").
