Brake Pedal Assy: Service and Repair

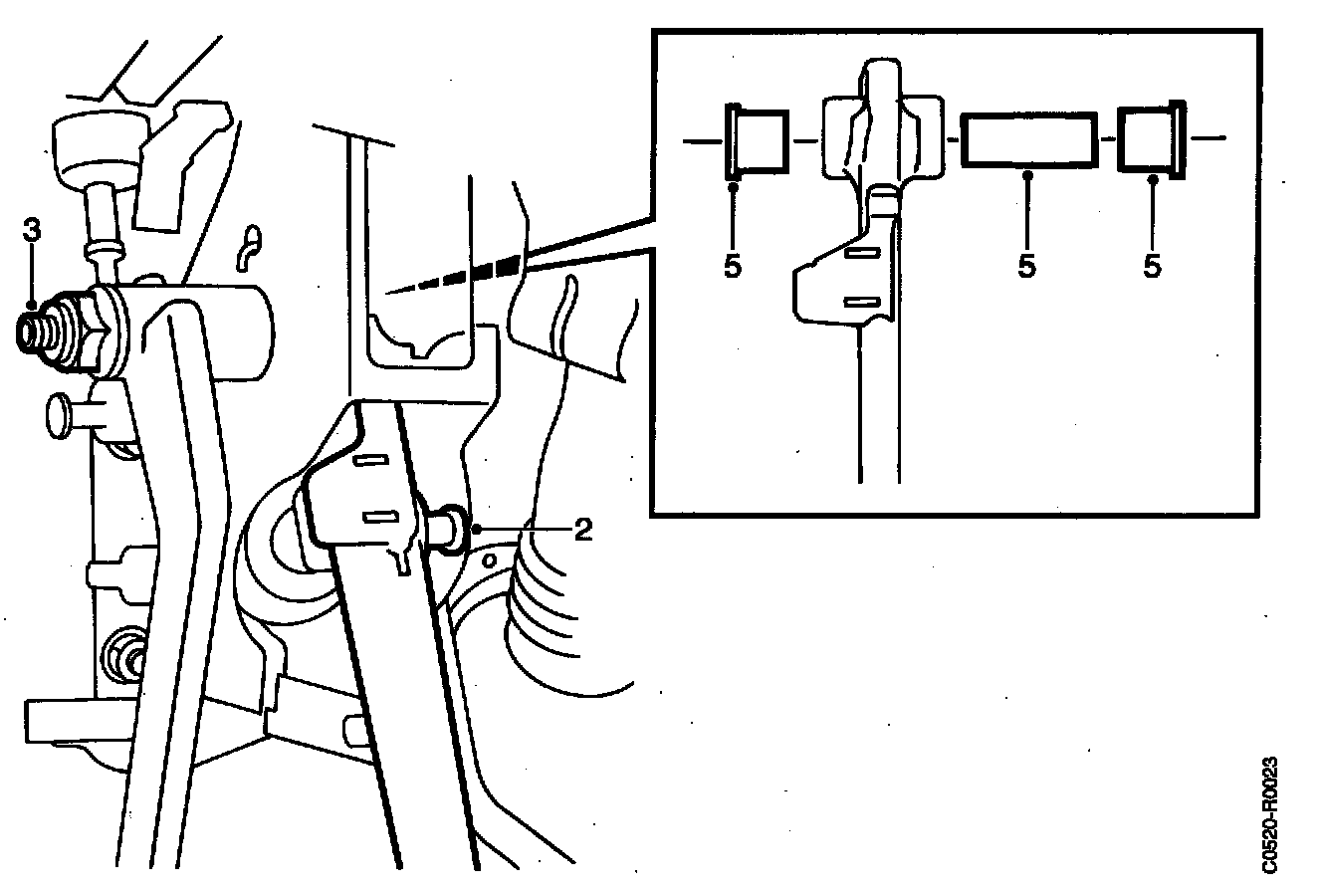

Removal
1. Remove the lower section of the dashboard
2. remove the circlip and clevis pin to the brake servo unit's pushrod.
3. Remove the pedal pivot bolt together with the pedal.
4. Press in the ends of the brake pedal return spring and remove the pedal.
- Note the position of the return spring.
5. Remove the plastic bushes and spacer sleeve in the pedal

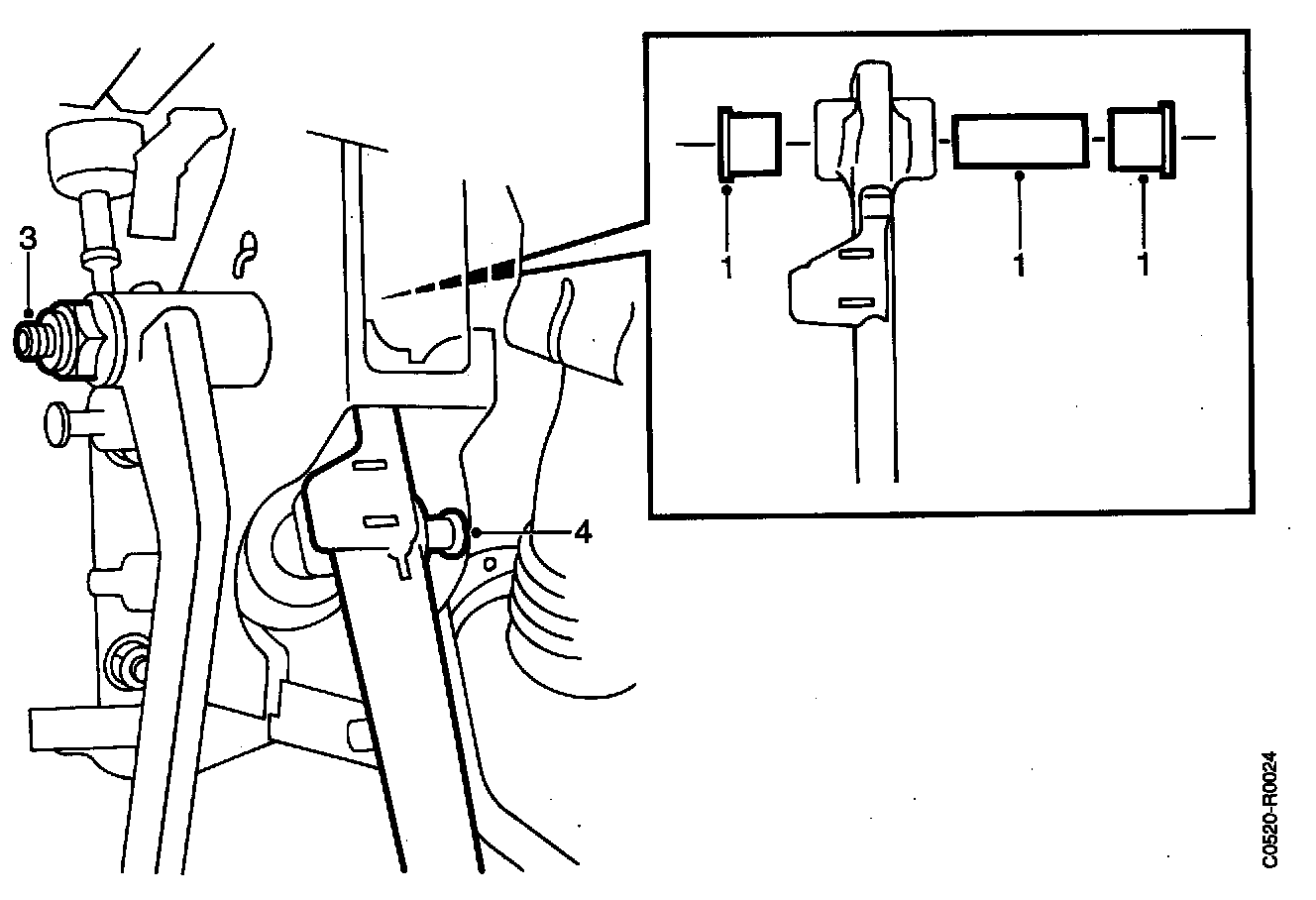

Installation





1. Install the plastic bushes and spacer sleeve in the pedal.
2. Install the return spring.
3. Position the pedal and install the pedal pivot bolt.
4. Install the clevis pin and circlip to the brake servo unit's pushrod.
5. Install the lower section of the dashboard.
