Warning Light, Does Not Come on

Symptom
The warning light does not come on when the ignition switch is turned to the Start position.

Action
If any of the warning lights malfunctions, carry out fault-tracing as follows.
ANTI LOCK
- The light and the wire to pin 52 can be checked as follows:

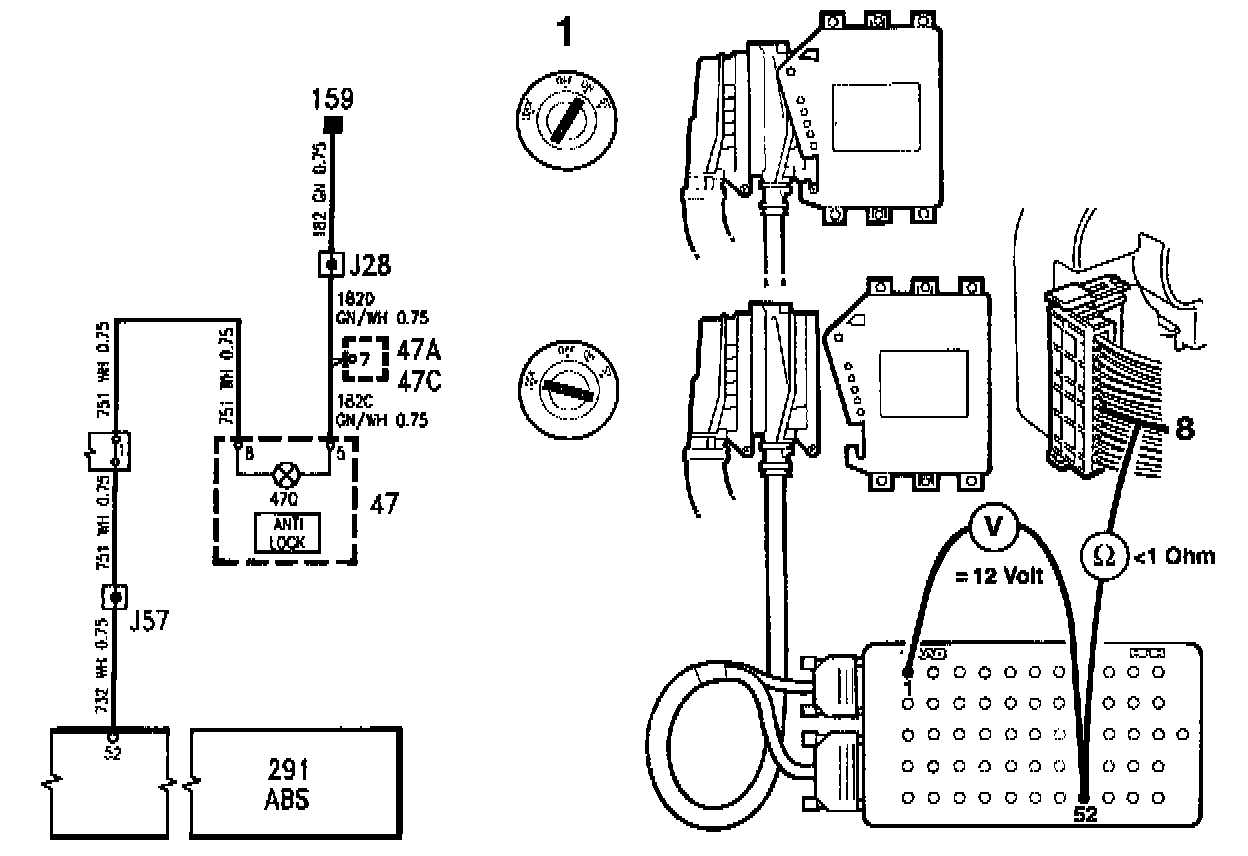

1. With the connector of the Electronic Control Unit (ECU) plugged in and the ignition switch in the Drive position, check that there is battery voltage at pin 52.
If not, check that the bulb is intact and also check the white wire between pins 52 and 8 of the main instrument display panel.

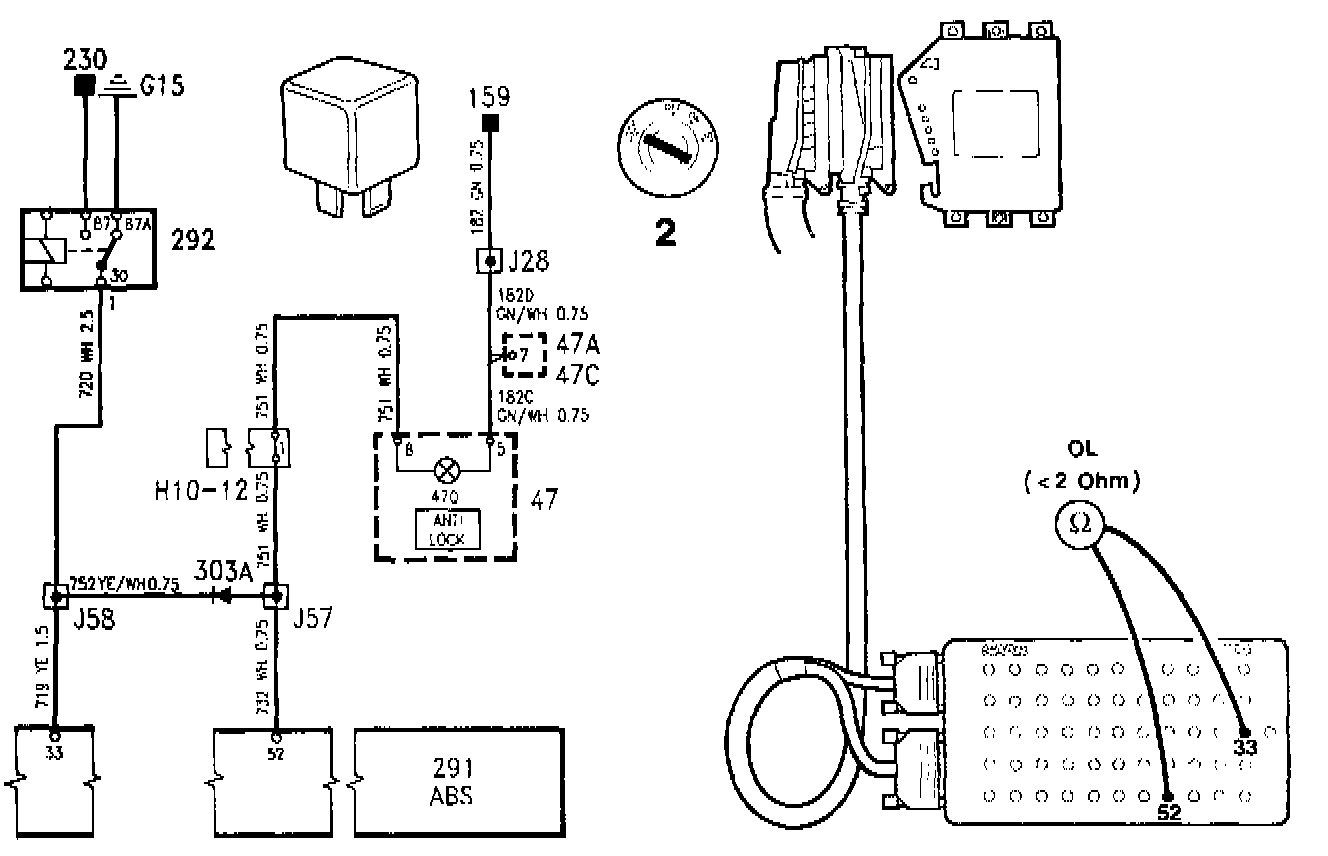

2. With the ignition turned off and with the ECU and main relay disconnected, check the circuit between pins 52 and 33.
Also check that the diode is non-conducting to pin 52.
