With Mark II ABS System

TC/ABS : Component Location:

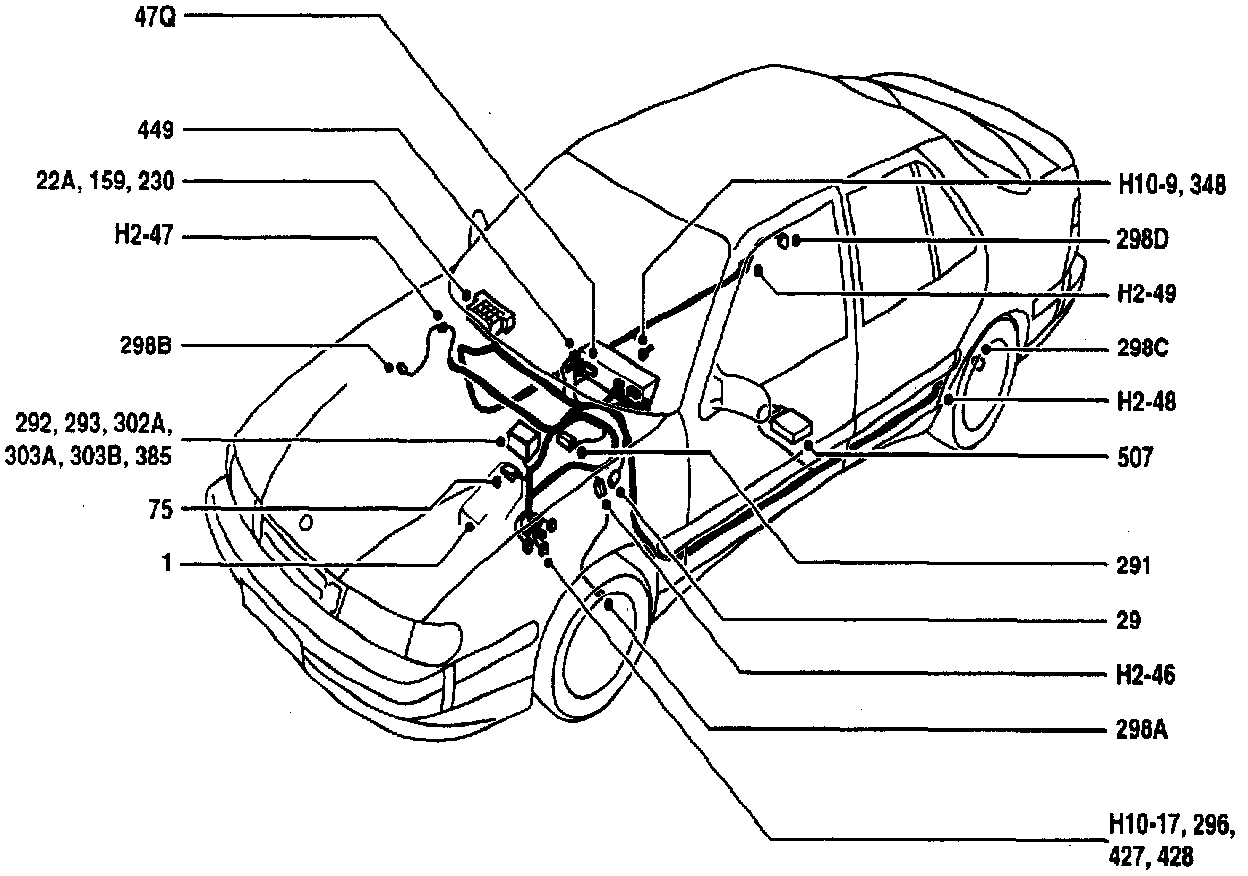

COMPONENT LOCATION VIEW

TC/ABS : Component ID:

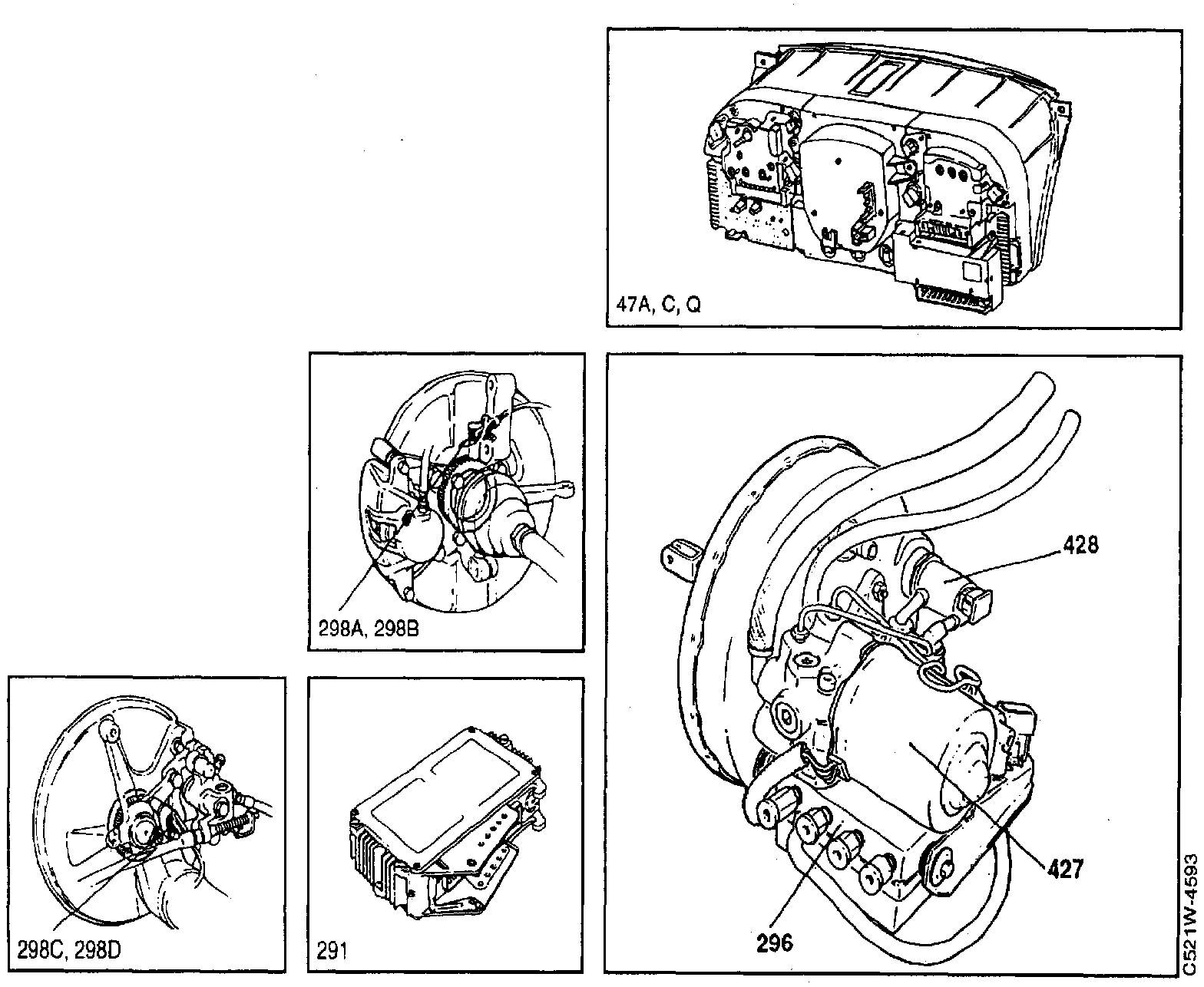

COMPONENT ID
1 Battery in the engine bay.
22A Fuse board behind the cover flap in the glove box.
29 Brake light switch beside the brake pedal.

In The Main Instrument Display Panel
47F Brake fluid level warning lamp
47Q ABS/ ABS-TCS warning lamp.
47X TCS (Antispinn) indicator lamp.
47Y TCS CTRL warning lamp.
75 Distribution block, battery positive, on the battery tray.
159 Distribution terminal (+15 circuit) in main fuse box behind the glove box.
230 Distribution terminal (+30 circuit) in main fuse box behind the glove box.
292 Main relay, ABS, in main fuse box behind the battery.
293 Pump relay, ABS, in main fuse box behind the battery.
on the hydraulic unit
294 ABS pressure switch.
295 ABS Main valve.
296 ABS valve block.
297 ABS hydraulic pump motor.
298A Wheel sensor, front left-hand, on the left-hand steering swivel member.
298B Wheel sensor, front right-hand, on the right-hand steering swivel member.
298C Wheel sensor, rear left-hand, on the left-hand rear wheel hub.
298D Wheel sensor, rear right-hand, on the right-hand rear wheel hub.
299 Brake fluid level sensor, ABS, on the hydraulic unit's brake fluid reservoir.
302A Fuse board, ABS, behind the battery.
303A/ Diode, ABS, under the relay board in the main fuse box behind
303B the battery.
348 Scan tool diagnostics data link connector under the right-hand
(H10-9) seat.
376 ETS control module, under left-hand front seat.
382 ABS-TC control module on the battery tray.
383 Valve block, ABS-TC, on the hydraulic unit.
385 Diode, ABS/TC, under the relay board in the main fuse box behind the battery
449 TCS ON/OFF switch in the dashboard.

2-Pin Connectors
H2-46 In the engine bay behind the bulkhead on the far left.
H2-47 In the engine bay behind the bulkhead on the far right.
H2-48 Under the rear seat on the left-hand side under the carpet.
H2-49 Under the rear seat on the right-hand side under the carpet.

Grounding Points
G8 Grounding point, on the reinforcing member under the left-hand loudspeaker grille.
G15 Grounding point, ABS, on the lefthand structural member beside the ABS control module.
G16 Grounding point on the left-hand structural member.
G24 Grounding point, right-hand front seat member.
