Pinout Values and Diagnostic Parameters

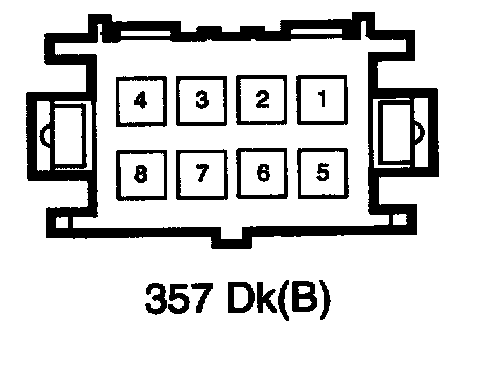

Measurement Rating, Electronic Control Module Connection M96

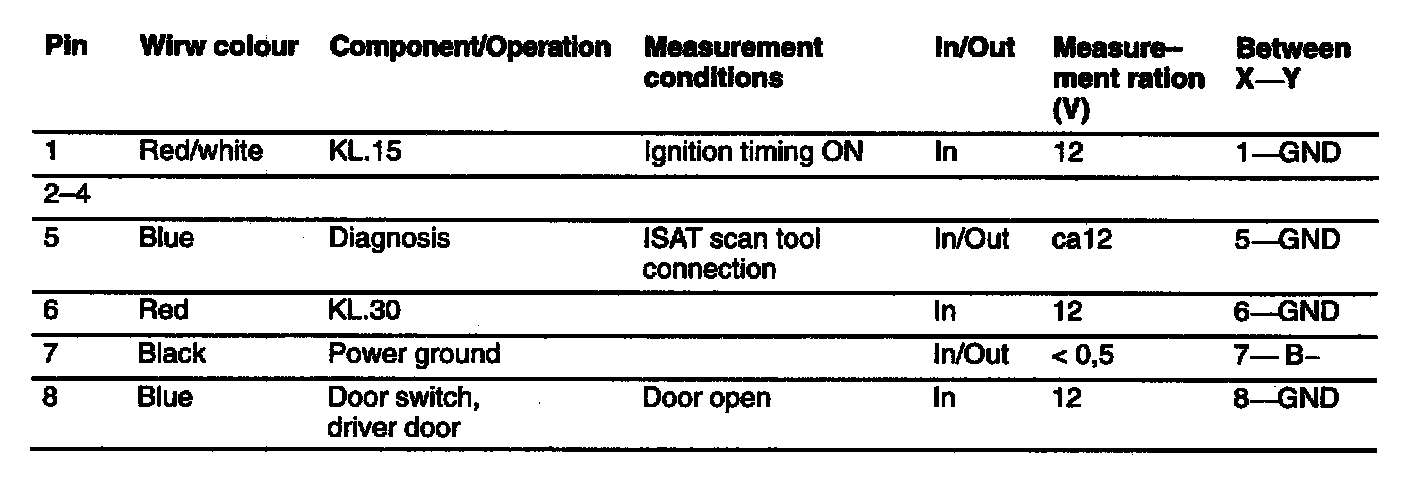

Connection A

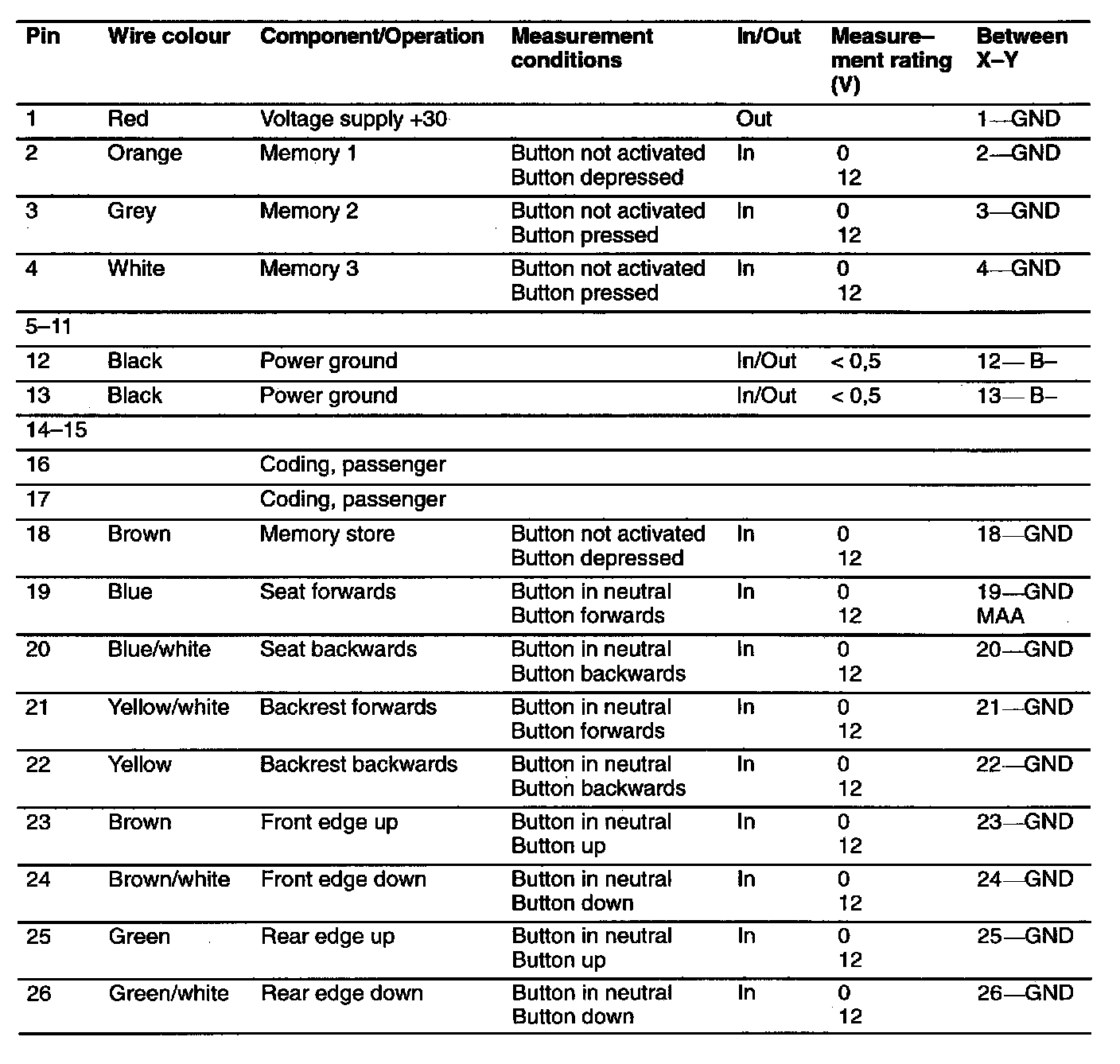

Connection B
