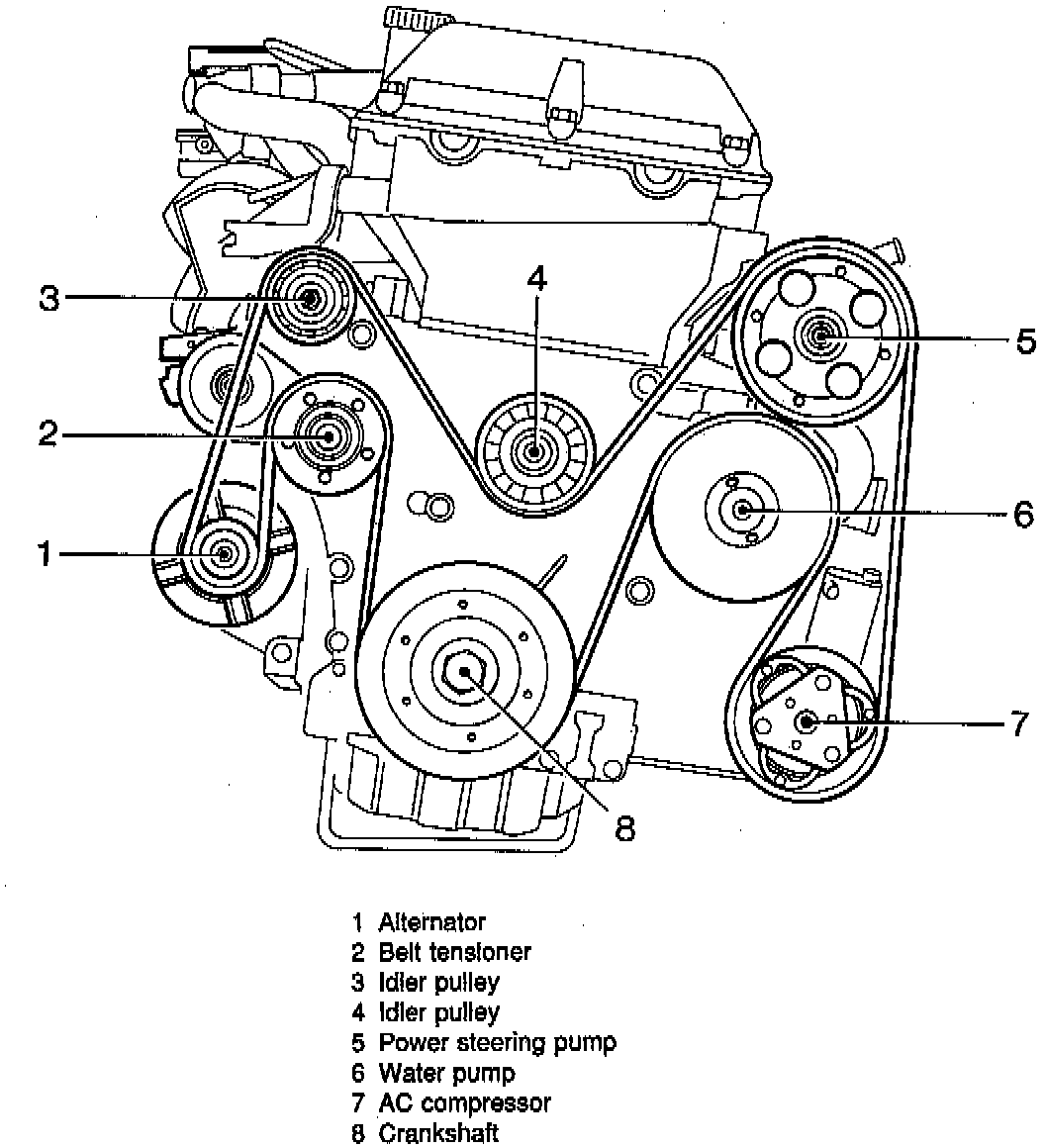

Drive Belt: Description and Operation

The engines have only one belt drive for all the auxiliaries.
The drive has an automatic, self-adjusting belt tensioner for simpler service and longer life.

The belt tensioner consists of a powerful spring which maintains belt tension via a belt pulley.
