Main Instrument Display Panel 2
>>
Testing Readings, Control Module Connections
>>

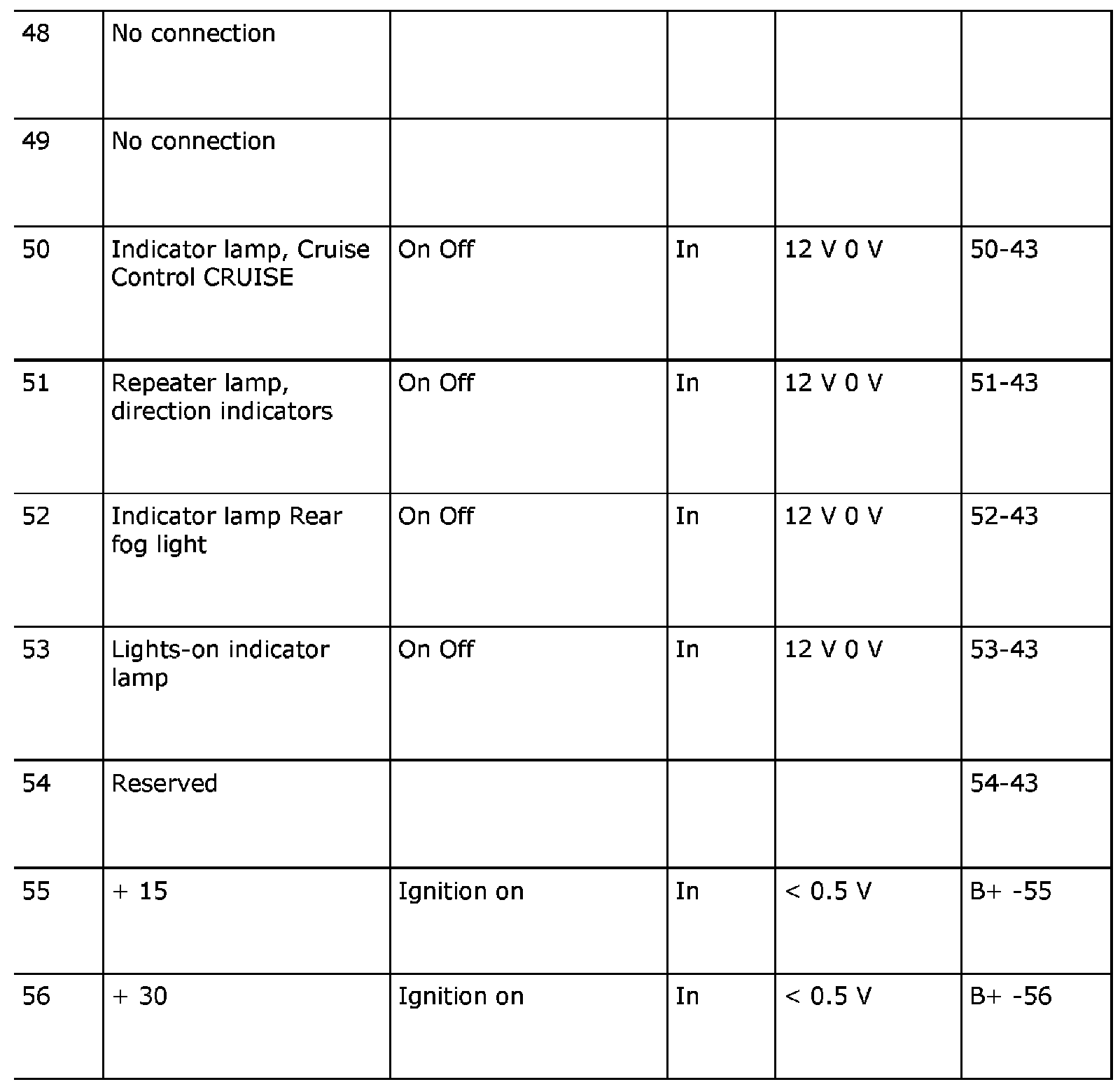

Test Readings, Pins 48 - 56
Test Readings, Pins 48 - 56
