Trailer Lamps: Locations

Pre Installed Trailer Wiring: Component Location:

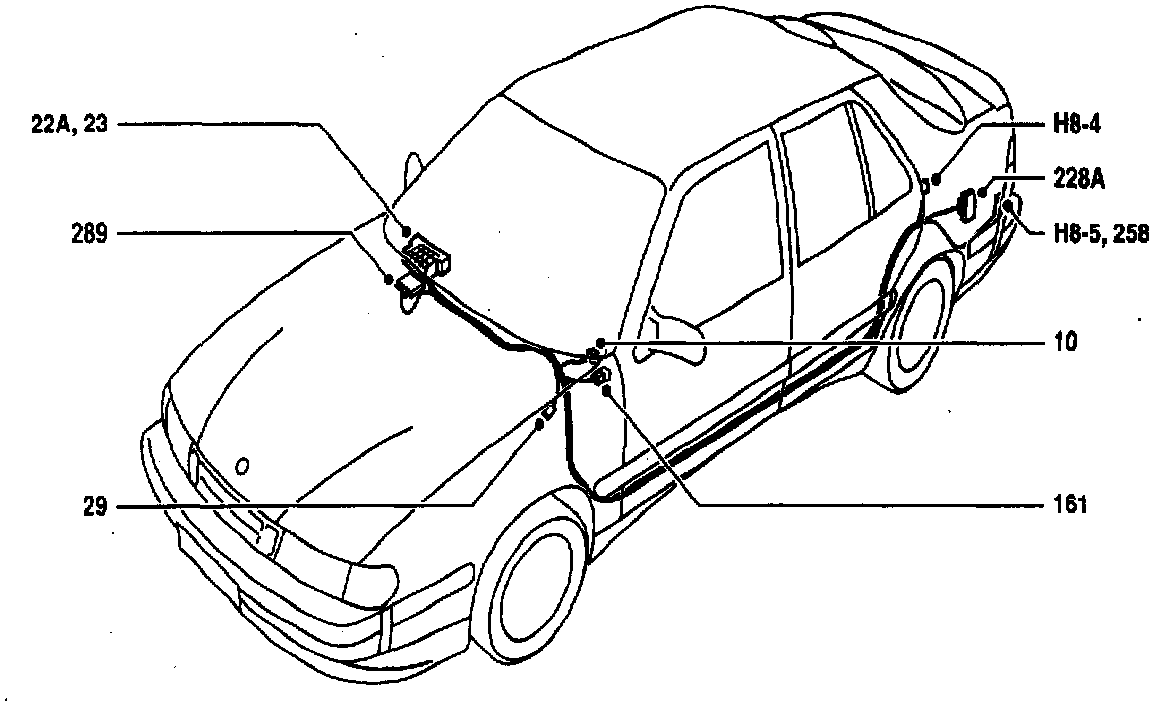

COMPONENT LOCATION VIEW

Pre Installed Trailer Wiring: Component ID:

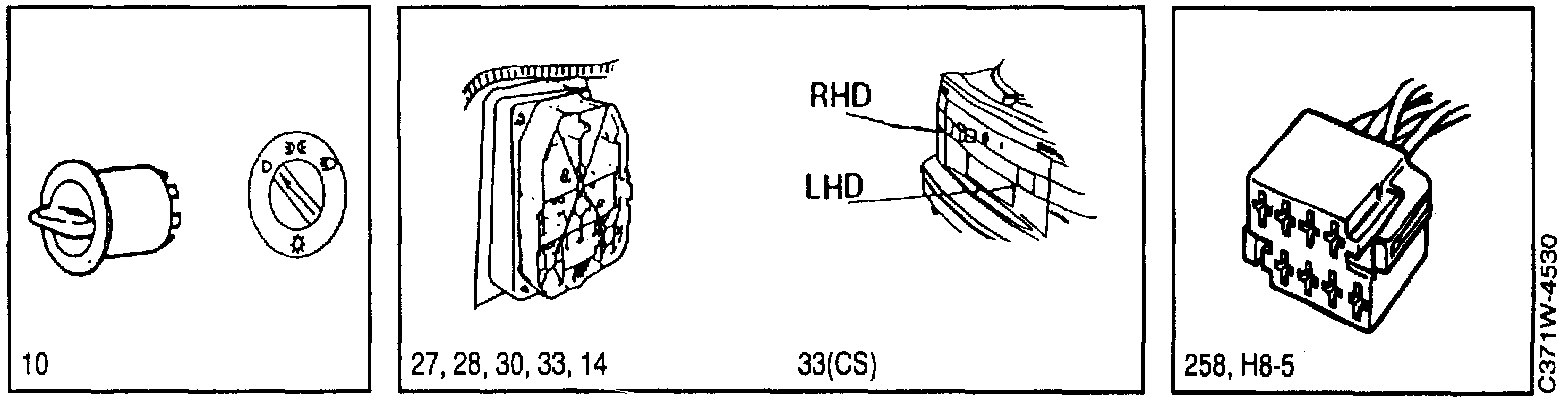

COMPONENT ID
10 Lights switch on dashboard between steering wheel and driver's door.
22A Fuse board behind the cover flap in the glove box.
23 Flasher relay in main fuse box behind the glove box.
29 Brake light switch beside the brake pedal.
161 Switch, rear fog light, between the steering wheel and driver's door.
228A Filament monitor, rear lamps, in luggage compartment on the left-hand side.
258 8-pin connector for trailer lighting, in luggage compartment below
(H8-5) the left-hand light cluster.
289 Control module, anti-theft alarm, under the dashboard on the right- hand side behind the knee shield.

8-Pin Connector
H8-4 By the left-hand rear wheel housing.
